DT466 Diesel Engine: The Navistar International Legend

THE INTERNATIONAL/NAVISTAR DT466

Legend! That’s a powerful word that might be used a little too often these days. When it comes to the DT466 diesel, though, it fits. Especially, when you consider it came from users in the field before International’s marketing department got hold of it. The DT466 legend crosses into the industrial, agricultural, and truck realms, but it was the medium-duty truck world where it made the biggest impact.

Early Days

Development of the International Harvester 300 and 400 series engines started in 1967. The prime mover for the project was the VP of the Construction Equipment Division of International Harvester, Bill Wallace, who saw a need for a new line of in-house designed and built engines. The Construction Equipment Division had its own engine section and that put them a little at odds with International’s main engine plant in Indianapolis. Reportedly, Wallace had an uphill struggle to get money allocated for the program but lobbied hard and eventually succeeded by expanding the idea to cover the other IH divisions, many of which needed a diesel upgrade.

The 300 and 400 lines are inexorably locked together, since they shared the same basic architecture, many parts and were built on the same tooling. The 300 line was more compact than the 400’s and shared a common bore of 3.875. It included the D312 (4.410-in stroke) and the D (Diesel, naturally aspirated) and DT (Diesel, Turbo) 360 (5.085-in stroke) diesels. The 400 line shared a 4.30-in bore and included the D and DT414 (4.75-in stroke), D and DT436 (5.00-in stroke) and the D and DT466 (5.35-in stroke). While the DT360 is a legend in its own right, we’ll save the details for another time.

Engineering

Design features of the 300 and 400 series engines included grey iron blocks set up for plateau-honed wet sleeves of cast iron with a high chrome content. Plateau honing was relatively new for 1971 but added a lot to the durability and longevity, plus ensured a rapid break-in. The induction-hardened, forged steel crankshafts were supported by seven main bearings. They were direct-injected, looking ahead to the ever-increasing limits being placed on smoke and emissions. They were thoroughly modern and built on new tooling in the Melrose Park, Illinois, plant that was the home of the Construction Equipment Division. When they came on the market, it was an, “in your FACE” moment from International to the diesel engine manufacturing market.

“THE DT466 WAS THE RIGHT ENGINE AT THE RIGHT TIME”

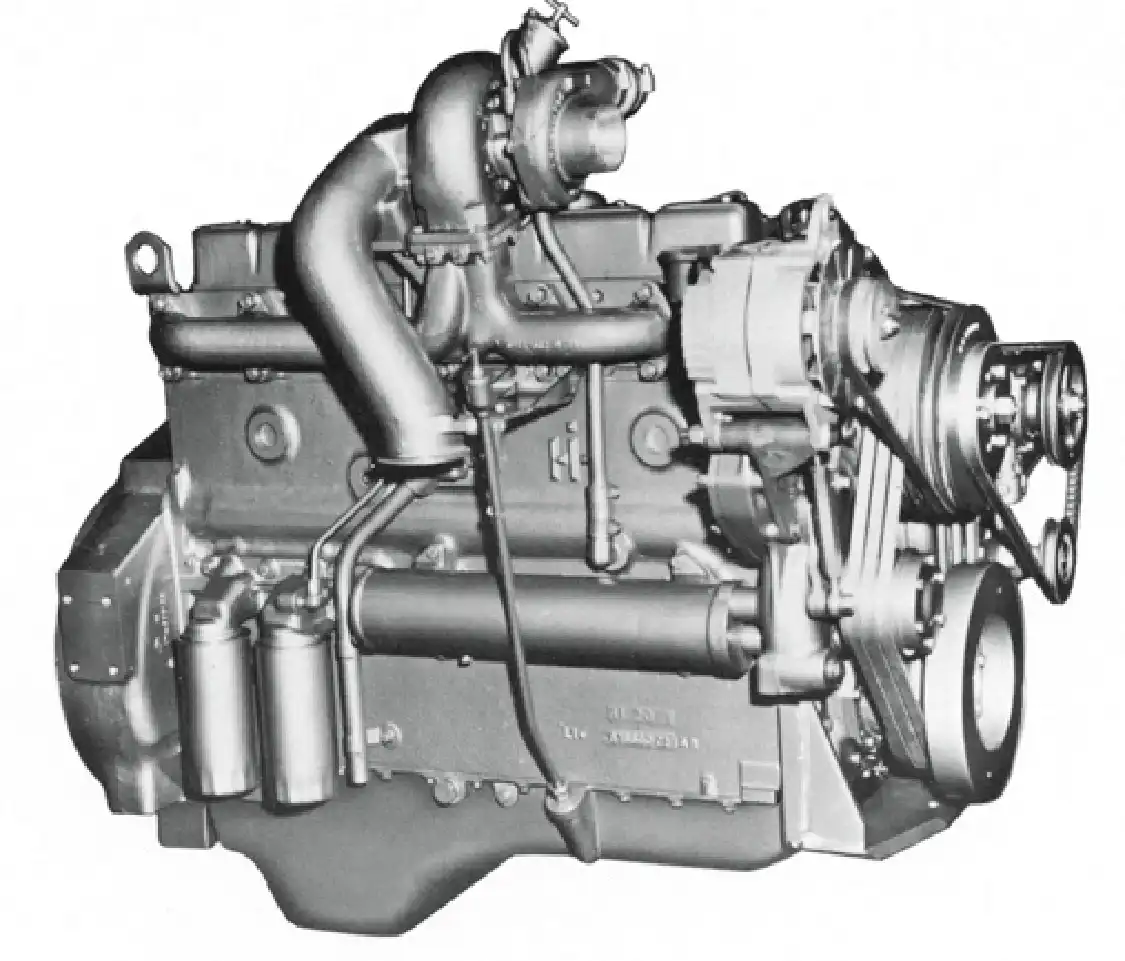

By the time the engines started production in 1971, the initial plan was for the 300 line and the 414 and 436 to be used mainly in the ag division, tractors and combines. The 466 was held back mostly for construction equipment, though that would soon change. Both naturally aspirated and turbo engines were offered, but Tom Lisak, who started as a test engineer on the 300/400 program and was later a Project Engineer, says the NA engines attracted little attention beyond the tractor market and few were built.

Back To Trucks

Plans for the DT466 soon turned to the truck market and after a $500,000 tooling investment, it became an option for the Fleetstar, starting with January 1975 production. Later in the year, it became available in the Cargostar (COE) and Paystar. The DT466 was added to the Loadstar options list in the summer of 1976 as a premium upgrade over the naturally aspirated D150, D170 and D190 9.0L V8 diesels. The DT466 was more powerful, economical and reliable than the big V8 diesels and it could be overhauled in chassis.

The medium-duty market had been evolving towards diesels but the “just-right” engine had not yet been offered to make much of a stir. International had been offering a range of in house diesels over the years, like the D301, D358, DV462 and DV550 (later known as the 9.0L after some updates). Others came from outside, including Perkins, Cat, Cummins and Detroit Diesel engines. The idea of offering a premium wetsleeved turbo-diesel in a medium duty line that could be overhauled in-chassis like a heavy-duty truck was a new one and IH hit paydirt with it. The DT466 soon became the engine to beat in the medium-duty arena.

Going back to tractors, the 414 and 436 found immediate homes in the International tractor lines. The D414 debuted in the 1971 966 tractor. The DT414 debuted in the 1066, while the DT436 appeared in the 1466 and the 4166 four-wheel drive. The DT466 first appeared in the 1973 4366 four-wheel drive tractor, a co-development of IH and Steiger. All three of these engines had a history of stellar service in the IH tractor lines, even a little past when the ag side of IH was sold off and became Case IH. International Harvester was broken up into its component parts, with the truck and engine sections becoming Navistar International.

New Ideas

The DT466 had a large number of upgrades before it evolved completely away from mechanical injection in 1997. There were so many designations and power ratings that we’d need half the magazine to cover them all, so we’ll stick to the most common. The original DT466 iteration was built in 1977 and had a AMBAC Model 100 rotary pump. The two common ratings were 185 and 210 hp in trucks. When the DT466B appeared in 1977, the earlier engine became the DT466A by default.

The DT466B emerged with some internal changes. One of them was a revised ring pack to reduce oil consumption using average quality oils. The compression ratio was bumped from 15.5:1 to 16.3:1 in the process, which was useful in cold starts for truck applications. Wider main and rod bearings were also added. Emissions controls entered the fray and the DTI466B (the “I” for intercooled) emissions certified engines for California 466B used an air to water intercooler. The DT466B and DTI466B still used the AMBAC 100 pump and the number of ratings expanded to span 160-210 hp.

In 1982, the DT466C was introduced. There were numerous small internal updates including larger diameter lifters and a higher-flow lubrication system. The injection pump changed to a Bosch MW inline and both turbo and turbo intercooled engines were offered. Two intercooled engines were offered in this line, the new air to air (DTA466C) and the precious DTI466C air to water system.

The original DT466 family underwent a major transformation for 1993 after several years of development. DT466PLN (NGD) was a major redo of the line. “NGD” stood for New Generation Diesel. The “PLN” in the designation stood for “Pump Line Nozzle,” which is a fancy, more technically correct name for a mechanically injected engine. Why the need to designate that? A new electro-hydraulic fuel injection system was about to debut.

The NGD PLN engines had a high mounted pump and a cast, squared off valve cover with notches for the injectors. They used either a Bosch P3000 or P7100 inline injection pump. In this era, 1994 specifically, the DT466 mechanically injected family would see the highest rated output of 275hp and 800 lb-ft. The NGD update was accompanied by a smaller DT408 variant (4.301 x 4.680-in bore and stroke) that replaced the DT360 and a larger I530 version (530ci, 4.59 x 5.35- in bore and stroke) was added. All three engines were almost indistinguishable visually from each other. The new engines were mechanical initially but were mostly phased out by 1995. There were small numbers of PLN engines as late as 1997. What replaced them?

Emissions standards hit the diesel industry very hard in the late ‘90s. Navistar International had earlier joined forces with Cat to develop Hydraulic Electric Unit Injectors (HEUI), which were made famous in the Navistar/Ford Power Strokes. As a result, in May of 1995, the DT466E was introduced, complete with a new head and HEUI, plus all the applicable NGD evolutions. In 2004, the G2 “Generation 2” injection system debuted, which was an improved and updated HEUI system. These morphed into the Maxx Force engines in 2006, but we aren’t going that far in this story.

The 300 and 400 Series, the DT466 in particular were solid engines. When introduced, they weren’t so far ahead of the technology curve to be glitchy but they were leaps ahead of the many legacy, old-school diesels still on the market. As a result, they started earning street cred immediately. More than anything, it was timing. The DT466 was the right engine at the right time. That it was so long lived, adaptable and upgradable gave it serious legs in the market and that’s why it’s descendants are still in production and so many DT466s are still earning their keep today. DW

SOURCES

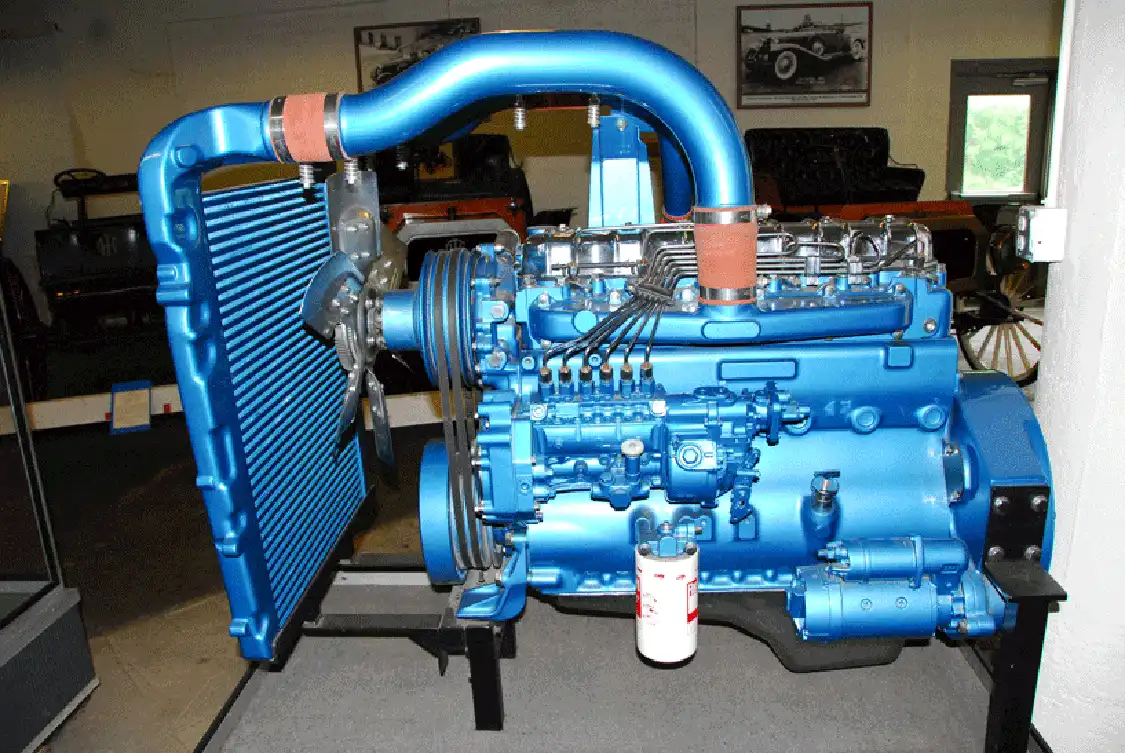

NATIONAL AUTOMOTIVE AND TRUCK MUSEUM
NATMUS.org

NAVISTAR
Navistar.com

SOUTHLAND INTERNATIONAL TRUCKS LTD.
SouthlandIT.com

---



FREQUENTLY ASKED QUESTIONS

How is the DT466 engine used in high-performance tractor pulling applications?

In the realm of high-performance tractor pulling, the DT466 engine plays a crucial role, especially in the elite Super Stock category. To meet the demands of this sport, these engines are extensively modified to handle extreme conditions. They are equipped with multiple turbochargers—sometimes up to four—to significantly increase airflow and boost levels up to an astonishing 300 psi. This setup enables the engine to produce over 4,000 horsepower, a feat necessary for competitive tractor pulling.

To sustain such outputs, specialized components such as massive P-pumps are utilized to deliver the required fuel volume. Moreover, water injection systems are commonly employed to manage engine temperatures and prevent detonation. These enhancements are critical as these tractors reach wheel speeds of up to 75 mph, propelling them down the track in spectacular fashion. The DT466’s adaptability and durability make it a favored choice among competitors aiming for top performance in the sport.



What is the potential for aftermarket modifications and performance enhancements for the DT466?

Unleashing the Power: Modifying the DT466 for Maximum Performance

When it comes to aftermarket modifications and performance enhancements, the DT466 engine offers remarkable potential. This powerhouse, initially designed for durability and dependability, can be transformed into a high-performance beast, commonly seen in the world of competitive tractor pulling.

1. Turbocharging for Extreme Power: Enthusiasts often push this engine to its limits by equipping it with up to four turbochargers. These setups can generate as much as 300 psi of boost, catapulting the engine’s output to over 4,000 horsepower. This level of modification is significant in competitive scenarios, where turbocharging plays a crucial role in maximizing performance.
2. Fuel and Air Management Upgrades: Massive fuel pumps, known as P-pumps, are commonly used to increase fuel delivery to match the engine’s elevated air intake, thanks to the turbochargers. This modification ensures efficient power delivery and optimizes engine performance under extreme conditions.
3. Cooling Solutions and Durability Enhancements: To manage the immense heat generated by these modifications, water injection systems are often employed. These systems lower combustion temperatures, enhancing the engine’s longevity while maintaining peak performance.
4. Wheel Speed Capabilities: In the realm of tractor pulling, the DT466 can achieve impressive wheel speeds, sometimes reaching 75 mph. This is a testament to the effective combination of engine modifications and enhanced durability components, maintaining stability under high stress.

In summary, the DT466 engine, with its robust build, becomes a formidable force in high-performance settings through a variety of aftermarket enhancements. From advanced turbocharging setups to sophisticated fuel management systems and innovative cooling solutions, the potential for modification is vast, making the DT466 a coveted engine among performance enthusiasts.



What design features contribute to the durability of the DT466’s forged-steel connecting rods?

Design Features Contributing to the Durability of the DT466’s Forged-Steel Connecting Rods

The DT466 engine’s connecting rods are renowned for their exceptional durability, attributed to several key design features:

1. Forged-Steel Construction: These rods are constructed from forged steel, a process that enhances their strength and load-bearing capacity. Forging aligns the metal’s grain structure, increasing its robustness and resistance to stress.
2. Fractured Cap Design: This unique design enhances the rod’s precision fit and increases its ability to handle stress. The fractured cap method offers a perfect mating surface between the connecting rod and its cap, maintaining structural integrity even under extreme conditions.
3. Overbuilt Engineering: True to the engine’s reputation for over-engineering, these rods have been designed to far exceed typical performance requirements. This overbuilt nature ensures they are nearly indestructible under typical operating conditions.

These design attributes combine to make the DT466’s connecting rods a critical component in achieving unfaltering durability, even in high-performance applications where engines operate at over 1,500 horsepower.



What characteristics make the DT466 cylinder head notably robust?

What Makes the DT466 Cylinder Head Notably Robust?

The DT466 cylinder head stands out for its remarkable durability and strength. Let’s explore the key characteristics that contribute to its robust nature:

• Weight and Material: At a hefty 250 pounds, this cylinder head is crafted from cast-iron. This material choice ensures durability and resilience, perfect for heavy-duty applications.
• Manufacturing Excellence: Its 2-valve version is produced at a renowned U.S. Foundry, while the more advanced 4-valve heads are produced in Brazil, showcasing a global commitment to quality.
• Advanced Design Features: Integrated ductile-iron rocker arms enhance its toughness, while hardened valve seats contribute to longevity under intense conditions.
• Secure Installation: The attachment of the cylinder head to the block involves a six-bolt per cylinder system, a design that ensures a steadfast and secure fit.

Overall, these components create a cylinder head that is exceptionally resilient, ready to meet the demands of rigorous engines.



What testing process did MaxxForce DT engines undergo before leaving the factory?

Before leaving the production facility, MaxxForce DT engines underwent a comprehensive testing process to ensure optimal performance. Each engine was rigorously evaluated on a dynamometer to simulate real-world conditions.

This testing journey began with a brief idle stage, where the engine’s performance at low RPMs was examined. This was followed by a demanding full-throttle test, designed to confirm the engine’s power capability and validate its specified power rating. The procedure concluded with a cool-down phase, allowing the engine to stabilize before it was approved for shipment.

By subjecting each engine to this thorough testing regimen, manufacturers aimed to deliver reliable and robust performance in every unit.



What role does the factory main cap girdle play in the DT466 engine’s design?

Understanding the Role of the Factory Main Cap Girdle in the DT466Engine

The DT466 engine relies on a robust design to ensure durability and performance. A key feature of this design is the use of the factory main cap girdle. This component plays a critical role in the structural integrity of the engine.

Enhanced Stability and Stress Distribution

The main cap girdle’s primary function is to link the engine’s main caps, which are responsible for holding the crankshaft securely within the engine block. By connecting these caps, the girdle evenly distributes stress across the entire assembly. This connection is particularly important in high-stress environments, allowing for more balanced force distribution throughout the engine.

Durability and Longevity

Constructed to handle the demands of long-term operation, the girdle contributes significantly to the engine’s reputation for durability. By mitigating the effects of stress concentration on individual main caps, it helps maintain the crankshaft’s alignment and reduces wear, extending the engine’s lifespan.

Integration with the Oil System

Another notable aspect is the girdle’s integration with the oil pan rail. This design not only aids in stress distribution but also reinforces the structural bond between components, ensuring optimal engine performance.

In summary, the factory main cap girdle in the DT466 engine enhances stability, distributes stress effectively, and supports the overall durability of the engine by tying key components together.



What is the significance of the DT466’s common bore size and head fasteners?

The DT466 engine series is renowned for its consistent bore size across various models over the years, including the later variants like the DT530 and MaxxForce series. This uniformity in bore size is significant because it allows for interchangeable components and simplifies the manufacturing process. It also aids in maintaining a consistent performance profile across different engine versions, making upgrades and repairs more straightforward.

Moreover, the DT466’s design features a robust head fastening system with six bolts per cylinder. This arrangement enhances the engine’s ability to handle high pressure and performance demands. According to experts in aftermarket enhancements like Hypermax Engineering, this setup can support up to 1,200 horsepower before encountering head gasket issues. The reliability of these head fasteners is a testament to the engine’s durability, making it a popular choice in applications that demand toughness and longevity.



What technological advancements did the DT466 introduce with its design?

Design features of the 300 and 400 series engines included grey iron blocks set up for plateau-honed wet sleeves of cast iron with a high chrome content. Plateau honing was relatively new for 1971 but added a lot to the durability and longevity, plus ensured a rapid break-in. The induction-hardened, forged steel crankshafts were supported by seven main bearings. They were direct-injected, looking ahead to the ever-increasing limits being placed on smoke and emissions. They were thoroughly modern and built on new tooling in the Melrose Park, Illinois, plant that was the home of the Construction Equipment Division.

What truly set these engines apart was the implementation of wet sleeve cylinder liners, a technology that distinguished them from many medium-duty engines of the era. These liners, made of ductile iron with a high chrome content, provided the kind of heavy-duty durability that was typically reserved for Class 8 engines or larger.

Key Technological Advancements:

• Durability and Serviceability: The wet sleeve design allowed for superior heat transfer, keeping the cylinders perfectly round. This feature was crucial for maintaining engine integrity under extreme conditions.
• Advanced Material Processes: The sleeves were both induction-hardened and plateau-honed, processes that greatly enhanced their durability and facilitated quicker repair and maintenance. Each cylinder bore was equipped with its own sleeve, enabling efficient in-field repairs and complete in-frame rebuilds when necessary.

By incorporating these advancements, the engines were not only robust but also adaptable to future emission standards. They exemplified forward-thinking design and engineering excellence, setting a new standard for medium-duty engine performance.



How does the design of the DT466 facilitate repairs and maintenance?

Each cylinder bore is equipped with its own sleeve, allowing for straightforward repairs and enabling complete in-frame rebuilds to be performed quickly, even in field conditions.



How does the DT466 handle heat transfer and maintain the shape of the cylinders?

The sleeves are designed with their external side exposed to engine coolant, ensuring efficient heat transfer and maintaining the precise roundness of the cylinder.



What materials and processes were used in the DT466 to enhance durability?

The engine utilized ductile-iron liners with a high chrome content, which were both induction-hardened and plateau-honed, enhancing their durability and serviceability.



What sets the DT466 apart from other engines of its time?

The DT466 distinguished itself by incorporating wet sleeve cylinder liners, a feature that provided it with heavy-duty durability uncommon in medium-duty engines and typically found in much larger Class 8 engines.



How did the weight and design of the DT466 change over time to include emissions control devices?

The DT466 had a large number of upgrades before it evolved completely away from mechanical injection in 1997. There were so many designations and power ratings that we’d need half the magazine to cover them all, so we’ll stick to the most common. The original DT466 iteration was built in 1977 and had an AMBAC Model 100 rotary pump. The two common ratings were 185 and 210 hp in trucks. When the DT466B appeared in 1977, the earlier engine became the DT466A by default.

The DT466B emerged with some internal changes. One of them was a revised ring pack to reduce oil consumption using average quality oils. The compression ratio was bumped from 15.5:1 to 16.3:1 in the process, which was useful in cold starts for truck applications. Wider main and rod bearings were also added. Emissions controls entered the fray, and the DTI466B (the “I” for intercooled) emissions certified engines for California 466B used an air-to-water intercooler. The DT466B and DTI466B still used the AMBAC 100 pump and the number of ratings expanded to span 160-210 hp.

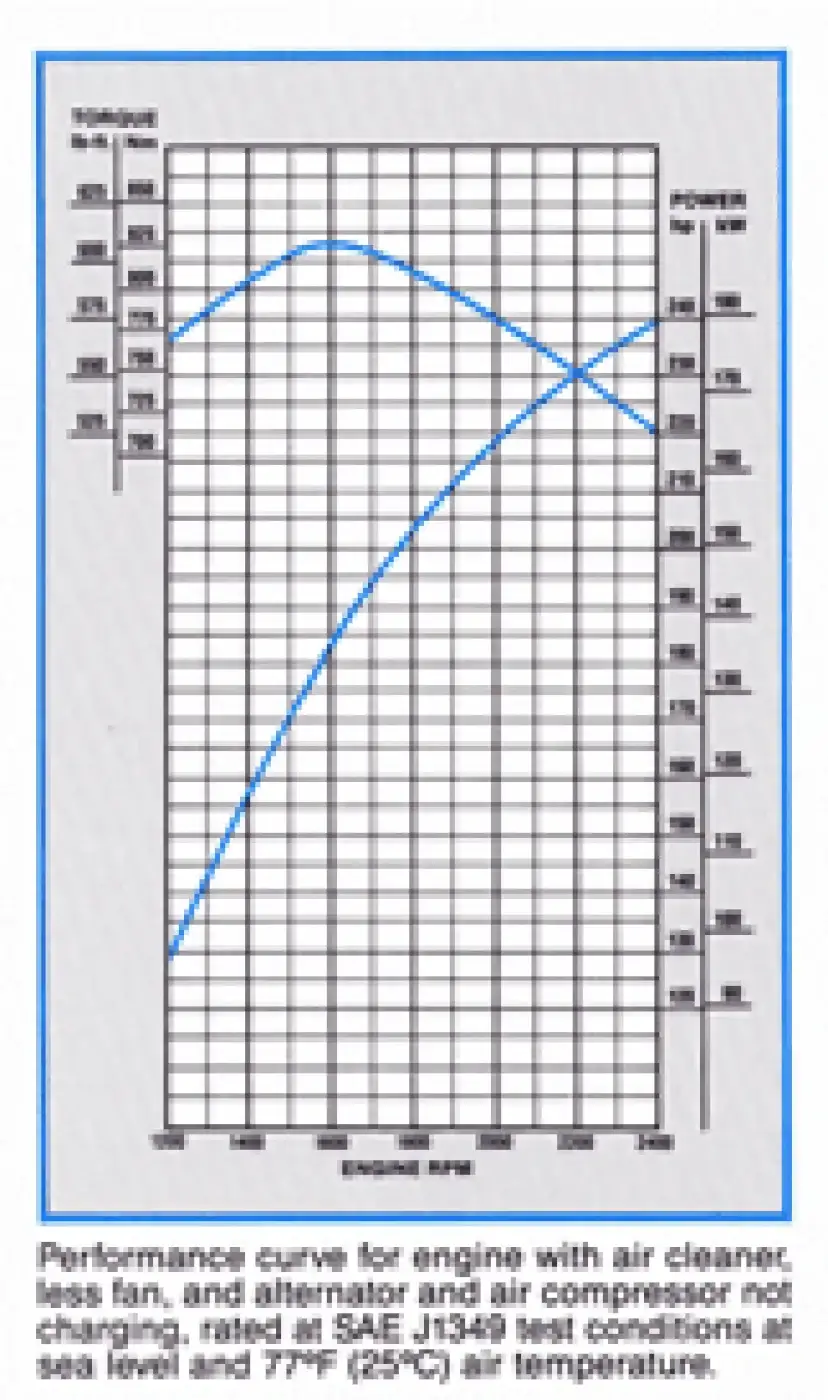

This is what the power and torque graph looked like for a 1974 era DT466 engine used in construction equipment. This engine was rated for 210hp at 2800 rpm and 468 lb-ft at rpm up to 10,000 feet. Compression ratio was 15.5:1 and the engine weighed in at 1,477 lb. An AMBAC 100 pump was used with a TO4 turbo. By 1987, a 40-stated DTA466C could be rated at 240hp at 2400 and 609 lb-ft at 1600. This engine used a Bosch MW pump and a TO4 turbo. Water pump flow was bumped up to 83 GPM vs. 72 GPM on the earlier engines.

In 1982, the DT466C was introduced. There were numerous small internal updates including larger diameter lifters and a higher-flow lubrication system. The injection pump changed to a Bosch MW inline, and both turbo and turbo intercooled engines were offered. Two intercooled engines were offered in this line, the new air-to-air (DTA466C) and the previous DTI466C air-to-water system.

The original DT466 family underwent a major transformation for 1993 after several years of development. DT466PLN (NGD) was a major redo of the line. “NGD” stood for New Generation Diesel. The “PLN” in the designation stood for “Pump Line Nozzle,” which is a fancy, more technically correct name for a mechanically injected engine. Why the need to designate that? A new electro-hydraulic fuel injection system was about to debut.

The ’93-97 New Generation Diesels were the last upgrade in which mechanical injection appeared. The engines in this era had “PLN” after the designation. The key feature is the high mounted injection pump and it appeared in the DT408PLN, DT466PLN, and I530PLN. The engine-driven compressor is another feature. The injection pumps were a mix of Bosch P-3000 and P-7100.

The NGD PLN engines had a high mounted pump and a cast, squared-off valve cover with notches for the injectors. They used either a Bosch P3000 or P7100 inline injection pump. In this era, 1994 specifically, the DT466 mechanically injected family would see the highest rated output of 275hp and 800 lb-ft. The NGD update was accompanied by a smaller DT408 variant (4.301 x 4.680-in bore and stroke) that replaced the DT360, and a larger I530 version (530ci, 4.59 x 5.35-in bore and stroke) was added. All three engines were almost indistinguishable visually from each other. The new engines were mechanical initially but were mostly phased out by 1995. There were small numbers of PLN engines as late as 1997. What replaced them?

Weight and Emissions Evolution

Old-school versions of the DT466 tipped the scales at 1,425 pounds (fully dressed yet dry), while later versions of the MaxxForce DT variety—which were equipped with emissions control devices and sometimes even two turbochargers—could weigh as much as 1,900 pounds. This increase in weight reflects the significant design changes aimed at meeting stricter emissions standards.

Emissions standards hit the diesel industry very hard in the late ‘90s. Navistar International had earlier joined forces with Cat to develop Hydraulic Electric Unit Injectors (HEUI), which were made famous in the Navistar/Ford Power Strokes. As a result, in May of 1995, the DT466E was introduced, complete with a new head and HEUI, plus all the applicable NGD evolutions. In 2004, the G2 “Generation 2” injection system debuted, which was an improved and updated HEUI system. These morphed into the Maxx Force engines in 2006, but we aren’t going that far in this story.

The DT466E had a HEUI injection system like that used on the Ford Power Stroke engine. The lower end featured all the upgrades introduced for the DT466P mechanically injected engines, but the front cover and head were new. Common output ranged from about 195hp up to 250hp.



What design changes were made to accommodate emissions controls?

To accommodate emissions controls, later versions of the DT466 engine were equipped with specialized emissions control devices. In some instances, these updates included the addition of two turbochargers, indicating significant design modifications to meet regulatory standards.



How did the weight of the DT466 change over time?

The weight of the DT466 engine increased from 1,425 pounds in its older versions to as much as 1,900 pounds in later models. These later models included additional components like emissions control devices and sometimes two turbochargers, contributing to the weight increase.



How do wet sleeve cylinder liners affect the DT466 engine’s performance and serviceability?

Design features of the 300 and 400 series engines included grey iron blocks set up for plateau-honed wet sleeves of cast iron with a high chrome content. Plateau honing was relatively new for 1971 but added a lot to the durability and longevity, plus ensured a rapid break-in.

What set these engines apart, particularly the DT466, was the innovative use of wet sleeve cylinder liners. These ductile-iron liners offered a level of heavy-duty durability and serviceability typically reserved for much larger engines. The high chrome content not only contributed to the strength of the liners but also ensured consistent performance under demanding conditions.

• Consistent Heat Transfer: The external side of each sleeve is exposed to engine coolant, providing efficient heat transfer. This design keeps the cylinder perfectly round, a critical factor for maintaining optimal engine performance.
• Enhanced Durability: Each sleeve undergoes induction-hardening and plateau honing. These processes significantly enhance the durability and longevity of the engine, ensuring it can withstand the rigors of heavy-duty use.
• Ease of Maintenance: With each bore fitted with its own sleeve, cylinder repairs and complete in-frame rebuilds can be conducted swiftly. This feature makes maintenance more manageable, even allowing for repairs to be performed in the field when necessary.

By combining these advanced features, the DT466 engine exemplifies a blend of innovation and practicality, offering both exceptional performance and ease of serviceability.



How does the DT466’s forged-steel, induction-hardened crankshaft contribute to its durability?

Design features of the 300 and 400 series engines included grey iron blocks set up for plateau-honed wet sleeves of cast iron with a high chrome content. Plateau honing was relatively new for 1971 but added a lot to the durability and longevity, plus ensured a rapid break-in.

The induction-hardened, forged steel crankshafts were supported by seven main bearings. This advanced construction process involved treating the journals and fillets to induction hardening, significantly improving fatigue and wear resistance. Such enhancements ensured these crankshafts could withstand the demands of heavy-duty use, contributing to the engine’s long lifespan.

Precision and Support: To ensure optimal performance, the main bearing surfaces underwent line-boring. This meticulous process allowed the crankshaft to spin as true as possible, reducing wear over time. The crankshaft’s support by seven main bearings, which increased in size with subsequent upgrades, further exemplified the engine’s robust design.

They were direct-injected, looking ahead to the ever-increasing limits being placed on smoke and emissions. They were thoroughly modern and built on new tooling in the Melrose Park, Illinois, plant that was the home of the Construction Equipment Division. When they came on the market, it was an, “in your FACE” moment from International to the diesel engine manufacturing market.



How does the design evolve over time to improve durability?

Over time, the design of the engine sees an increase in the size of the main bearings, reflecting a commitment to improving support and enhancing the overall durability of the platform with each upgrade.



What measures ensure precision in the crankshaft’s operation?

Precision in the crankshaft’s operation is achieved through a line-boring process on the main bearing surfaces, which ensures the crankshaft spins accurately and minimizes wear.



How does the induction hardening process affect durability?

Induction hardening enhances the durability of the crankshaft by significantly improving its resistance to fatigue and wear, ensuring it withstands the rigors of operation over time.



How did the bore and stroke change in different generations of the DT466?

The 300 line was more compact than the 400’s and shared a common bore of 3.875 inches. It included the D312 (4.410-in stroke) and the D (Diesel, naturally aspirated) and DT (Diesel, Turbo) 360 (5.085-in stroke) diesels.

The 400 line, on the other hand, shared a 4.30-inch bore and included the D and DT414 (4.75-in stroke), D and DT436 (5.00-in stroke), and the D and DT466 (5.35-in stroke). While the DT360 is a legend in its own right, we’ll save the details for another time.

In the case of the DT466, many aspects of its design remained consistent throughout its remarkable near-half-century production run. A standout feature was its deep-skirt block, cast from gray iron, which alone weighs 400 pounds. The bulkhead sections and main bearing surfaces are notably robust.

What did evolve over the generations was the bore and stroke. Early versions of the DT466 had a 4.30-inch bore and a 5.35-inch stroke. As time went on, later generations adopted a slightly different configuration with a 4.59-inch bore and a 4.68-inch stroke. This evolution not only marked a technical advancement but also positioned the DT466 as the largest in its series, initially offering more substantial displacement compared to its 414 ci and 436 ci counterparts.

These earlier engines shared the same block and cylinder bore size but had shorter strokes—4.75-inch and 5.00-inch, respectively—resulting in their slightly smaller displacements. Both the 414 and 436 engines made their debut in iconic tractors, such as the IH 966, 1066, and 1466, cementing their place in agricultural history.



What changes occurred in the DT466 during its production run?

While the deep-skirt block and robust design remained, the primary change over time was in the bore and stroke dimensions, which evolved to meet different performance requirements.



What aspects of the DT466’s design remained consistent throughout its production?

The engine maintained its deep-skirt block design, featuring massive bulkhead sections and main bearing surfaces, contributing to its durability.



What historical context is there for the DT466’s development and its related engines?

The DT466 was part of International’s engine lineup and shared its block design with the 414 and 436 engines, which were used in IH 966, 1066, and 1466 tractors.



How did the DT466 compare to other engines in the 400 series in terms of bore and stroke?

The DT466 was the largest in the 400 series. It shared the block and cylinder bore size with the 414 ci and 436 ci engines, but the latter had shorter strokes, leading to smaller displacements.



What were the bore and stroke dimensions for different generations of the DT466?

The early DT466 engines featured a bore of 4.30 inches and a stroke of 5.35 inches. In later generations, the dimensions changed to a 4.59-inch bore and a 4.68-inch stroke.



What are the key design features of the DT466’s deep-skirt, cast-iron block?

Design features of the 300 and 400 series engines included grey iron blocks set up for plateau-honed wet sleeves of cast iron with a high chrome content. Plateau honing was relatively new for 1971 but added a lot to the durability and longevity, plus ensured a rapid break-in. The induction-hardened, forged steel crankshafts were supported by seven main bearings. They were direct-injected, looking ahead to the ever-increasing limits being placed on smoke and emissions. They were thoroughly modern and built on new tooling in the Melrose Park, Illinois, plant that was the home of the Construction Equipment Division.

Deep-Skirt, Cast-Iron Block

The DT466, a standout in this series, showcases its engineering prowess through its deep-skirt block design. Cast from robust gray iron, the crankcase alone tips the scales at 400 pounds. This weight underscores the engine’s durability, with massive bulkhead sections and main bearing surfaces providing exceptional support and stability.

Bore and Stroke Evolution

A critical aspect of the DT466’s design evolution is its bore and stroke. Initial models boasted a 4.30-inch bore and 5.35-inch stroke, evolving in later generations to a 4.59-inch x 4.68-inch configuration. This adaptability highlights the engine’s forward-thinking design, ensuring it remained competitive and efficient over its long production run.

Versatility Across Models

The DT466’s block served as the foundation for other models in the 400 series line, including the 414 and 436 engines. These variants shared the same block and cylinder bore size but featured shorter strokes (4.75-inch and 5.00-inch, respectively), resulting in slightly smaller displacements. This versatility made them ideal for diverse applications, such as powering iconic tractors like the IH 966, 1066, and 1466.



During what years was the DT466 engine produced?

The DT466 engine was manufactured from 1994 through 2006.



What are the key specifications of the MaxxForce DT engine?

Key Specifications of the MaxxForce DT Engine

The MaxxForce DT engine, originally known as the DT466, stands out for its robust features and performance. Here’s what you need to know:

• Engine Configuration: This engine boasts an inline-6 setup with wet sleeves, which enhances durability and facilitates maintenance.
• Performance: It delivers impressive power and torque, reaching up to 300 horsepower at 2,200 revolutions per minute (rpm) and up to 860 pound-feet of torque at 1,300 rpm.
• Fuel Injection: The engine operates with direct injection, a method that helps improve fuel efficiency and performance.
• Displacement & Dimensions: With a displacement of 7.6 liters or 466 cubic inches, the engine features a cylinder bore of 4.59 inches and a piston stroke of 4.68 inches.
• Valvetrain: Equipped with an overhead valve design, it includes four valves per cylinder, contributing to better airflow and combustion efficiency.
• Production Period: This engine was in production from 1994 until 2006, marking over a decade of reliable performance in various applications.

These specifications highlight why the MaxxForce DT engine is renowned for its balance of power, efficiency, and reliability.



How does the DT466 engine perform in terms of longevity and reliability?

Design features of the 300 and 400 series engines included grey iron blocks set up for plateau-honed wet sleeves of cast iron with a high chrome content. Plateau honing was relatively new for 1971 but added a lot to the durability and longevity, plus ensured a rapid break-in.

What sets these engines apart, particularly the DT466, is its reputation for longevity, performance, and reliability, reinforced by more than 25 years of production. This longstanding track record speaks volumes about its consistent performance and dependability in various demanding applications.

The innovative use of wet sleeve cylinder liners in the DT466 further enhances its reliability. These ductile-iron liners offer a level of heavy-duty durability and serviceability typically reserved for much larger engines. The high chrome content not only contributes to the strength of the liners but also ensures consistent performance under demanding conditions.

• Consistent Heat Transfer: The external side of each sleeve is exposed to engine coolant, providing efficient heat transfer. This design keeps the cylinder perfectly round, a critical factor for maintaining optimal engine performance.
• Enhanced Durability: Each sleeve undergoes induction-hardening and plateau honing. These processes significantly enhance the durability and longevity of the engine, ensuring it can withstand the rigors of heavy-duty use.
• Ease of Maintenance: With each bore fitted with its own sleeve, cylinder repairs and complete in-frame rebuilds can be conducted swiftly. This feature makes maintenance more manageable, even allowing for repairs to be performed in the field when necessary.

Overall, the DT466 stands out not only for its advanced engineering but also for its proven ability to deliver reliable performance over decades, making it a preferred choice for those who prioritize longevity and dependability in an engine.



How long has the engine been in production?

The engine has been in production for over 25 years, indicating its enduring success and reliability in the market.



What is the overall reputation of the engine?

The engine is highly regarded for its longevity, performance, and reliability, showcasing a strong track record in these areas.



What makes the DT466 engine considered a “legend”?

The DT466 was part of International’s engine lineup and shared its block design with the 414 and 436 engines, which were used in IH 966, 1066, and 1466 tractors. Known for its robust endurance and impressive performance, the DT466 became a legend among the DT engine series. This reputation was built on its ability to withstand harsh conditions while delivering consistent power and reliability.

Farmers and industry professionals alike appreciated the DT466 for its longevity and capability, making it a preferred choice for demanding applications. Its legacy is not just in its technical specifications but also in the real-world performance that has stood the test of time.



What attributes contribute to the DT466 engine’s esteemed status?

Its reputation for durability and high performance are key factors that contribute to its esteemed status among engines in the DT series.



Why is the DT466 engine considered legendary?

The DT466 engine has earned its legendary status due to its remarkable endurance and reliable performance over the years.



What are the technical specifications of the DT466 engine, such as displacement and configuration?

“These earlier engines shared the same block and cylinder bore size but had shorter strokes—4.75-inch and 5.00-inch, respectively—resulting in their slightly smaller displacements. Both the 414 and 436 engines made their debut in iconic tractors, such as the IH 966, 1066, and 1466, cementing their place in agricultural history.

Technical Specifications of the DT466 Engine

• Configuration: Inline-6 wet-sleeved design, known for its robustness and reliability.
• Displacement: 7.6 liters, equivalent to 466 cubic inches, offering substantial power for various applications.
• Cylinder Bore and Stroke: The early DT466 engines featured a bore of 4.30 inches and a stroke of 5.35 inches. In later generations, these dimensions evolved to a 4.59-inch bore and a 4.68-inch stroke.
• Performance: Capable of producing up to 300 hp at 2,200 rpm and delivering torque up to 860 lb-ft at 1,300 rpm.
• Injection Type: Utilized direct injection for efficient fuel delivery.
• Valvetrain: OHV design with 4 valves per cylinder, ensuring effective airflow and performance.
• Production Timeline: Manufactured from 1994 to 2006, the engine maintained its deep-skirt block design, featuring massive bulkhead sections and main bearing surfaces, contributing to its durability.

Evolution and Historical Context

• Design Consistency: While the deep-skirt block and robust design remained consistent, the primary changes over time were in the bore and stroke dimensions, which evolved to meet different performance requirements.
• Historical Significance: The DT466 was part of International’s engine lineup and shared its block design with the 414 and 436 engines, which were used in IH 966, 1066, and 1466 tractors. This shared architecture underlines the engine’s role in agricultural development.
• Comparison with Other Engines: The DT466 was the largest in the 400 series. It shared the block and cylinder bore size with the 414 ci and 436 ci engines, but the latter had shorter strokes, leading to smaller displacements.

By blending a detailed technical overview with historical insights, we can appreciate not only the engineering prowess but also the historical impact of the DT466 engine and its related models.”



During what years was the engine produced?

The engine was produced from 1994 to 2006.



How is the engine’s valvetrain designed?

The engine uses an OHV design with 4 valves per cylinder.



What are the measurements for the cylinder bore and piston stroke?

The cylinder bore measures 4.59 inches, and the piston stroke is 4.68 inches.



What is the engine’s displacement?

The displacement of the engine is 7.6 liters, equivalent to 466 cubic inches.



What type of fuel injection does the engine use?

The engine utilizes direct fuel injection.



What are the engine’s horsepower and torque specifications?

It can produce up to 300 horsepower at 2,200 rpm and up to 860 lb-ft of torque at 1,300 rpm.



What is the engine’s configuration?

The engine features an inline-6 wet-sleeved configuration.



Who manufactured the engine and what was it called?

The engine was manufactured by International Navistar and was known as the MaxxForce DT, previously called the DT466.



What is the history of the DT466 engine?

What historical context is there for the DT466’s development and its related engines?

The DT466 was part of International’s engine lineup and shared its block design with the 414 and 436 engines, which were used in IH 966, 1066, and 1466 tractors. Tracing back to the late 1970s, the DT466 engine was initially integrated into International Harvester’s S-Series truck platform. This was a pivotal period that laid the foundation for its future prominence.

In 1984, a significant development occurred with the introduction of the International Navistar variation, which drew considerable attention and respect from fleets nationwide. This version of the engine quickly earned the nickname “The Legend,” reflecting its robust performance and reliability.

Today, the legacy of the DT466 continues, as it is still produced under the model designation “MaxxForce DT.” This enduring presence in the industry underscores the engine’s reputation as a durable and dependable powerhouse.

Thus, the DT466’s rich history is marked by technical innovation and widespread acclaim, solidifying its place as a cornerstone in diesel engine technology.



Is the DT466 still in production today, and under what name?

Yes, the DT466 is still being produced today under the model designation “MaxxForce DT” by International Navistar.



What nickname has been given to the DT466, and why?

The engine is affectionately called “The Legend” due to its performance and storied legacy.



How is the DT466 viewed in the industry?

The DT466 is well-regarded and has gained significant respect and attention from fleets nationwide.



What platforms or vehicles initially used the DT466?

Initially, the DT466 was used in the S-Series truck platform by International Harvester.



When was the DT466 first introduced?

The DT466 was first introduced in the late 1970s, making its debut in a specific line of trucks.



What types of vehicles commonly use DT series engines?

What historical context is there for the DT466’s development and its related engines?

The DT466 was part of International’s engine lineup and shared its block design with the 414 and 436 engines, which were used in IH 966, 1066, and 1466 tractors.

In addition to its agricultural roots, the DT series engines found their way into a variety of vehicle applications, showcasing their versatility and reliability. These engines are commonly used in medium-duty applications, such as buses and box trucks—particularly those popular for moving. They also make appearances in some heavy-duty trucks, highlighting their robust performance capabilities across different vehicle types.

This wide range of applications demonstrates the DT series’ adaptability, making it a preferred choice for both agricultural machinery and transportation vehicles.



In what applications are these engines typically found?

These engines are primarily utilized in medium-duty applications, making them suitable for a range of vehicles that require reliable and robust performance.



What types of vehicles commonly use DT series engines?

DT series engines are typically found in vehicles such as buses, box trucks (commonly used for moving), and some heavy-duty trucks.



What is the Navistar DT466 engine used for?

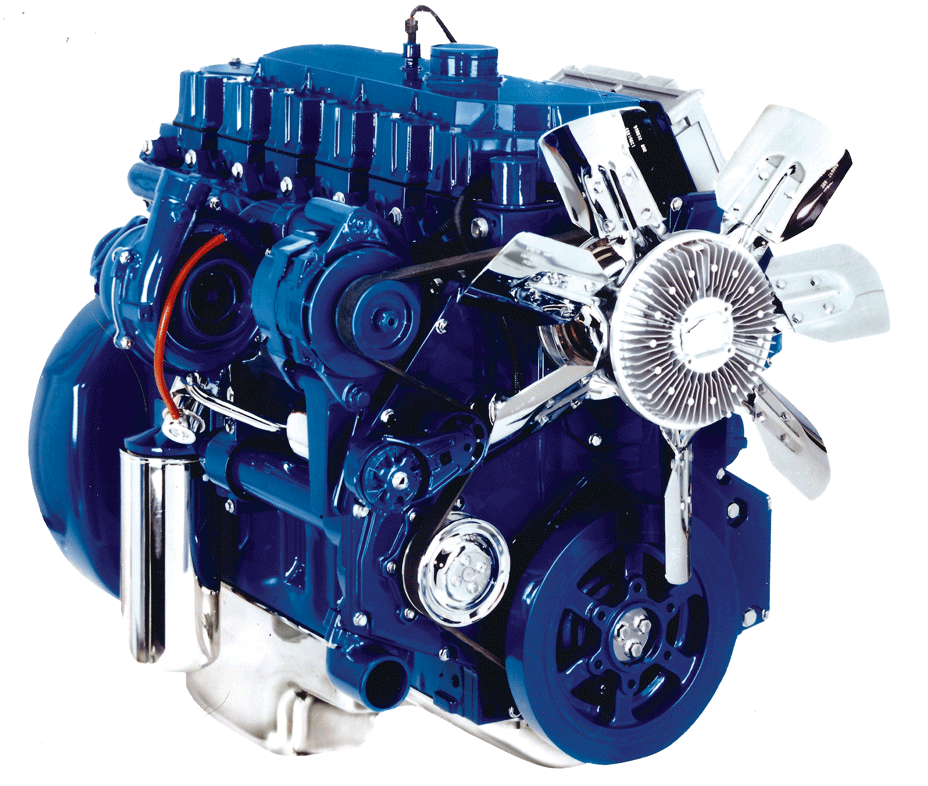

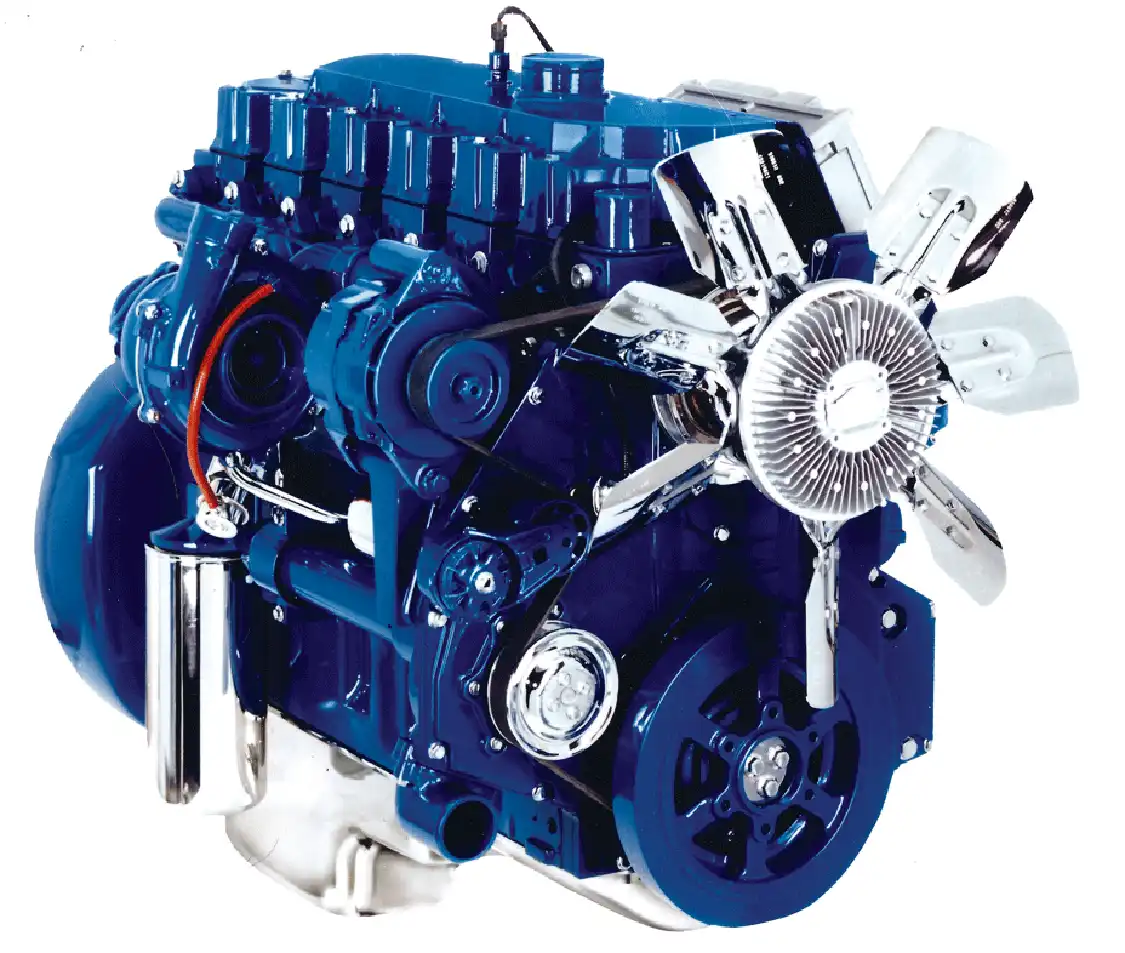

DT466 Diesel Engine: The Navistar International Legend

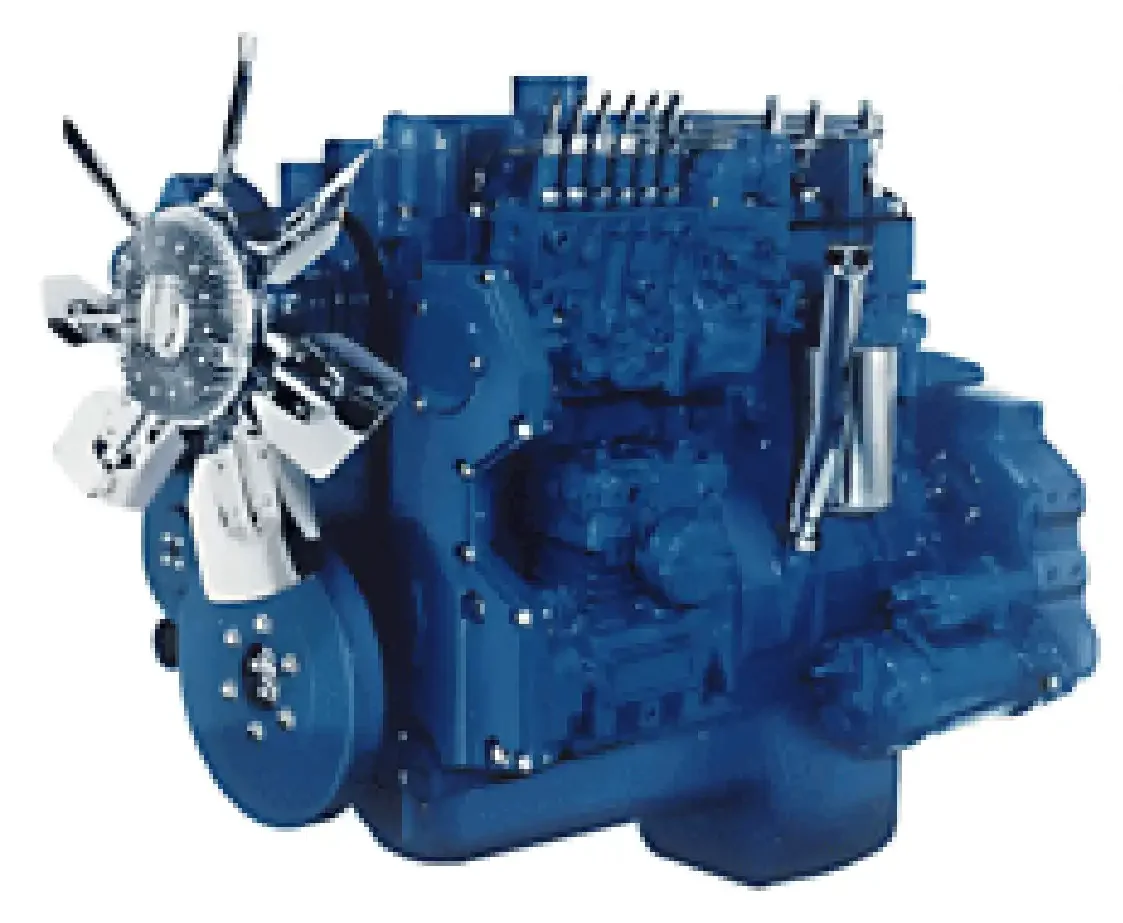

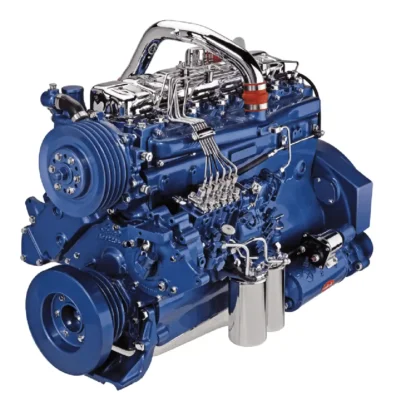

THE INTERNATIONAL/NAVISTAR DT466

Legend! That’s a powerful word that might be used a little too often these days. When it comes to the DT466 diesel, though, it fits. Especially, when you consider it came from users in the field before International’s marketing department got hold of it. The DT466 legend crosses into the industrial, agricultural, and truck realms, but it was the medium-duty truck world where it made the biggest impact.

The versatility of the DT466 engine is evident in its widespread use across various applications. This powerhouse is commonly found in:

• Buses: Offering reliability and durability for public and private transport.
• Box Trucks: A favorite in the moving industry for its dependable performance.
• Heavy-Duty Trucks: Despite being known for medium-duty, its robust nature sees it used in some heavier applications as well.

This engine’s adaptability and enduring performance have solidified its place as a staple in these vehicles, earning its legendary status and making it a go-to choice for those who demand both power and reliability.



What are the medium-duty applications of the DT466 engine?

The DT466 engine is employed in various medium-duty settings, showcasing its versatility in that category.



What types of vehicles use the DT466 engine?

The DT466 engine is utilized in a diverse range of vehicles, including buses, box trucks often used for moving, and even some heavy-duty trucks.



What is the horsepower range of the Navistar DT engine series?

Common output ranged from about 195hp up to 250hp. However, the Navistar DT engine series offers a broader spectrum of power, with horsepower ranging from 170hp to 350hp. This series consists of six mid-range diesel engines, providing versatile options to meet diverse performance needs.

For those who prefer metric measurements, the power outputs translate to a range of 130kW to 260kW. This versatility makes the Navistar DT engines suitable for a variety of applications, ensuring that there’s an option for different operational demands.



How many engines are in the Navistar DT engine series?

The series comprises six different mid-range diesel engines.



What is the power range in kilowatts for the Navistar DT engine series?

The series offers a power range between 130 kilowatts and 260 kilowatts.



What is the full horsepower range of the Navistar DT engine series?

The horsepower range for the Navistar DT engine series spans from 170 horsepower to 350 horsepower.

---
