7.3L Powerstroke HIGH-PRESSURE Oil Pump 101

How The 7.3L Power Stroke HPOP Works

In the mid-1990s, tightening particulate matter emissions standards gave birth to the hydraulically actuated electronic controlled unit injector system we all know as HEUI. One of the engines to debut the new injection technology, which Caterpillar leased to Navistar, was the 7.3L Power Stroke. In the past, we’ve detailed the makeup of an oil-fired HEUI injector at length, but what about the other piece of the puzzle, the high-pressure oil pump? As we close in on 30 years since HEUI was introduced, many still don’t know the inner workings of an HPOP. What’s more, is that a lot of 7.3L enthusiasts have never even seen it inside a high-pressure oil pump.

This month we’re taking an in-depth look at the 7.3L HPOP. We’ll show you all the components packed within its compact housing, how they work together to provide oil volume and highlight the electrically operated dump valve that controls injection control pressure (the IPR). Ever wondered what the difference is between a “15-degree” and a “17-degree” HPOP? Keep reading. After we distinguish the difference between the early and late high-pressure oil pumps, we’ll cover some of the modifications that allow an HPOP to produce more oil volume in order to support larger injectors. Let’s dig in…

Subscribe Our Weekly Newsletter

Also known as the high-pressure oil supply pump, the high-pressure oil pump (HPOP) employed on the 7.3L Power Stroke is charged with providing adequate oil volume to operate the injectors. It is gear-driven via the camshaft, though its drive gear is not timed to the cam or keyed or pinned to the pump itself, and it mounts to the 7.3L’s front cover at the front of the lifter valley.

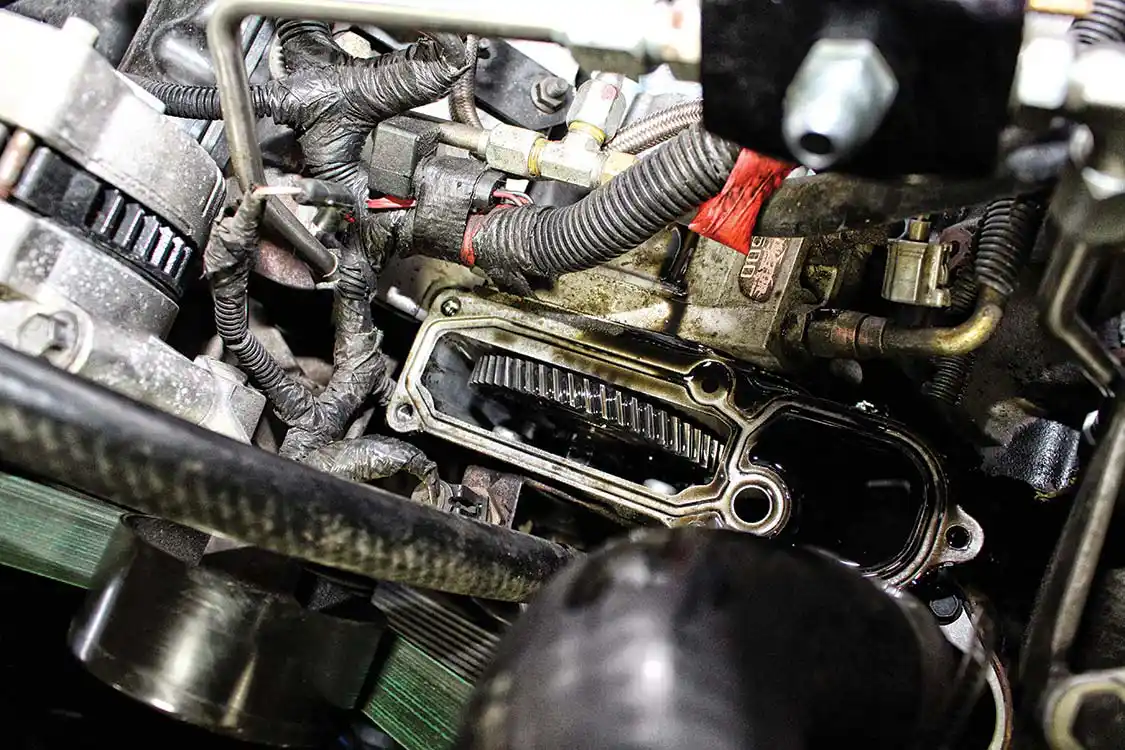

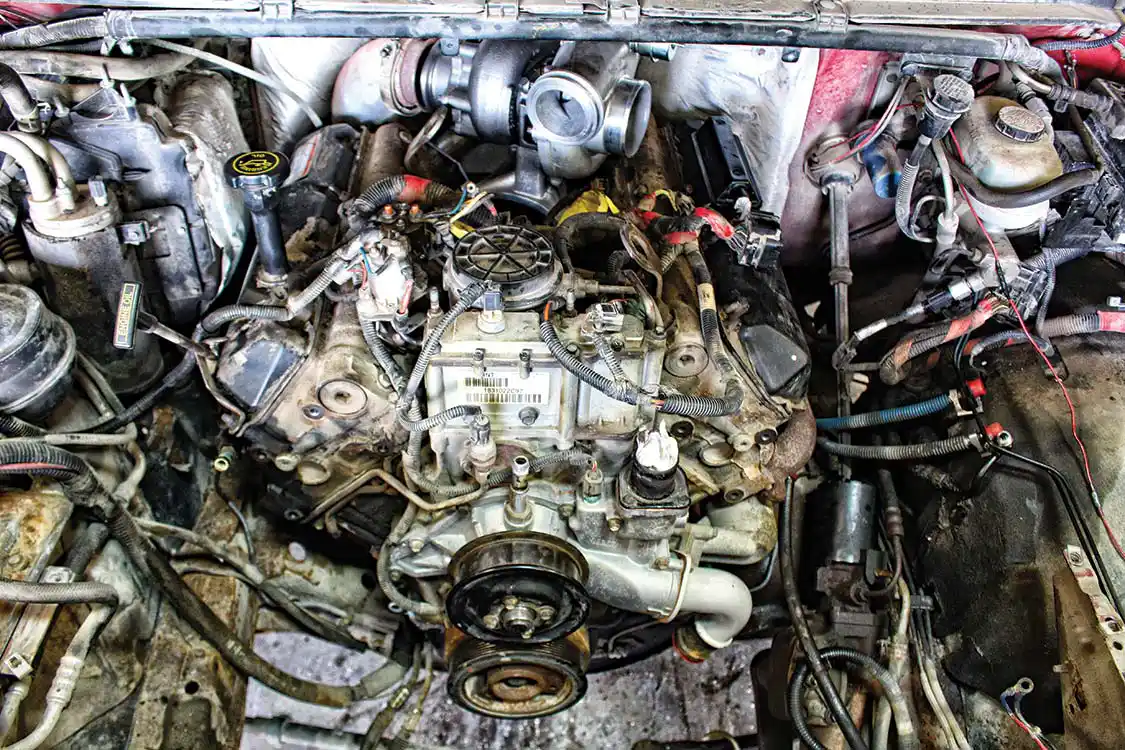

Physically, the HPOP mounts to the 7.3L’s front cover via two bolts, both of which call for a 10mm socket to remove or install them. We’ll also note that the driver-side HPOP-to-front cover mounting bolt is the longer of the two fasteners. The HPOP mounts to the front cover by way of a reusable gasket.

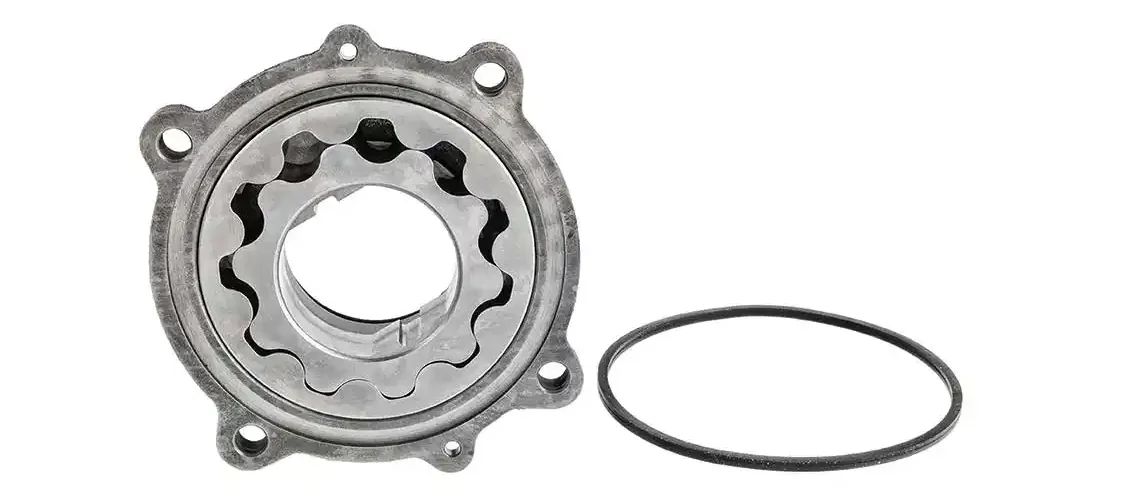

It should be noted at the outset that the HPOP can never perform its job without an efficient low-pressure oil pump in the mix. The LPOP (or lube oil pump, gerotor pump) routes low-pressure engine oil through a check valve and ultimately into the high-pressure oil pump reservoir. Additionally, a short circuit oil gallery is connected to the gerotor pump’s discharge, which provides a quick fill of the high-pressure oil pump reservoir for timely cold starting.

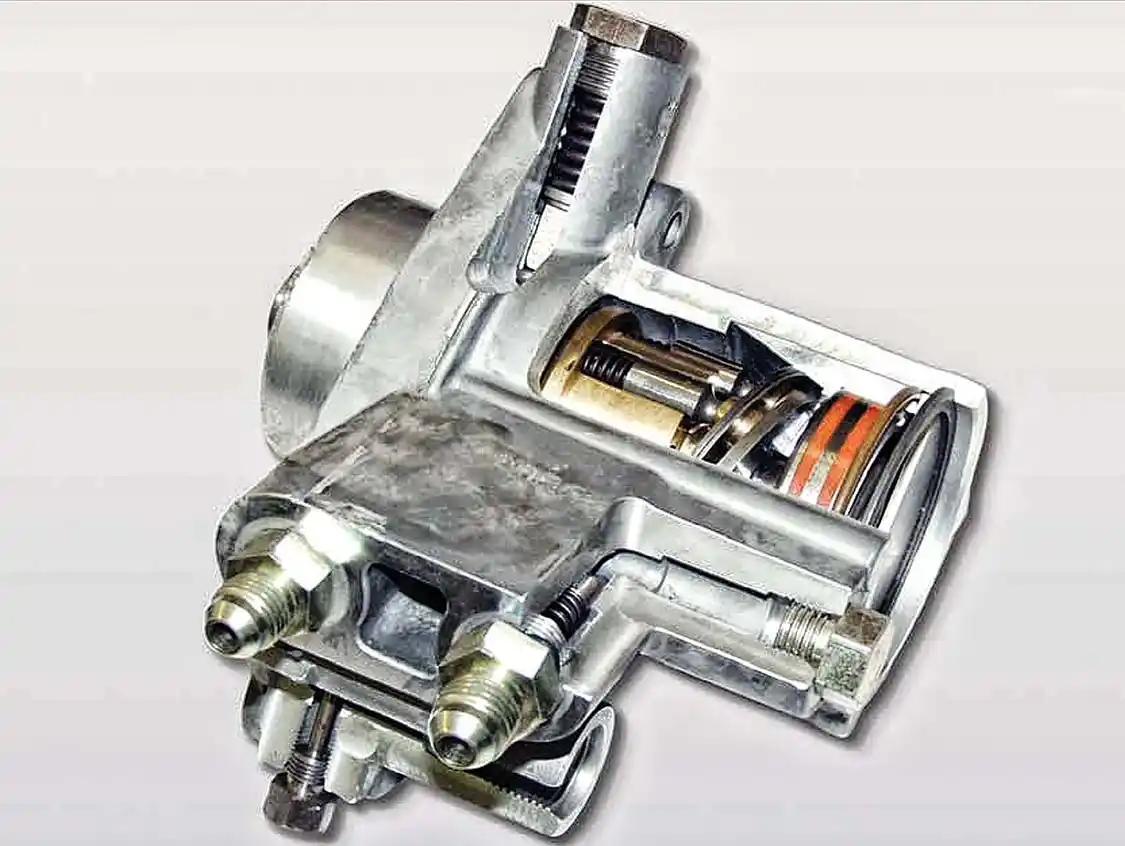

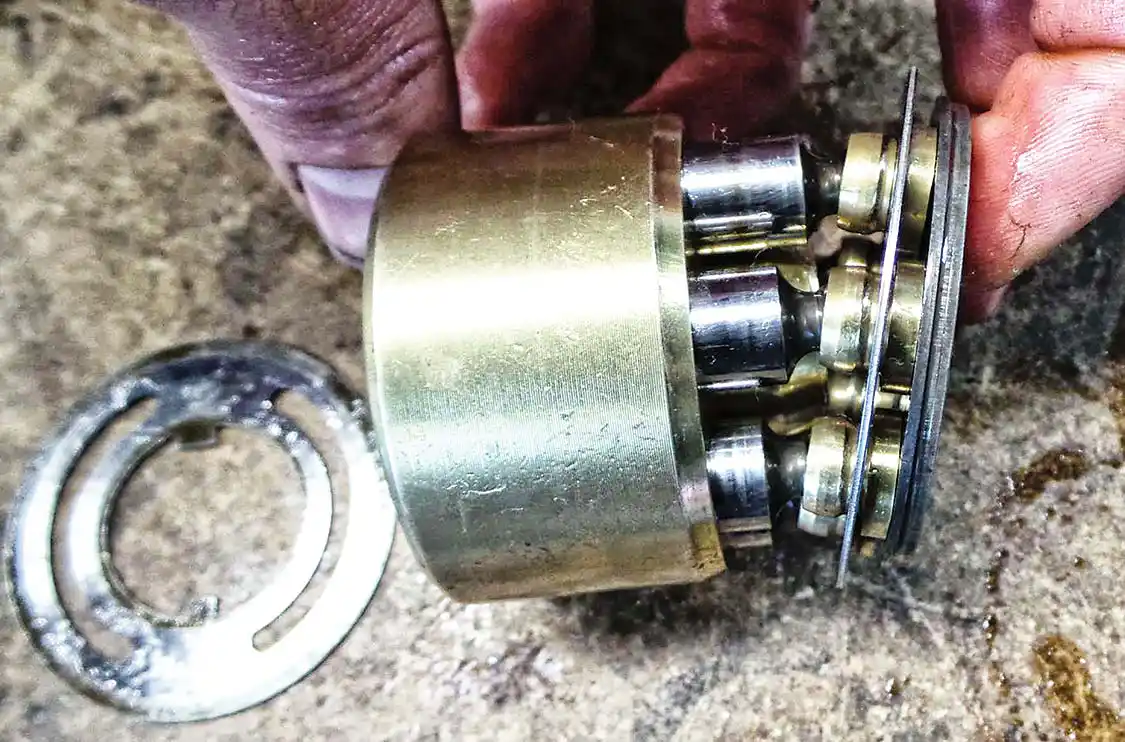

Of the axial piston variety, the 7.3L HPOP is a fixed displacement pump that utilizes seven pistons. A brass cylinder block houses all seven pistons, which ride on what’s known as a swash plate and also utilizes a piston slipper. The pump’s drive shaft is made from special, hardened steel.

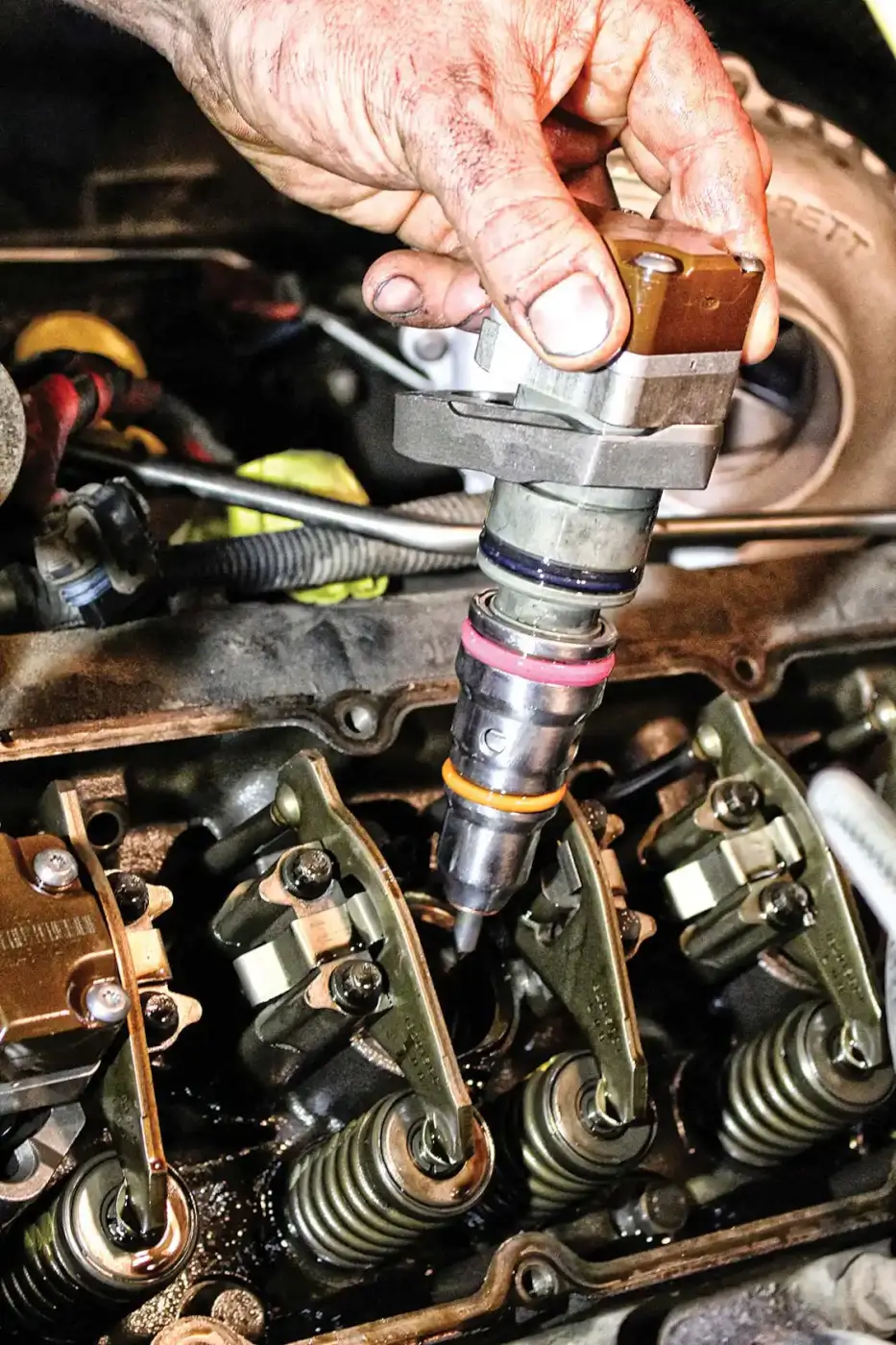

The HPOP’s role in the HEUI system is to route high-pressure oil to the oil galleries machined into the cylinder heads and, ultimately, the top side (oil side) of the injectors. And while oil pressure leaving the HPOP can be pressurized as high as 3,000 psi in stock form thanks to the IPR (more on the IPR later), in-cylinder injection pressures can reach as much as 21,000 psi. This is because the intensifier piston in each HEUI injector multiplies the hydraulic force applied to the fuel plunger by a ratio of 7:1.

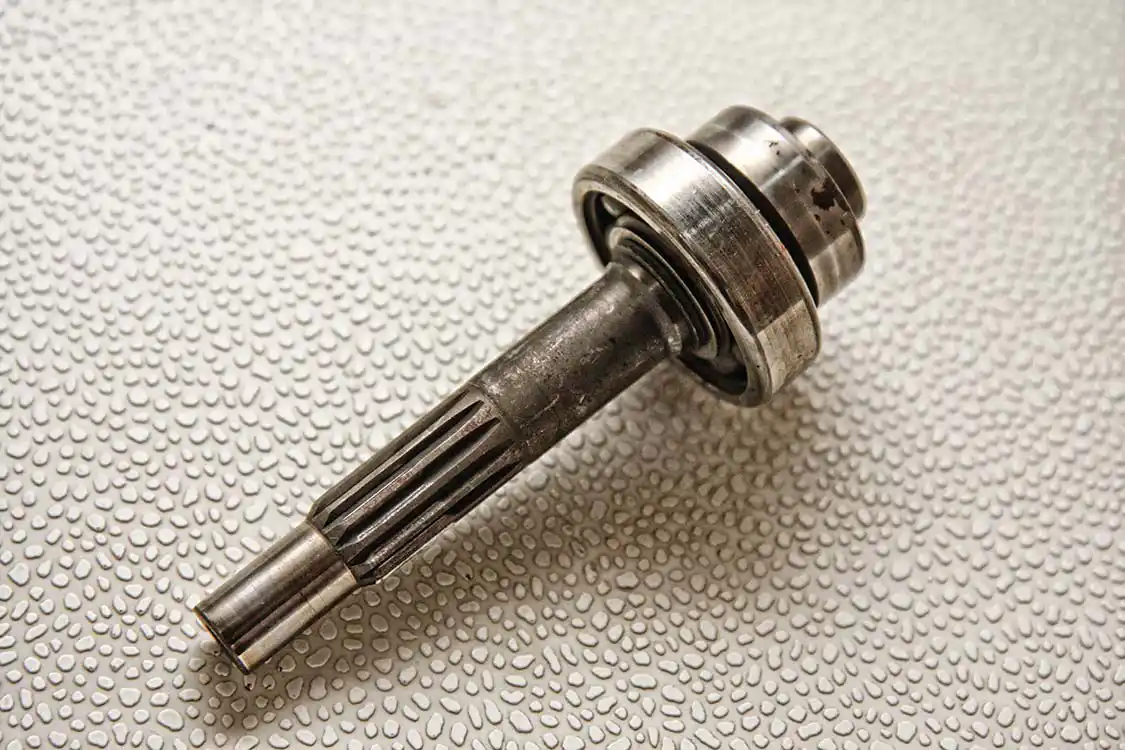

This is the hardened drive shaft that turns the internals that rotates inside the HPOP. The drive gear, which again is driven off of the camshaft, is bolted to this shaft. The drive gear bolt calls for an 18mm socket and 95 ft-lb of torque. And though it isn’t always performed, checking the pump gear to cam gear backlash is recommended any time an HPOP is installed on a 7.3L.

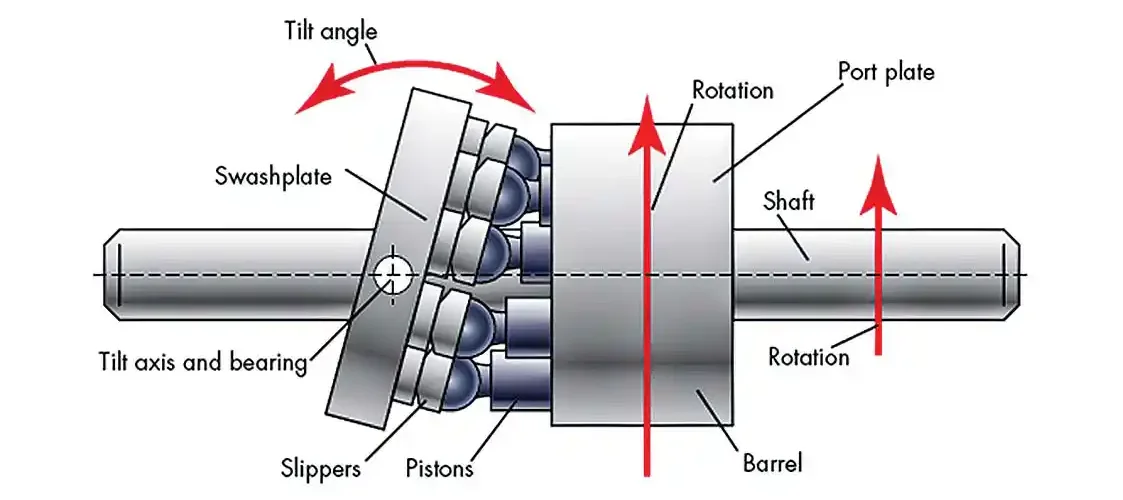

Even if you only know a few of the components contained within an HPOP, you’ve likely heard the term “swash plate.” This piece sits stationary at an angle and is what the pistons move against as the cylinder block rotates, causing the pistons to reciprocate within their respective bores. The angle of the swash plate determines the stroke of the pistons. The higher the angle, the longer the stroke—and the larger the displacement and the more volume the pump puts out.

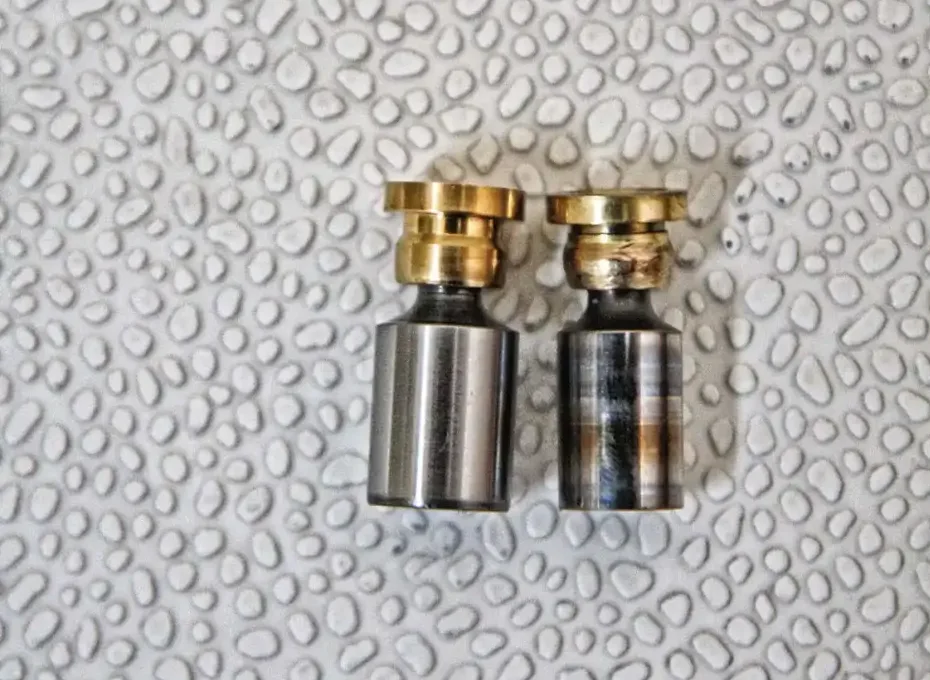

During the suction cycle or one-half of a revolution, the pistons create a vacuum that forces oil in. On the other half of the revolution, the pistons discharge oil. In the 7.3L HPOP, the pistons measure 0.436-inches in outer diameter. A 15-degree pump’s internal cc size is roughly 6.8 cc’s, while the 17-degree pumps is 7.2 cc’s.

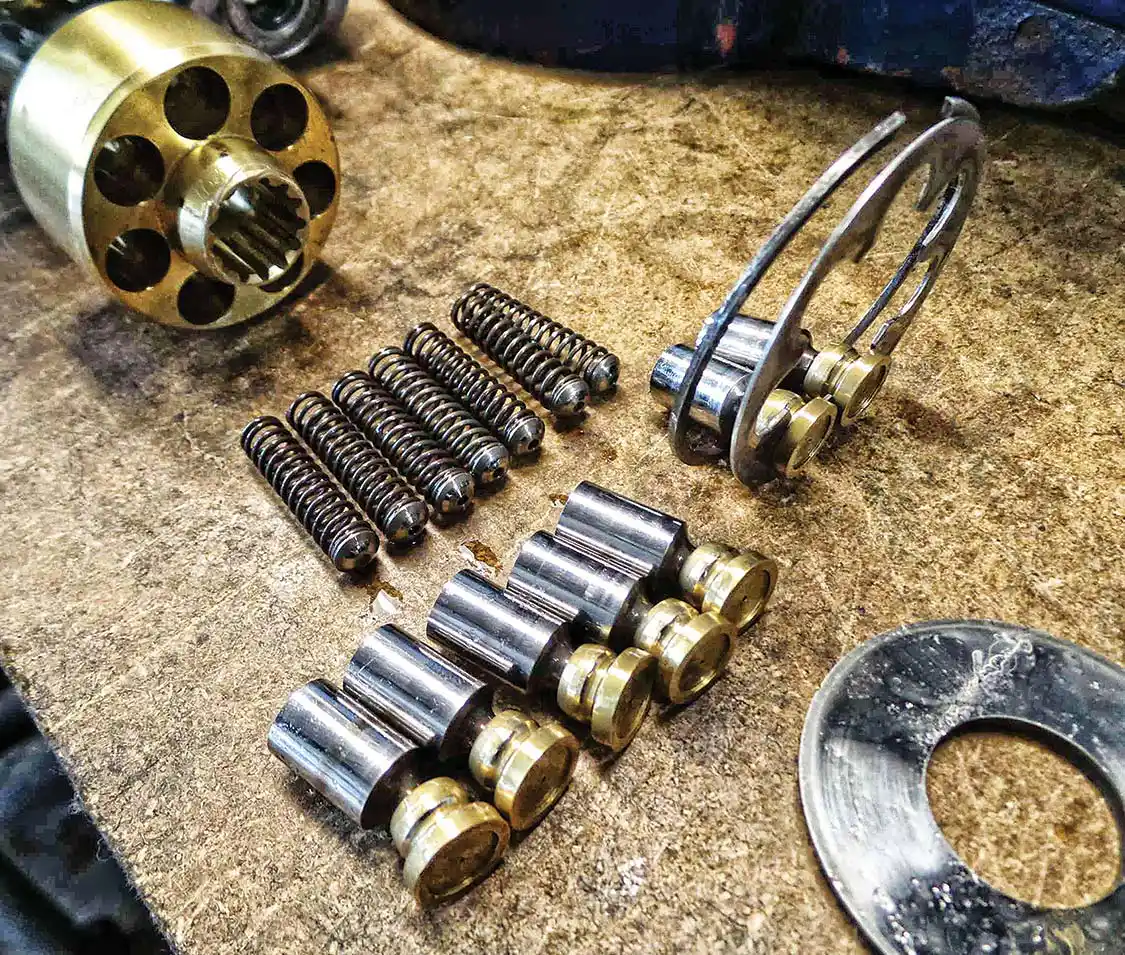

Piston springs sit under each piston within the cylinder block. During the suction cycle (also called the intake stroke), the piston spring ensures the piston is pulled back and maintains contact with the swash plate, which allows oil to fill the empty cavity that’s left behind. Then on the discharge stroke, the swash plate forces the piston back into the cylinder block, which compresses the spring and discharges the oil.

Another vital part of the HPOP is the reservoir, which keeps a constant supply of engine oil available for the pump to use thanks to a passage located in the 7.3L front cover. The high-pressure oil reservoir tower is sealed via an O-ring on the pressure side and RTV sealant on the splash side. It holds approximately one quart of engine oil.

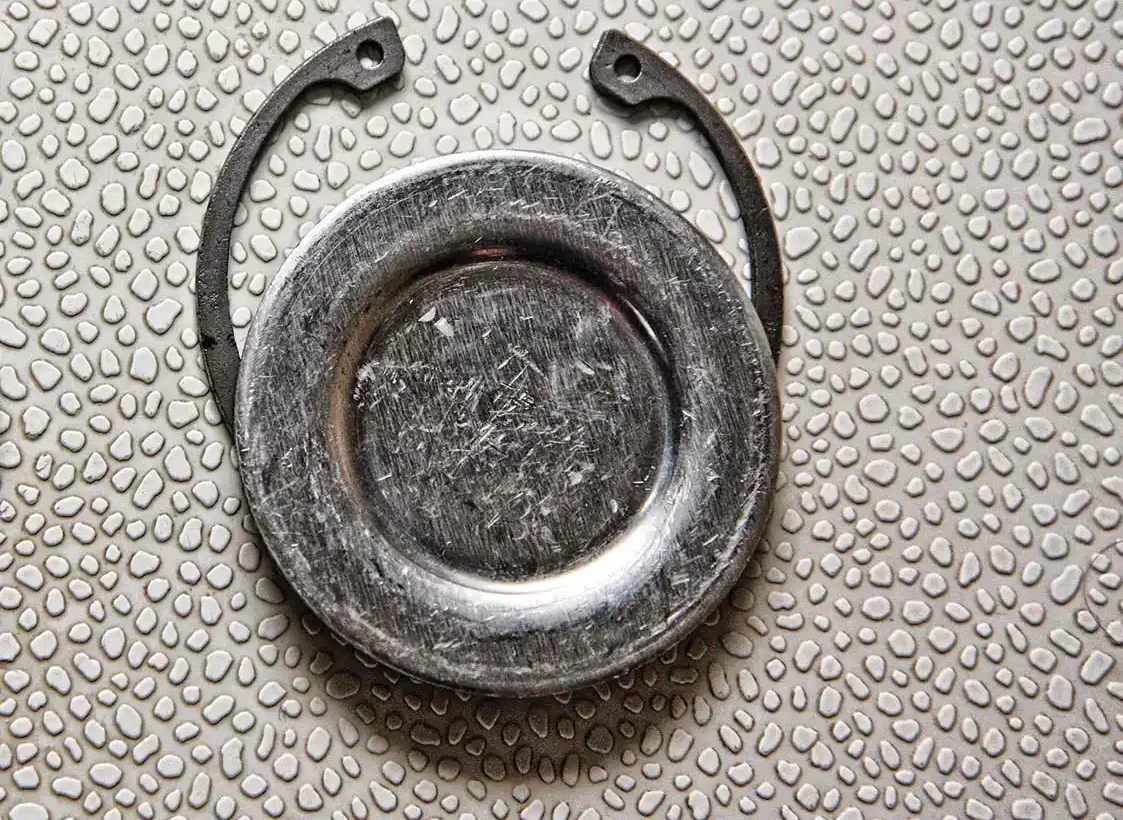

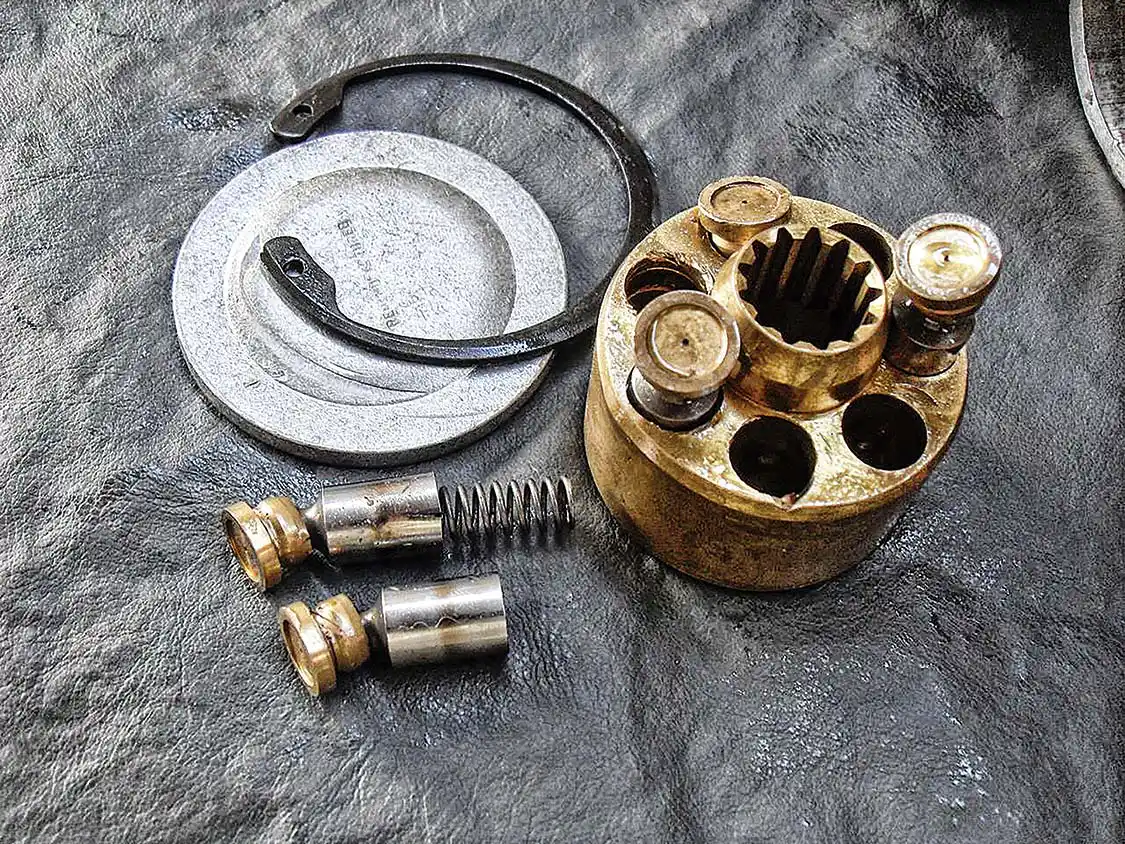

The rear cover snap ring is essentially what holds all the contents of the high-pressure oil pump together, and we’ve seen aftermarket pumps incorporate a 360-degree spiral lock ring here for added insurance. Unfortunately, an oil leak from the rear cover is discovered here from time to time, most often due to a rear plate O-ring seal failure.

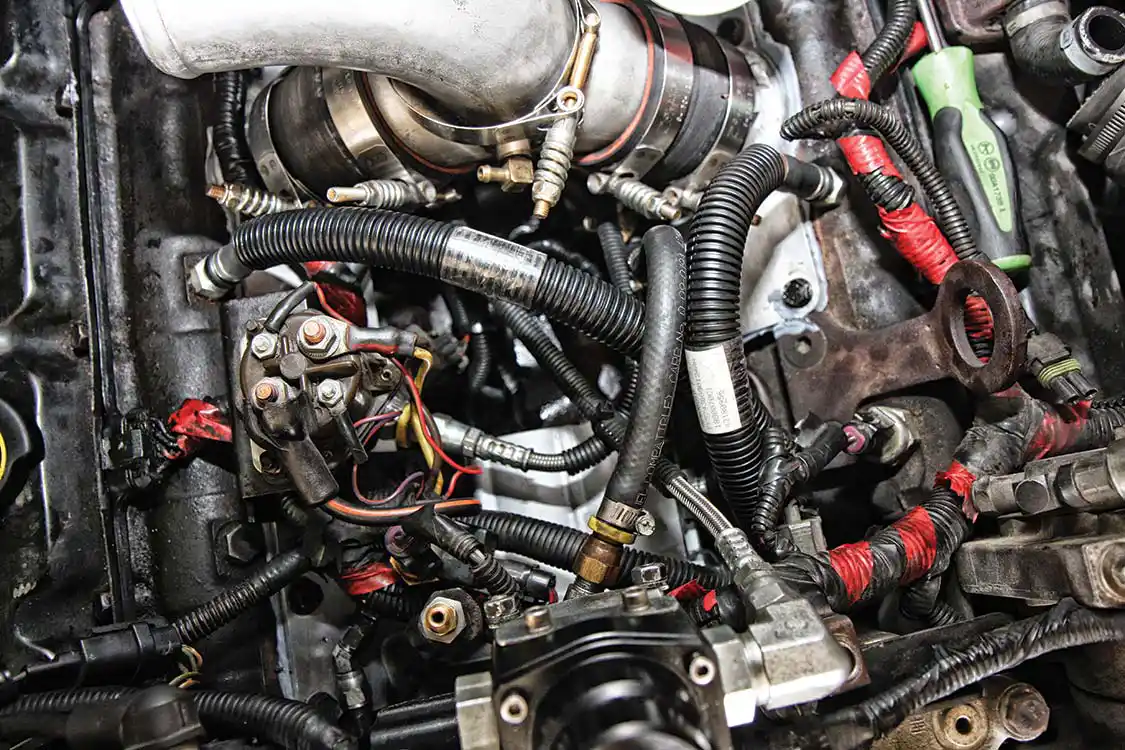

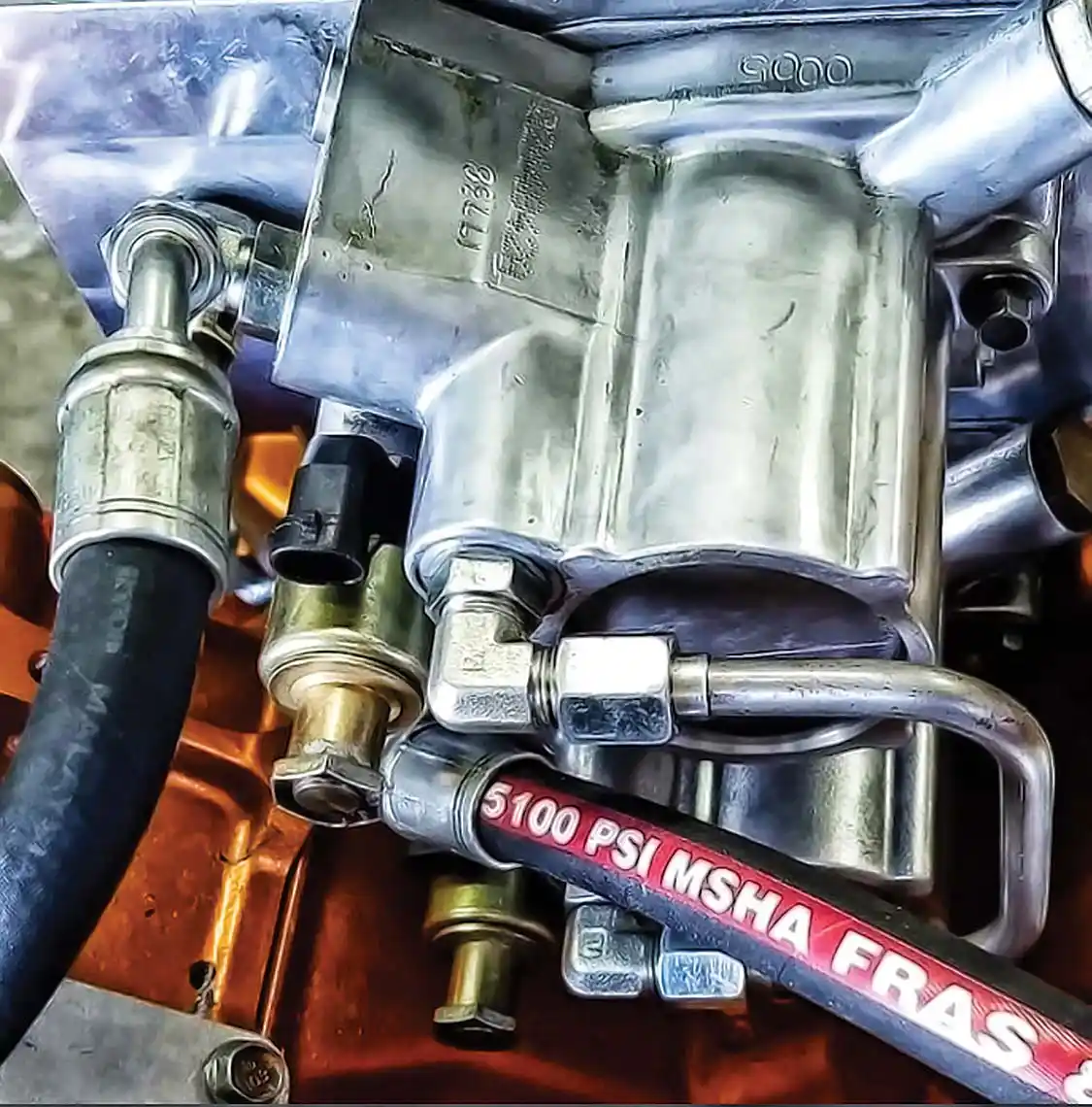

High-pressure hoses feed the oil galleries that are integrated into the 7.3L cylinder heads. Not only are the hoses rated to handle the fluctuations in pressure they constantly see, but for the temperature differentials, they regularly experience. Beginning with the ’99 model year (Super Duty) 7.3L engines, the high-pressure oil lines feature quick-disconnect fittings. Prior to that, they were threaded.

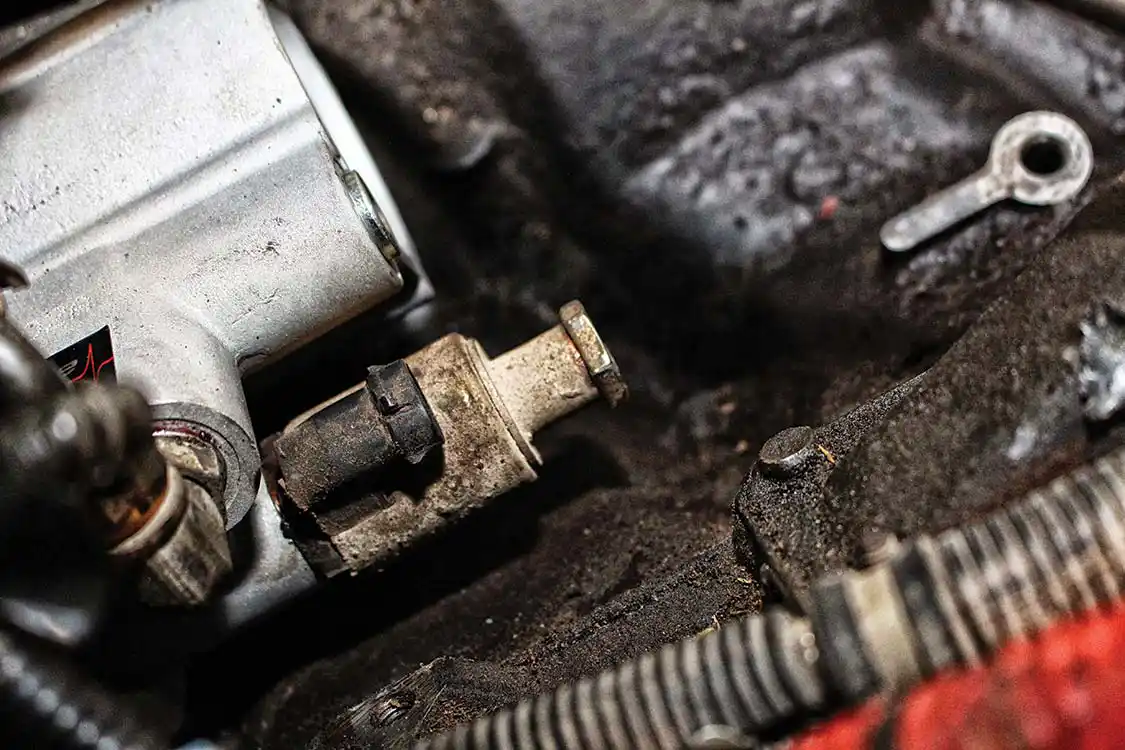

IPR stands for an injection pressure regulator, and this electrically operated dump valve is what controls ICP (injection control pressure, also known as high-pressure oil pressure). It’s controlled by the PCM, mounted on the rear of the HPOP, and precisely varies its outlet pressure in a range between 450 psi to 3,000 psi (in stock form). Its excess flow is dumped into the return circuit.

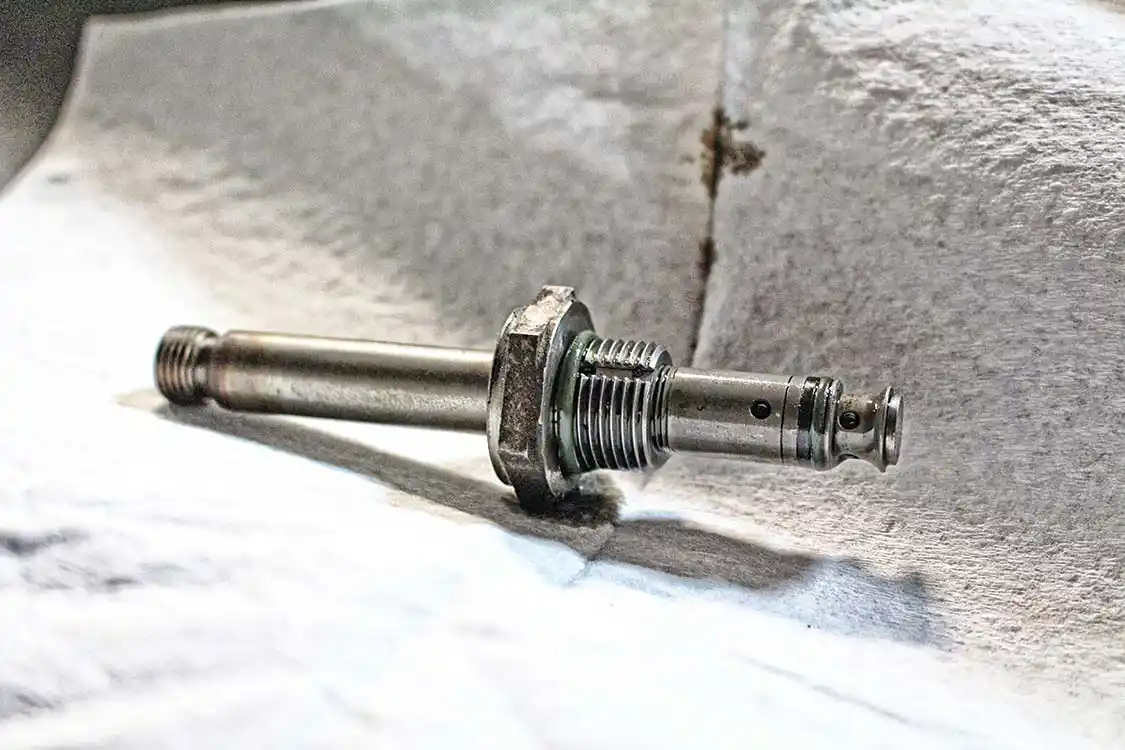

The IPR essentially increases ICP by restricting the path to drain. In order to increase ICP (again, high-pressure oil psi), the PCM will command a higher duty cycle from the IPR. It does this by sending an ICP-based electrical signal to the IPR solenoid, which creates a magnetic field that applies a variable force on the poppet to control pressure. The duty cycle on the IPR is measured in a percentage.

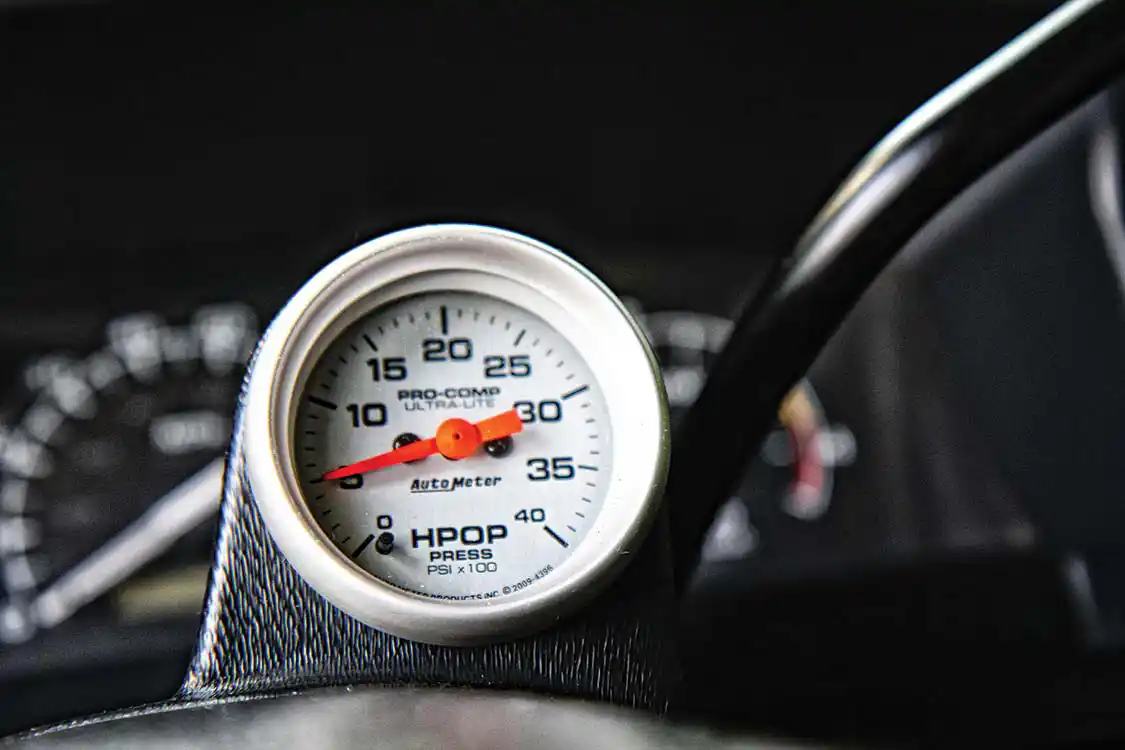

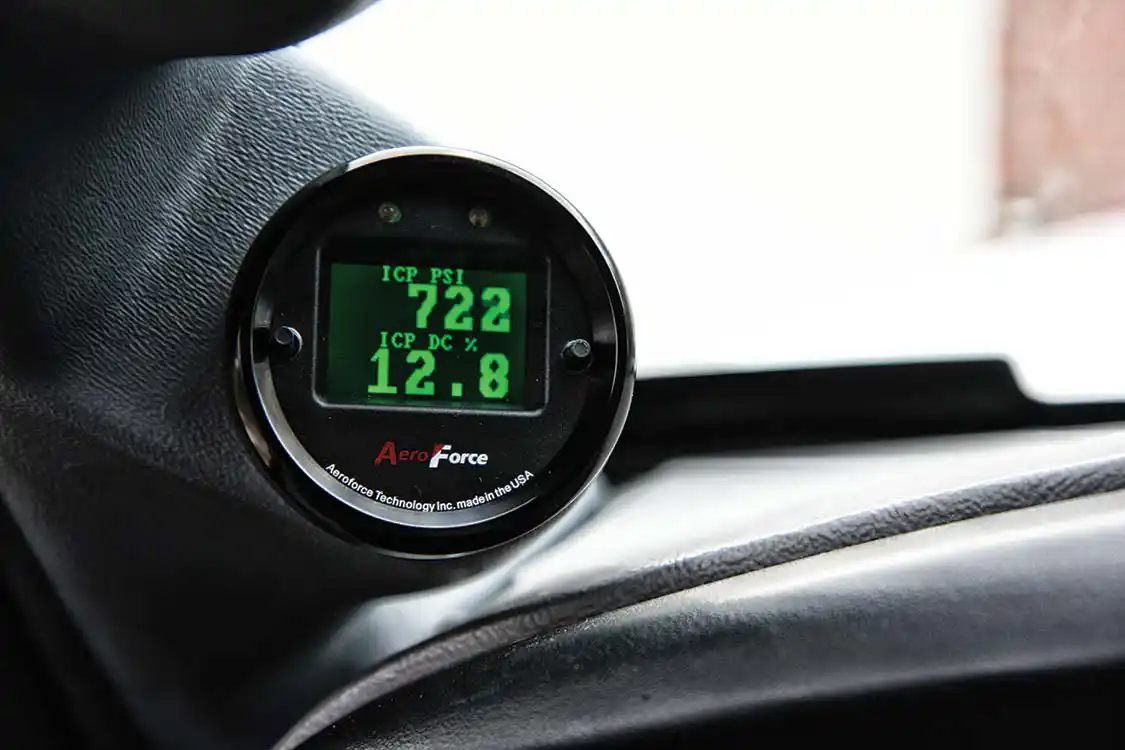

While the IPR duty cycle can be a fun parameter to watch, it’s important to remember several key things in relation to it. As a general rule of thumb, less than a 30-percent duty cycle should be observed in a crank-to-start scenario (and also note that it takes 450 to 500 psi of ICP, minimum, to start a 7.3L). At idle, 8 to 16 percent is normal with the engine up to operating temp (shown). At full load, less than 50 percent is typical. And finally, the maximum commanded IPR duty cycle on a ’94.5-’97 model will be 54 percent, and 65 percent on ’99-newer 7.3L’s.

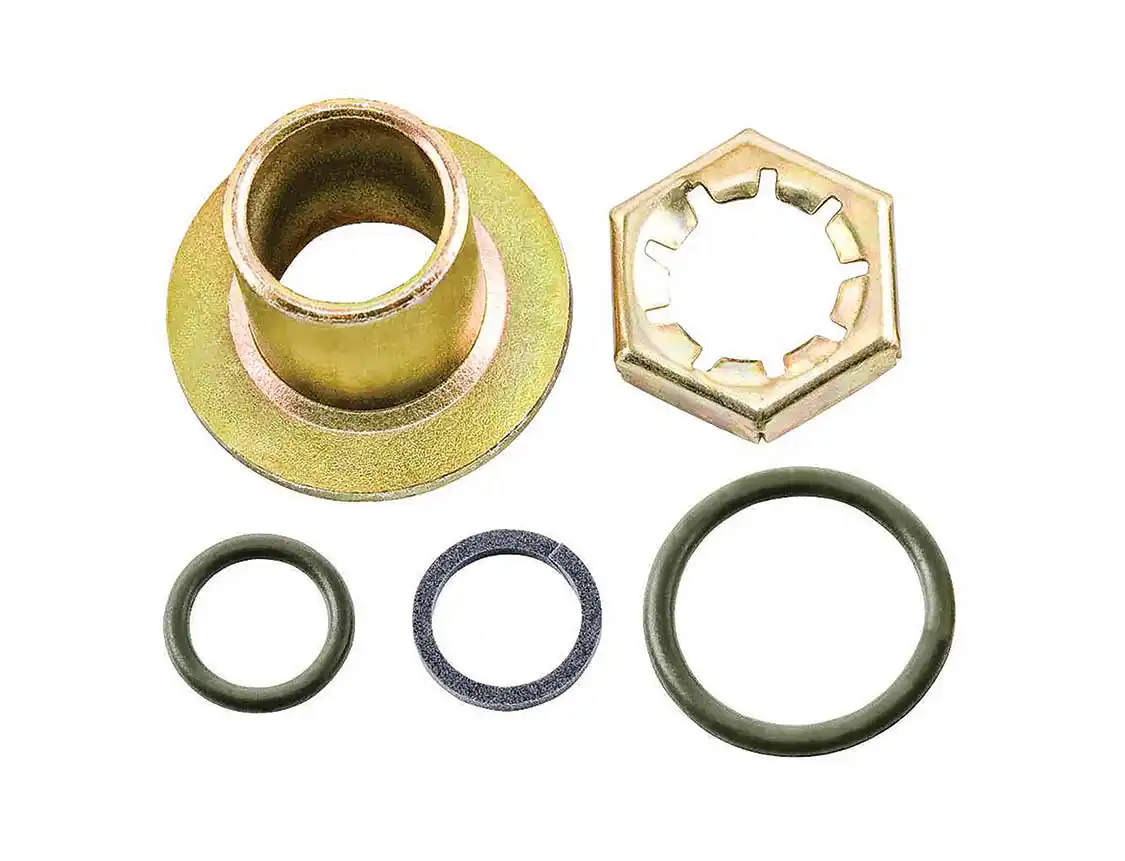

IPR replacement isn’t always necessary for a rough-running 7.3L suffering from poor performance or an oil leak in the valley. Sealed to the back of the HPOP housing via an O-ring and with an additional O-ring being serviceable as well, the IPR can be given a new lease on life with a simple, $13 reseal kit like the one shown here, and offered by Riffraff Diesel Performance.

Similar to an engine, additional displacement can be achieved by increasing the bore and/or stroke of an HPOP. A longer stroke is most common, and as mentioned can be executed by increasing the angle of the swash plate. However, over-stroking the pistons can lead to excessive side loading. Larger diameter pistons are the other means of adding displacement, which in the interest of ensuring optimum wall strength can call for a whole new (thicker walled) cylinder block.

Of course, there are other parts and practices that go into some aftermarket HPOPs that make them better than the rest. Due to their stellar track records, Terminator Engineering’s T-500 HPOP and DieselSite’s Adrenaline HPOP (shown) represent these kinds of high-quality pumps. Tighter tolerances decreased internal clearances, improved pump efficiency, consistent pump output, and a slightly increased swash plate angle (again, for added stroke) are all built into an Adrenaline, which—like the T-500—is a direct replacement performance HPOP that makes use of the factory housing but little else.

It goes without saying that ICP is an important part of the equation, but specifically how well your HPOP can build adequate ICP and then maintain it is most critical. By and large, AA code injectors (’94.5-‘97) run great with anything higher than 2,600 psi worth of ICP, AB and AD code (split-shot) injectors (’97 CA and ’99-‘03) run better with at least 2,900-3,000 psi, and hybrid injectors (which sport a 5:1 injection ratio) tend to run best at 3,200 psi. Although most HPOPs can support in excess of 3,400 psi, anything higher than 3,200 psi is said to offer very minimal gains while also being exceptionally hard on injectors.

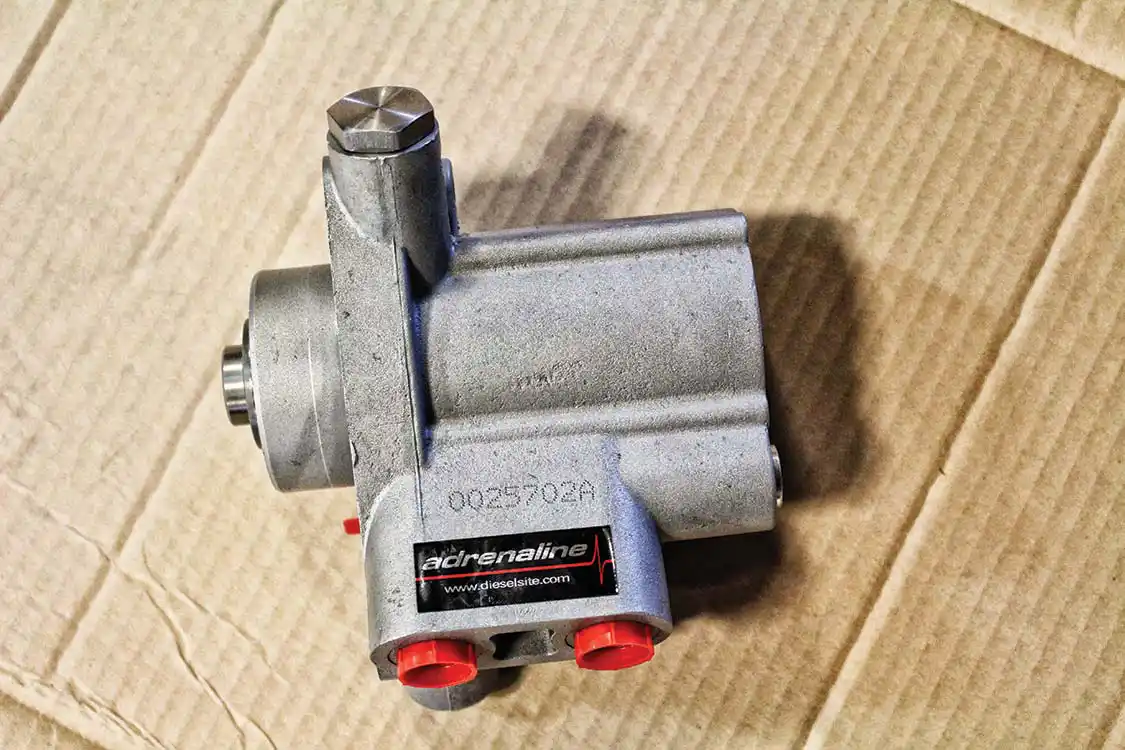

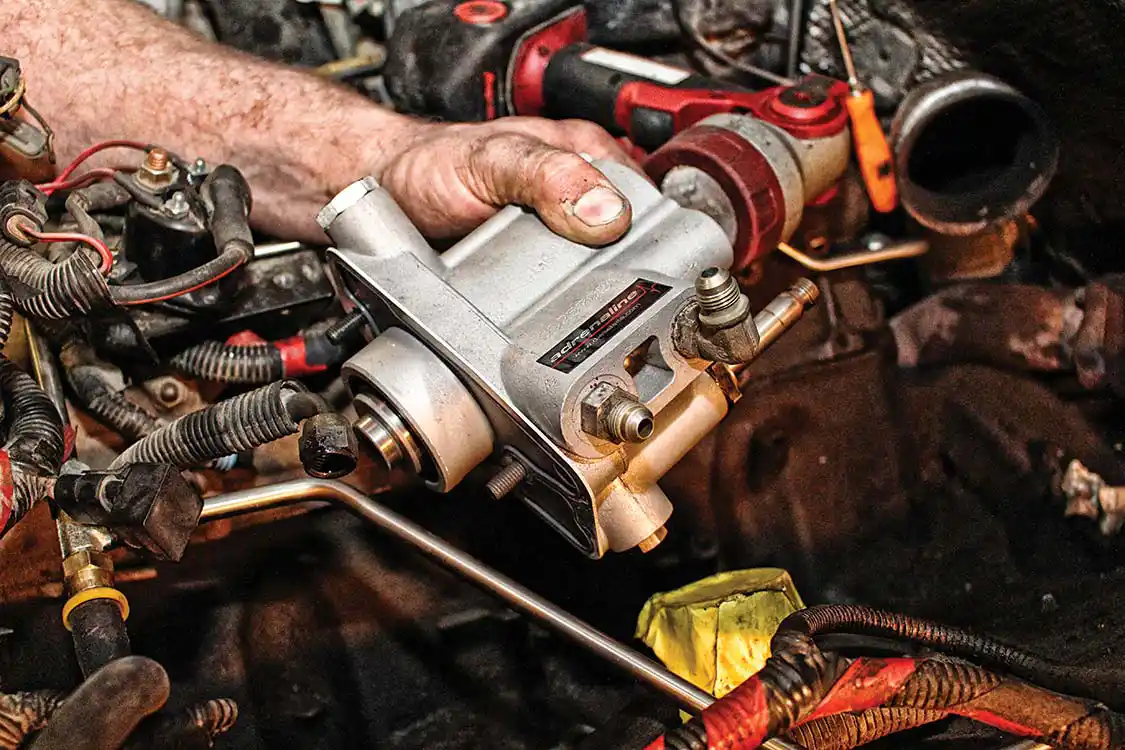

From stock injector engines up to a7.3L running 285cc AD hybrids, DieselSite’s Adrenaline HPOP is a proven performer. Not only can it support 550-hp, but it can last as long as a factory pump (if not longer) while doing it. The Adrenaline’s great reputation for reliability likely stems from the company’s stringent validation process that’s performed before a pump is allowed to leave its facility.

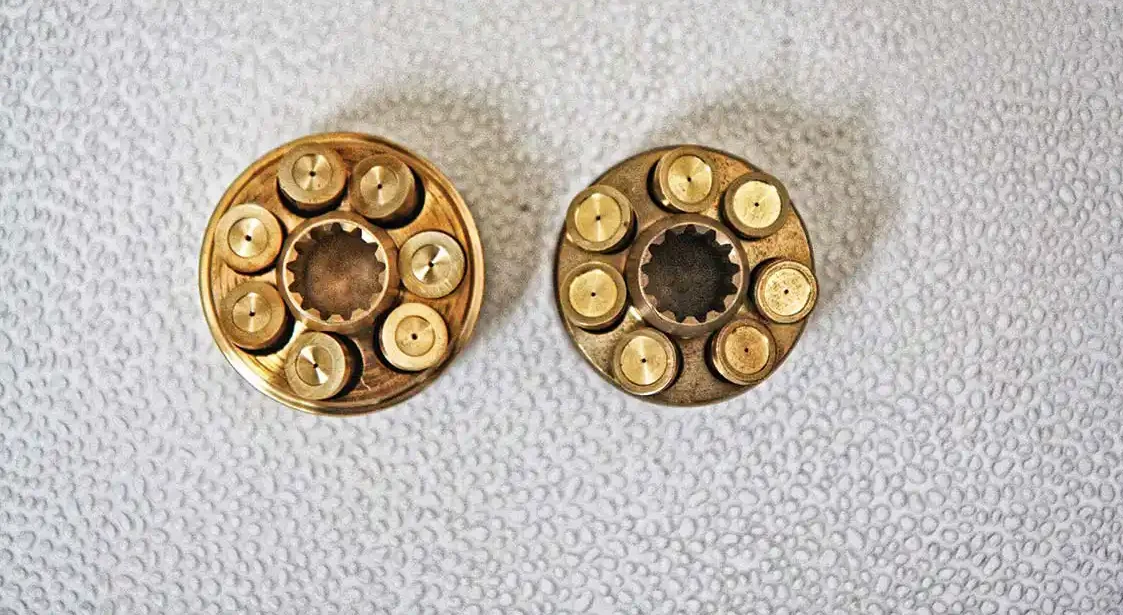

As was mentioned earlier, larger pistons residing in a redesigned (bigger) cylinder block is one way to improve the displacement of a 7.3L HPOP. The SRP1.1 from yesteryear was one such pump, and these upsized pistons were key pieces in what made the pump capable of supporting a 300cc hybrid injector equipped with a 200-percent over the nozzle. They measure 0.500-inches in diameter (left) vs. 0.436-inches in stock.

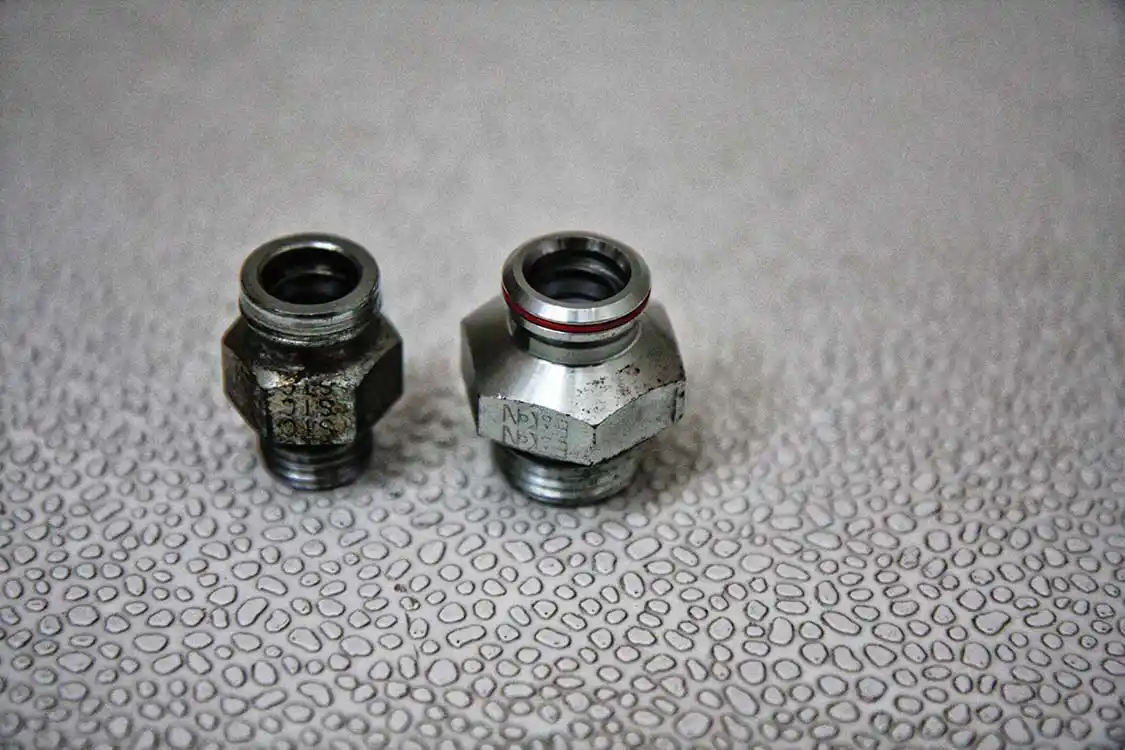

Opening up the output ports of the HPOP increases the volume of oil leaving the pump. On the aforementioned SRP1.1, output puts were upsized to 0.360-inches in diameter (right) vs. 0.210-inches stock (left). And taking a step further in improving reliability, all fittings were increased to #8 SAE ORB from #6 SAE ORB to prevent stripping of the threads and/or the potential of them blowing out.

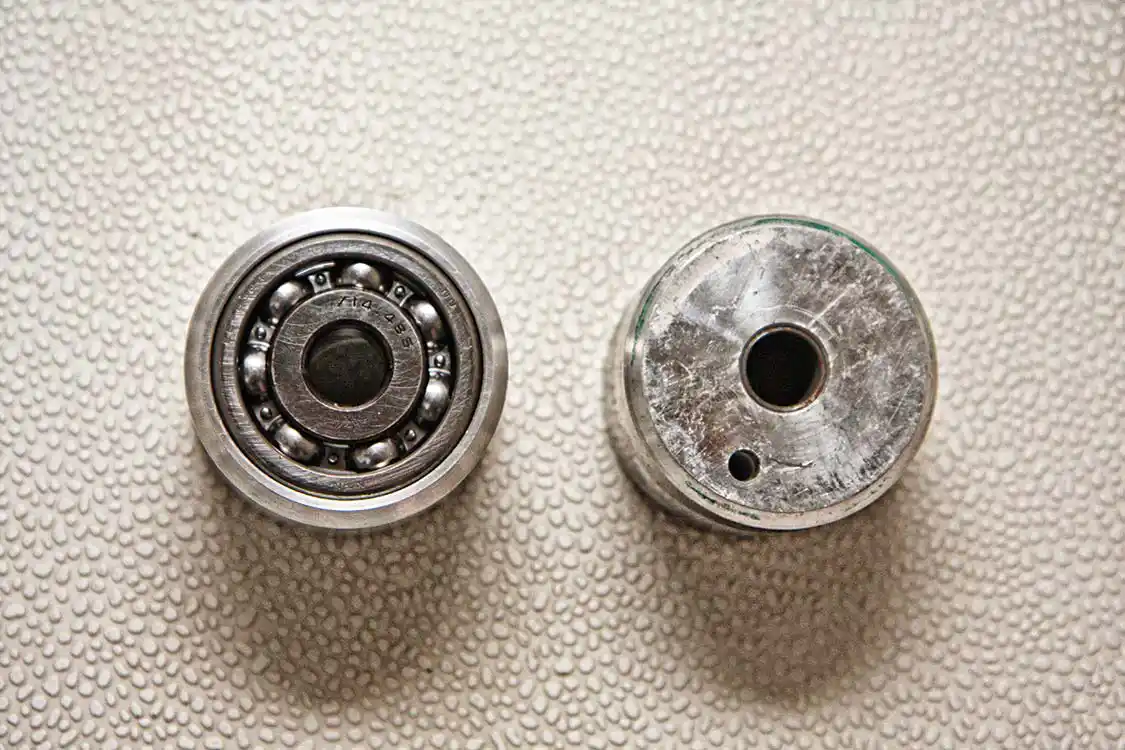

Early model 7.3L HPOPs featured a rear ball bearing for optimum support, but it was replaced with a bushing on later model pumps. Some aftermarket HPPs (the Adrenaline included) re-incorporate dual ball bearings into the mix. Though the bushing was never a major longevity concern, exchanging it for dual ball bearings illustrates a company’s investment in its product.

When it comes to the kinds of high-flow hybrid injectors common in the 7.3L performance world, there is no better high-pressure oil solution than running two pumps. Think of it in terms of dual CP3s on a common rail, where twin pumps help maintain consistent volume to the rails at all times. The major players in the dual HPOP game are Full Force Diesel and Terminator Engineering. Full Force’s Dual HPOP Pump kit, which was acquired from BTS years ago, stacks two pumps on top of each other, while Terminator’s “Big Oil” dual HPOP system locates pumps in-line in the valley. The big takeaways of running two stock displacement HPOPs are abundant high-pressure oil volume and factory-like reliability.

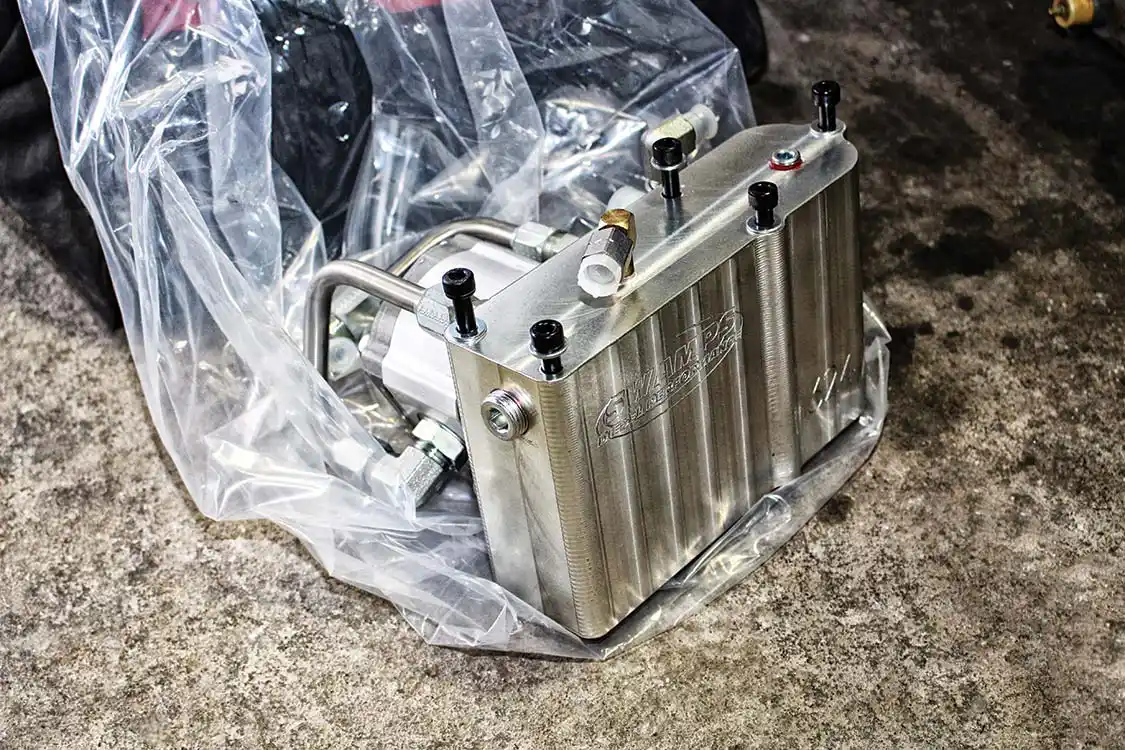

A third dual HPOP option that is highly popular in the big injector segment is the Gen3 from Swamps Motorsports. Based on the use of an industrial-grade, Haldex hydraulic pump, it’s paired with your existing HPOP and works in conjunction with the factory pump’s drive gear. The Gen3 mounts above the factory HPOP don’t require a second IPR, and ship 90 percent assembled.

SOURCES

DieselSite
888.414.3457
dieselsite.com

Full Force Diesel
615.962.8291
shop.fullforcediesel.com

Riffraff Diesel Performance
541.879.1052
www.riffraffdiesel.com/

Swamps Motorsports
615.640.6273
swampsmotorsports.com

Terminator Engineering
terminatorengineering.net

FREQUENTLY ASKED QUESTIONS

How can you identify if your 7.3 HPOP is failing?

How to Identify a Failing 7.3 HPOP

Recognizing the signs of a failing 7.3 High-Pressure Oil Pump (HPOP) is crucial for maintaining your truck’s performance. Here’s a handy guide to help you diagnose potential issues:

Loss of Power:Noticeable power drop while driving can indicate a problem.
Excessive Smoke:Increased smoke emissions might signal inefficiencies in the system.
Decreased Fuel Efficiency:Frequent visits to the gas station could point to a failing HPOP.
Check Engine Light with P1211 Code:This specific code relates to low injector oil pressure.

Watch out for other symptoms as well, such as:

Hard Starts:Difficulty starting the engine, especially in cold weather.
Rough Idling:The engine isn’t running smoothly.
Poor Injector Performance:Unresponsive or sluggish injectors reveal underlying issues.

Ignoring these warning signs can lead to more severe engine problems, affecting overall reliability and performance.

To solve these issues:

Inspect and Replace:Consider checking the HPOP and related components regularly. Replacement or upgrades might be necessary.
Use Quality Parts:Opt for reputable brands like Motorcraft or Bosch for replacements.

Proactively managing these symptoms can restore your vehicle’s optimal performance and fuel economy.

When should you consider using an HPOP rebuild kit for a 7.3 Powerstroke?

When to Consider Using an HPOP Rebuild Kit for a 7.3 Powerstroke

If you’re noticing issues with your 7.3 Powerstroke, pinpointing the right fix is crucial. Here are key situations that might make an HPOP rebuild kit the ideal solution:

Inconsistent Pressure: Fluctuations in oil pressure can signal that your high-pressure oil pump (HPOP) is wearing down. A rebuild kit, equipped with essential seals and components, can help stabilize pressure without the need for a complete overhaul.
Power Loss: When your truck isn’t delivering the power it should, the HPOP may not be working efficiently. Rebuilding it can restore peak performance and enhance your driving experience.
Reduced Fuel Economy: A drop in fuel efficiency can also be linked to HPOP issues. With a rebuild kit, you can address potential leaks or aging parts that compromise your fuel economy.
Minor Leaks and Aging Parts: Noticeable leaks or general wear and tear indicate it’s time to take action. Rebuild kits allow you to replace old components, ensuring your pump runs smoothly and extending its lifespan.

By opting for a rebuild kit in these scenarios, you tackle common problems effectively without the cost and effort of replacing the entire pump.

What are the benefits of upgrading HPOP lines on a 7.3 Powerstroke?

Why Upgrade HPOP Lines on a 7.3 Powerstroke?

Upgrading the High-Pressure Oil Pump (HPOP) lines on your 7.3 Powerstroke engine offers several compelling advantages, particularly if you often tackle demanding tasks or drive in extreme conditions.

Enhanced Reliability

Aftermarket HPOP lines are crafted from superior materials, providing an increase in durability. Unlike stock lines, these are designed to withstand higher pressures and temperatures, reducing the likelihood of leaks or line failures. This reliability is crucial for maintaining optimal engine performance, particularly when you need it the most.

Improved Performance

One of the key benefits of upgraded HPOP lines is their ability to improve oil flow. This translates to more consistent injector operation, ensuring your engine runs smoothly during high-load activities like towing or racing. The ability to maintain consistent pressure helps in achieving peak performance and fuel efficiency.

Long-Term Engine Health

By maintaining better flow and pressure, high-quality HPOP lines contribute to the longevity of your engine components. This is especially important for those who frequently push their vehicles to the limit.

Supports High-Performance Modifications

For those looking to further enhance their Powerstroke diesel engine with performance modifications, upgraded HPOP lines provide the necessary support. They ensure your fuel system can handle increased demands, laying a solid foundation for additional upgrades.

In summary, upgrading the HPOP lines on your 7.3 Powerstroke isn’t just an enhancement—it’s a critical investment in reliability, performance, and the extended health of your engine.

What are the benefits of different HPOP upgrades for a 7.3 Powerstroke?

Due to their stellar track records, Terminator Engineering’s T-500 HPOP and DieselSite’s Adrenaline HPOP(shown) represent these kinds of high-quality pumps. Tighter tolerances, decreased internal clearances, improved pump efficiency, consistent pump output, and a slightly increased swash plate angle (again, for added stroke) are all built into an Adrenaline, which—like the T-500—is a direct replacement performance HPOP that makes use of the factory housing but little else.

Key Benefits of HPOP Upgrades

Upgrading the high-pressure oil pump (HPOP) on your 7.3 Powerstroke offers significant enhancements in both reliability and performance. These upgrades are particularly beneficial under heavy workloads or extreme conditions, providing peace of mind with more durable construction and improved oil flow, ensuring consistent injector operation even during demanding towing or high-performance driving.

It goes without saying that ICP is an important part of the equation, but specifically how well your HPOP can build adequate ICP and then maintain it is most critical. By and large, AA code injectors (’94.5-‘97) run great with anything higher than 2,600 psi worth of ICP, AB and AD code (split-shot) injectors (’97 CA and ’99-‘03) run better with at least 2,900-3,000 psi, and hybrid injectors (which sport a 5:1 injection ratio) tend to run best at 3,200 psi. Although most HPOPs can support in excess of 3,400 psi, anything higher than 3,200 psi is said to offer very minimal gains while also being exceptionally hard on injectors.

From stock injector engines up to a 7.3L running 285cc AD hybrids, DieselSite’s Adrenaline HPOP is a proven performer. Not only can it support 550-hp, but it can last as long as a factory pump (if not longer) while doing it. The Adrenaline’s great reputation for reliability likely stems from the company’s stringent validation process that’s performed before a pump is allowed to leave its facility.

Enhancing Durability and Efficiency

Aftermarket HPOP lines, crafted from robust materials, reduce the risk of leaks and failures, which could otherwise compromise engine performance. These upgrades complement your oil pump, enhancing both its durability and efficiency to support the demanding needs of your Powerstroke diesel.

As was mentioned earlier, larger pistons residing in a redesigned (bigger) cylinder block is one way to improve the displacement of a 7.3L HPOP. The SRP1.1 from yesteryear was one such pump, and these upsized pistons were key pieces in what made the pump capable of supporting a 300cc hybrid injector equipped with a 200-percent over the nozzle. They measure 0.500-inches in diameter (left) vs. 0.436-inches in stock.

Opening up the output ports of the HPOP increases the volume of oil leaving the pump. On the aforementioned SRP1.1, output puts were upsized to 0.360-inches in diameter (right) vs. 0.210-inches stock (left). And taking a step further in improving reliability, all fittings were increased to #8 SAE ORB from #6 SAE ORB to prevent stripping of the threads and/or the potential of them blowing out.

Early model 7.3L HPOPs featured a rear ball bearing for optimum support, but it was replaced with a bushing on later model pumps. Some aftermarket HPPs (the Adrenaline included) re-incorporate dual ball bearings into the mix. Though the bushing was never a major longevity concern, exchanging it for dual ball bearings illustrates a company’s investment in its product.

Advanced Solutions for High Performance

When it comes to the kinds of high-flow hybrid injectors common in the 7.3L performance world, there is no better high-pressure oil solution than running two pumps. Think of it in terms of dual CP3s on a common rail, where twin pumps help maintain consistent volume to the rails at all times. The major players in the dual HPOP game are Full Force Diesel and Terminator Engineering. Full Force’s Dual HPOP Pump kit, which was acquired from BTS years ago, stacks two pumps on top of each other, while Terminator’s “Big Oil” dual HPOP system locates pumps in-line in the valley. The big takeaways of running two stock displacement HPOPs are abundant high-pressure oil volume and factory-like reliability.

A third dual HPOP option that is highly popular in the big injector segment is the Gen3 from Swamps Motorsports. Based on the use of an industrial-grade, Haldex hydraulic pump, it’s paired with your existing HPOP and works in conjunction with the factory pump’s drive gear. The Gen3 mounts above the factory HPOP don’t require a second IPR, and ship 90 percent assembled.

By incorporating these advanced solutions, drivers can achieve both enhanced performance and reliability, ensuring their 7.3 Powerstroke is always ready to tackle the next challenge.

What options are available for upgrading the HPOP in a 7.3 Powerstroke?

Of course, there are other parts and practices that go into some aftermarket HPOPs that make them better than the rest. Due to their stellar track records, Terminator Engineering’s T-500 HPOP and DieselSite’s Adrenaline HPOP(shown) represent these kinds of high-quality pumps. Tighter tolerances, decreased internal clearances, improved pump efficiency, consistent pump output, and a slightly increased swash plate angle (again, for added stroke) are all built into an Adrenaline, which—like the T-500—is a direct replacement performance HPOP that makes use of the factory housing but little else.

Upgrade Options for 7.3 Powerstroke HPOP

When considering upgrades for the 7.3 Powerstroke HPOP, several performance-driven options cater to different needs:

CNC Fabrication Stage 1 and 2 HPOPs: These are optimal for those looking to replace a worn stock HPOPor for vehicles with larger injectors and chips that demand additional oil flow.
DieselSite Adrenaline Pumps: Known for their reliability and power, these pumps are exceptional for both stock and performance injectors.
Direct Replacement Pumps: Ideal for those who want to maintain stock performance while enhancing durability.

A third dual HPOP option that is highly popular in the big injector segment is the Gen3 from Swamps Motorsports. Based on the use of an industrial-grade, Haldex hydraulic pump, it’s paired with your existing HPOP and works in conjunction with the factory pump’s drive gear. The Gen3 mounts above the factory HPOP, doesn’t require a second IPR, and ships 90 percent assembled.

Whether you need a mild upgrade or are building a high-performance towing rig, these HPOP options are designed to meet the demands of your Powerstroke.

What is the best high-pressure oil pump for a 7.3 Powerstroke based on performance goals?

Due to their stellar track records, Terminator Engineering’s T-500 HPOP and DieselSite’s Adrenaline HPOP (shown) represent these kinds of high-quality pumps. Tighter tolerances, decreased internal clearances, improved pump efficiency, consistent pump output, and a slightly increased swash plate angle (again, for added stroke) are all built into an Adrenaline, which—like the T-500—is a direct replacement performance HPOP that makes use of the factory housing but little else.

Selecting the best high-pressure oil pump for a 7.3 Powerstroke depends largely on your truck’s performance goals. For those maintaining stock or lightly tuned setups, the DieselSite Adrenaline pump is a top choice, offering exceptional reliability and consistent oil pressure for everyday driving and moderate towing needs. Its design ensures a seamless fit while enhancing performance.

However, if your setup includes larger injectors or advanced tuning, the CNC Fab Stage 2 system comes highly recommended. This system excels in delivering superior oil flow and pressure, making it ideal for heavy-duty applications or high-performance builds. For enthusiasts pushing their build to the extreme, dual HPOP setups present a viable option for sustaining extraordinary performance levels.

Incorporating a high-performance HPOP, like the T-500 or Adrenaline, means you’re not just replacing a part, but upgrading your vehicle’s potential. Whether restoring factory performance or aiming for the pinnacle of power, understanding your specific needs and aligning them with the right pump choice is crucial.

What are the advantages of choosing specific High-Pressure Oil Pumps for a 7.3 Powerstroke?

Of course, there are other parts and practices that go into some aftermarket HPOPs that make them better than the rest. Due to their stellar track records, Terminator Engineering’s T-500 HPOP and DieselSite’s Adrenaline HPOP (shown) represent these kinds of high-quality pumps. Tighter tolerances, decreased internal clearances, improved pump efficiency, consistent pump output, and a slightly increased swash plate angle (again, for added stroke) are all built into an Adrenaline, which—like the T-500—is a direct replacement performance HPOP that makes use of the factory housing but little else.

Why Choose These High-Pressure Oil Pumps?

Expertise in Engineering: With years of dedication to enhancing diesel performance, these pumps are designed with advanced engineering techniques. The focus on tighter tolerances and improved efficiency ensures they meet the rigorous demands of diesel enthusiasts.
Quality Assurance: Both the T-500 and Adrenaline HPOPs are crafted by industry leaders known for their innovation and quality. The use of top-tier materials and precision manufacturing processes guarantees longevity and reliable performance.
Enhanced Performance: The improved pump output and swash plate adjustments provide a noticeable boost in engine performance. These modifications not only enhance power delivery but also ensure consistency under varying conditions, making them ideal for those seeking both reliability and power.
Comprehensive Support: Choosing these high-quality pumps means access to extensive resources and support. Whether you’re seeking installation guidance or performance optimization tips, expert advice is readily available to help you get the most out of your investment.

Emphasizing both technical excellence and customer support, these HPOPs offer a compelling choice for those looking to upgrade their 7.3 Powerstroke. Their combination of innovative design and proven reliability makes them stand out in the world of diesel performance enhancements.

What types of HPOP accessories and parts are available for the 7.3 Powerstroke?

Similar to an engine, additional displacement can be achieved by increasing the bore and/or stroke of an HPOP. A longer stroke is most common, and as mentioned, can be executed by increasing the angle of the swash plate. However, over-stroking the pistons can lead to excessive side loading. Larger diameter pistons are the other means of adding displacement, which in the interest of ensuring optimum wall strength can call for a whole new (thicker walled) cylinder block.

In addition to these advanced pumps, there are a variety of HPOP accessories and parts available to enhance the performance and reliability of your 7.3 Powerstroke:

OEM Replacement Pumps: These provide dependable, direct-fit solutions that maintain the engine’s reliability.
Aftermarket HPOP Lines: Designed to improve oil flow and durability, especially under high-pressure conditions.
HPOP Rebuild Kits: Cost-effective options for breathing new life into worn pumps, allowing for sustained performance.

Every product offered is crafted to withstand the rugged demands of the 7.3 Powerstroke, ensuring you achieve both the performance and reliability you need. Whether you’re restoring factory performance or tackling extreme upgrades, these parts are essential for getting the most out of your engine.
