Strengthen A Duramax By Changing The Firing Order

With nearly 15 years of production, the 6.6L Duramax V-8 found in GM trucks has proven itself to be a durable and dependable diesel. Throughout its lifespan the Duramax has gone through several revisions to improve performance and drivability as well as reduce emissions. Internal changes to the latest Duramax, the 2011-2015 LML, include new connecting rods and pistons, additional emissions equipment and a variable-geometry turbocharger, all of which have raised output to nearly 400 hp. One piece that has remained virtually unchanged, however, is the crankshaft, which can fail prematurely when subjected to undue stress, especially in a high-performance or competition application.

The aftermarket has done some incredible things with the 6.6L Duramax, pushing it to performance levels that were never imaginable. It’s not uncommon to see all-out drag racing and sled pulling trucks with engines producing 1,500 hp or more. Getting that kind of power is no easy task. Shops specializing in Duramax performance have had to get quite technical and come up with some rather ingenious products to make a motor live at those levels. One such company is Empire Diesel of Dubuque, Iowa. Empire Diesel quickly gained popularity on the competitive sled pull scene in the Midwest thanks to their custom-built engines and overall knowledge of the Duramax platform. With their sled trucks pushing 1,000 horsepower, they too ran into the limitations of the stock crankshaft.

Empire determined that the factory firing order of the Duramax engine could be causing major stress along the crankshaft plane. By creating a new camshaft profile that changes the firing order, they thought it would be possible to distribute the stress of combustion more evenly across the crank. We interviewed Chad Remakel, CEO of Empire Diesel, to learn more about the Alternate Firing Order camshaft. Our conversation revealed some very interesting technical knowledge about the inner workings of the Duramax diesel and what it takes to really push these things to the limit.

Subscribe Our Weekly Newsletter

DIESEL WORLD: What’s the reasoning behind the alternate firing order camshaft for the 6.6L Duramax?

CHAD REMAKEL: The main reason for modifying the Duramax firing order with the camshaft is to relieve stress on the front portion of the crankshaft in higher performance applications. The factory firing is 1-2-7-8-4-5-6-3, but this new camshaft design changes that to 1-5-6-3-4-2-7-8. Changing an engine’s firing order isn’t a new science, as GM gas guys have been doing it for years in with the LS engine 4-7 swap. It’s just something we wanted to try and help reduce part breakage in the Duramax application. Every engine platform within the Duramax family—including the LB7, LLY, LBZ, LMM and LML—suffers from these issues with the crankshaft breaking just behind the snout back to the #3 rod journal. We’ve seen these failures on everything from mildly modified daily drivers to full-blown competition engines with internally balanced aftermarket billet cranks. There’s something to do with the Duramax engines harmonics at higher rpm and bigger power levels that causes a lot of stress on the crank due to the factory firing order.

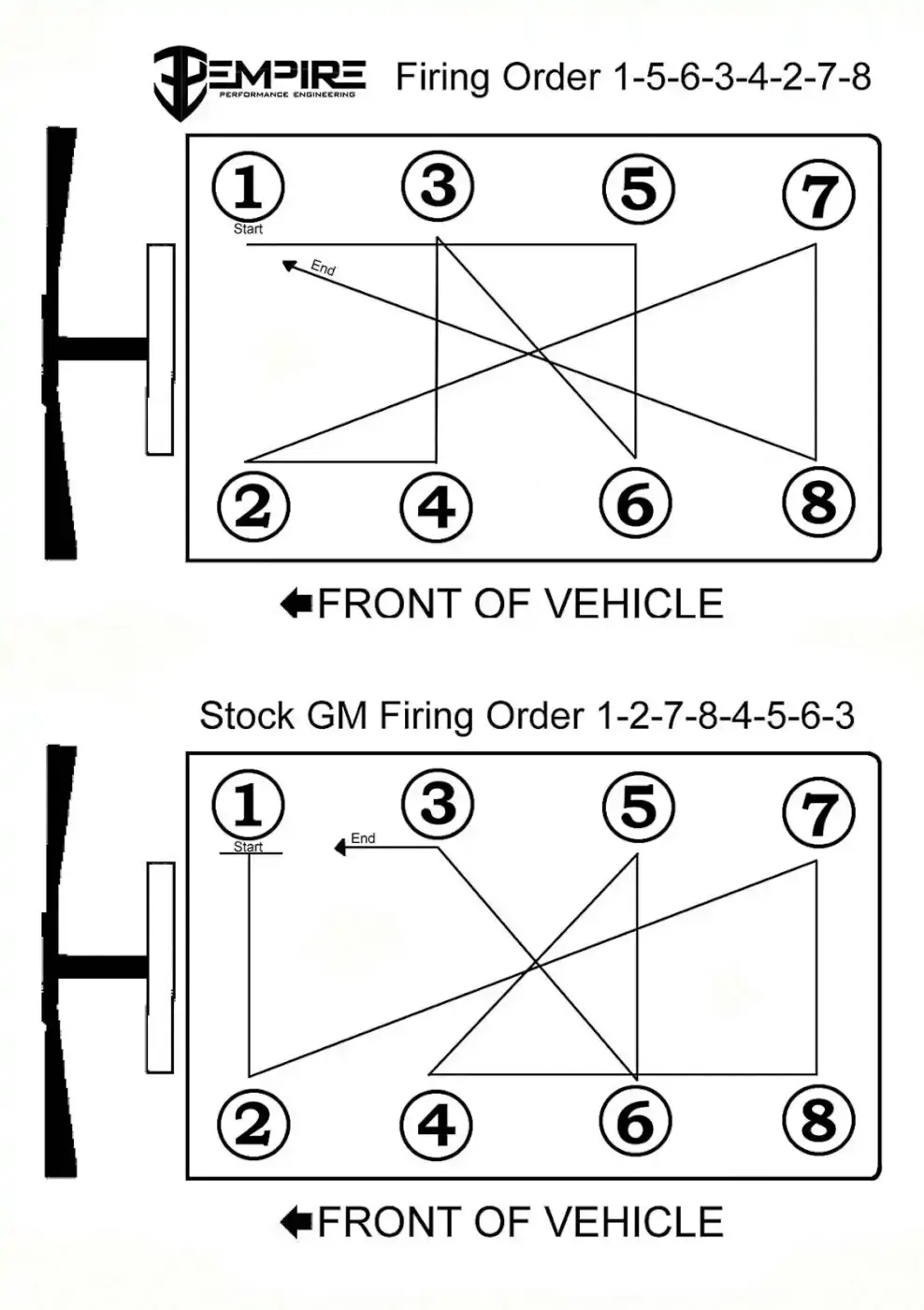

1 This illustration shows the difference between the factory GM firing order (bottom) and the new firing order of the Alternate Firing Camshaft developed by Empire Diesel. The GM Duramax has had troubles with crankshaft failures in high-horsepower applications, with the snout breaking off due to extreme stress load. The altered firing order helps to more evenly distribute those stresses across the entire length of the crankshaft, improving engine harmonics and durability.

2 Unfortunately, in the Duramax application, swapping out the camshaft isn’t an easy Saturday job, as the entire engine needs to be torn down to make the change properly. In most cases, making a camshaft swap would be recommended only when doing other internal engine work. Because of this, most camshafts are installed with multiple other changes like billet connecting rods, performance pistons, and cylinder head modifications, so it’s hard to get true back-to-back comparisons on a simple “cam swap.”

DW: When did Empire Diesel start to notice these problems and try to resolve them with this new camshaft design?

CR: In 2009 we continued to see Duramax crankshaft failures at around the 1000-horsepower mark. It seemed to be a roadblock we had to get around to push performance any further. We all sat down together to brainstorm, trying to come up with a simple and cost-effective way to make broken crankshafts a thing of the past. Looking at similar engine failures in our early performance gas engine background, these issues were more than likely related to harmonics and stress within the engine. There are only two legitimate ways to overcome that. One is to back down the power output, and the other is try to more evenly disperse that current stress across the crankshaft.

DW: When it came time to actually change the firing order, how did you determine the order for the injection events?

CR: Looking at our options for firing order really just took a pencil, paper and some pretty terrible drawing skills. We basically just had to connect the dots to see which pattern would distribute the stresses of each cylinder’s combustion event on the crankshaft most efficiently.

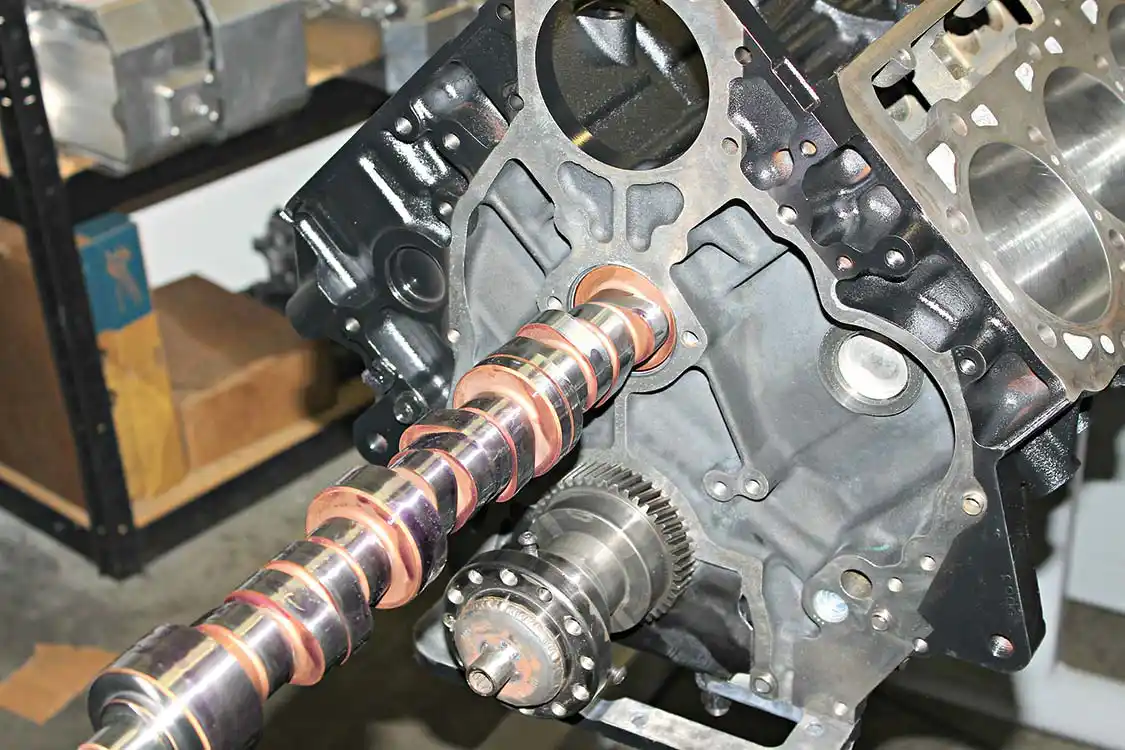

3 After lubing the camshaft with the correct break in oil, it must be slid into the engine block using extreme care. The smallest ding or nick in one of the cam journals or lifter lobes can cause serious engine problems that could lead to poor engine performance and even a catastrophic failure.

DW: Once the firing order was determined, was it just as simple as making a new camshaft and replacing the stock cam?

CR: In theory, yes, but it wasn’t quite that easy. Back then the major performance camshaft manufacturers were only up to speed with gasoline engines and wanted nothing to do with diesels. It was a pretty long, drawn-out struggle getting somebody to produce exactly what we were needing for what they referred to as a ‘limited market’ at a reasonable price. After months of calling and tons of legwork we finally had the first alternate fire order Duramax camshaft in our hands. This wasn’t the end, however, as we still needed to figure out how to get the ECM [engine control module] to recognize the change in camshaft profile. After some investigation we discovered all the ECM needed to initiate the firing order of the injectors was to see the trigger on the tone wheel. This trigger tells the ECM when it needs to fire the #1 cylinder injector. After that, the ECM doesn’t care in what order the remaining seven injectors fire. So if an injector signal was moved from its original intended firing location, as long as the moved injector signal matched the opening or closing strokes of valves in that particular cylinder the engine would run like factory.

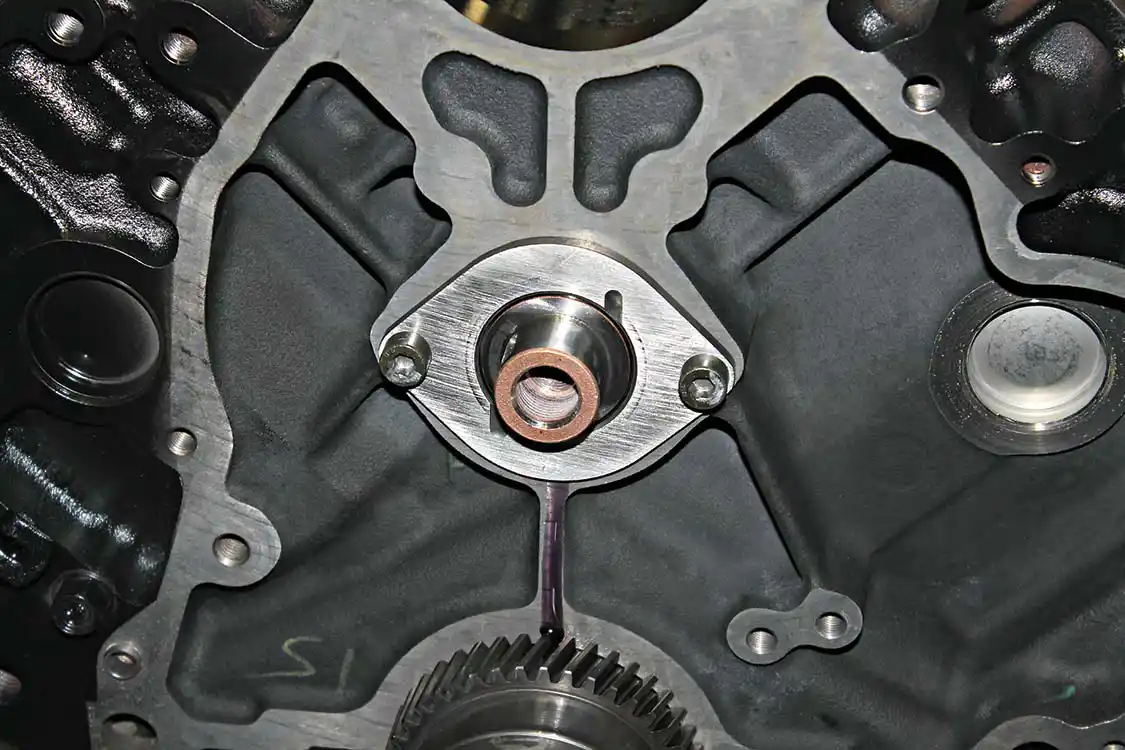

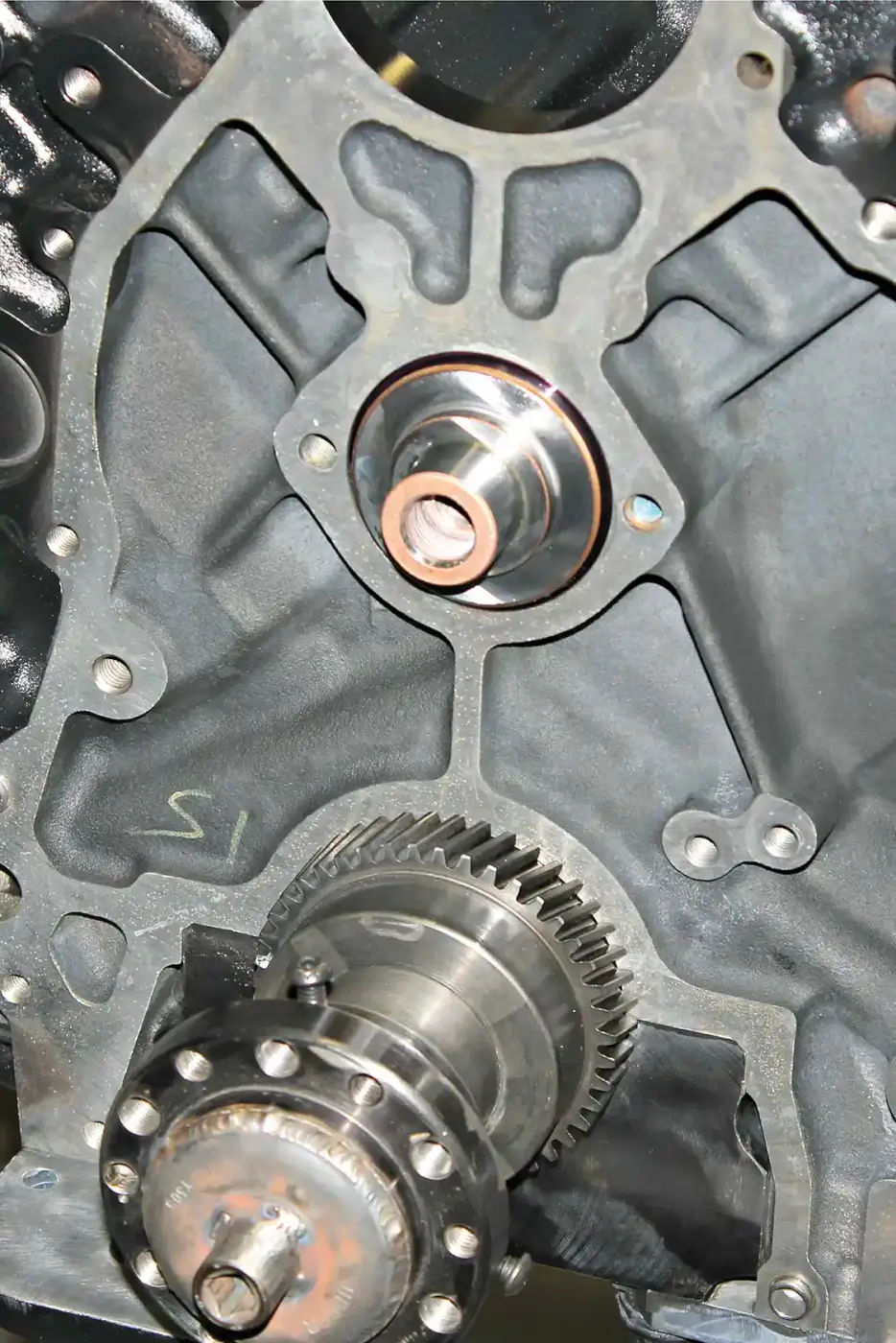

4 Once installed in the engine block, the camshaft has a small two-bolt retainer that holds it in place. All performance camshafts offered by Empire Diesel come pre-machined with a keyway on the end to help with locating the timing gear set. The keyway is a much stronger design than the factory dowel pin, which has been known to shear off in higher-performance applications.

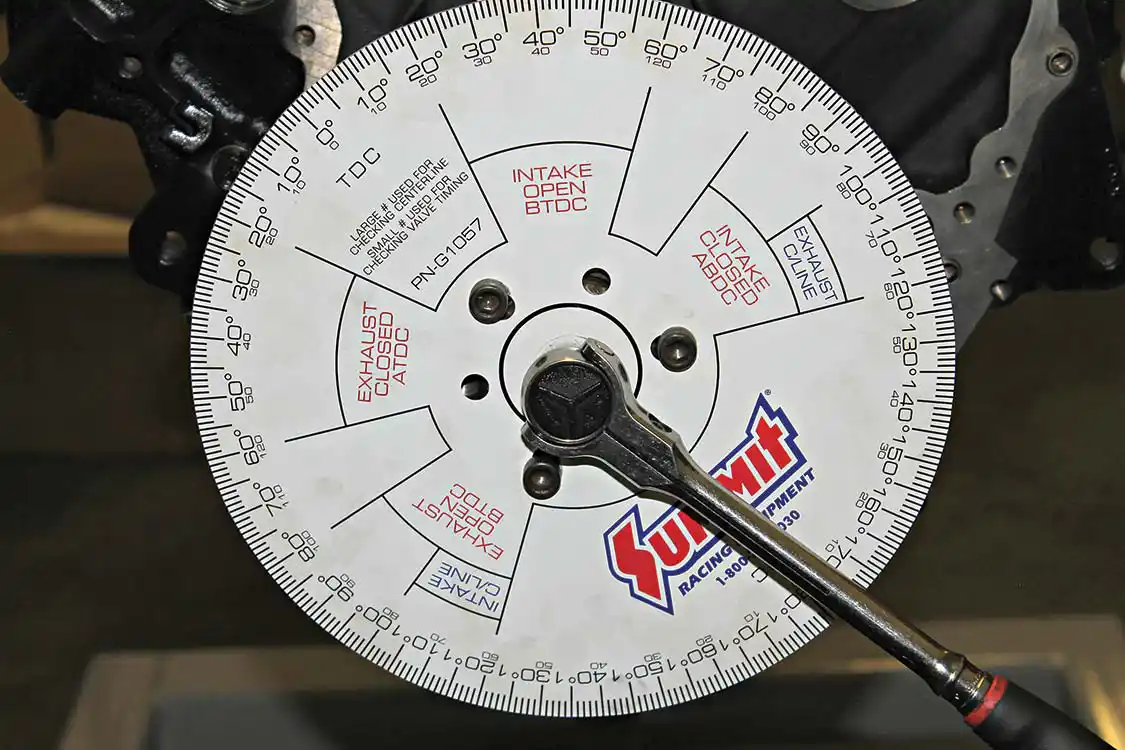

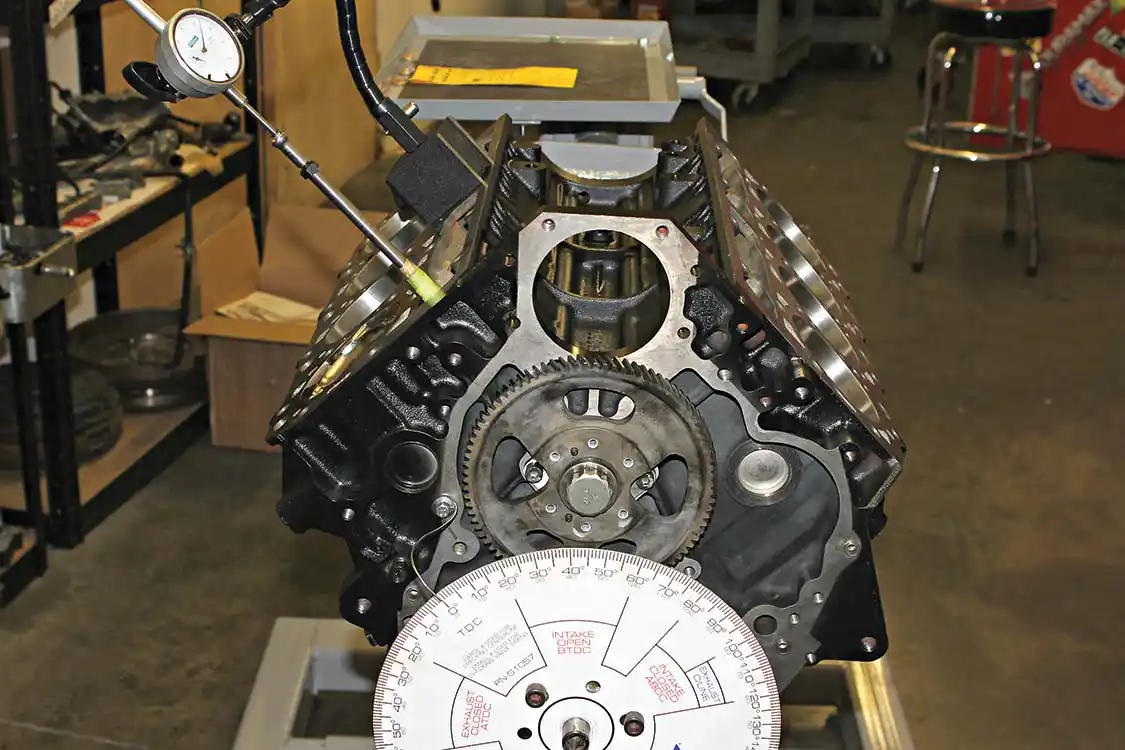

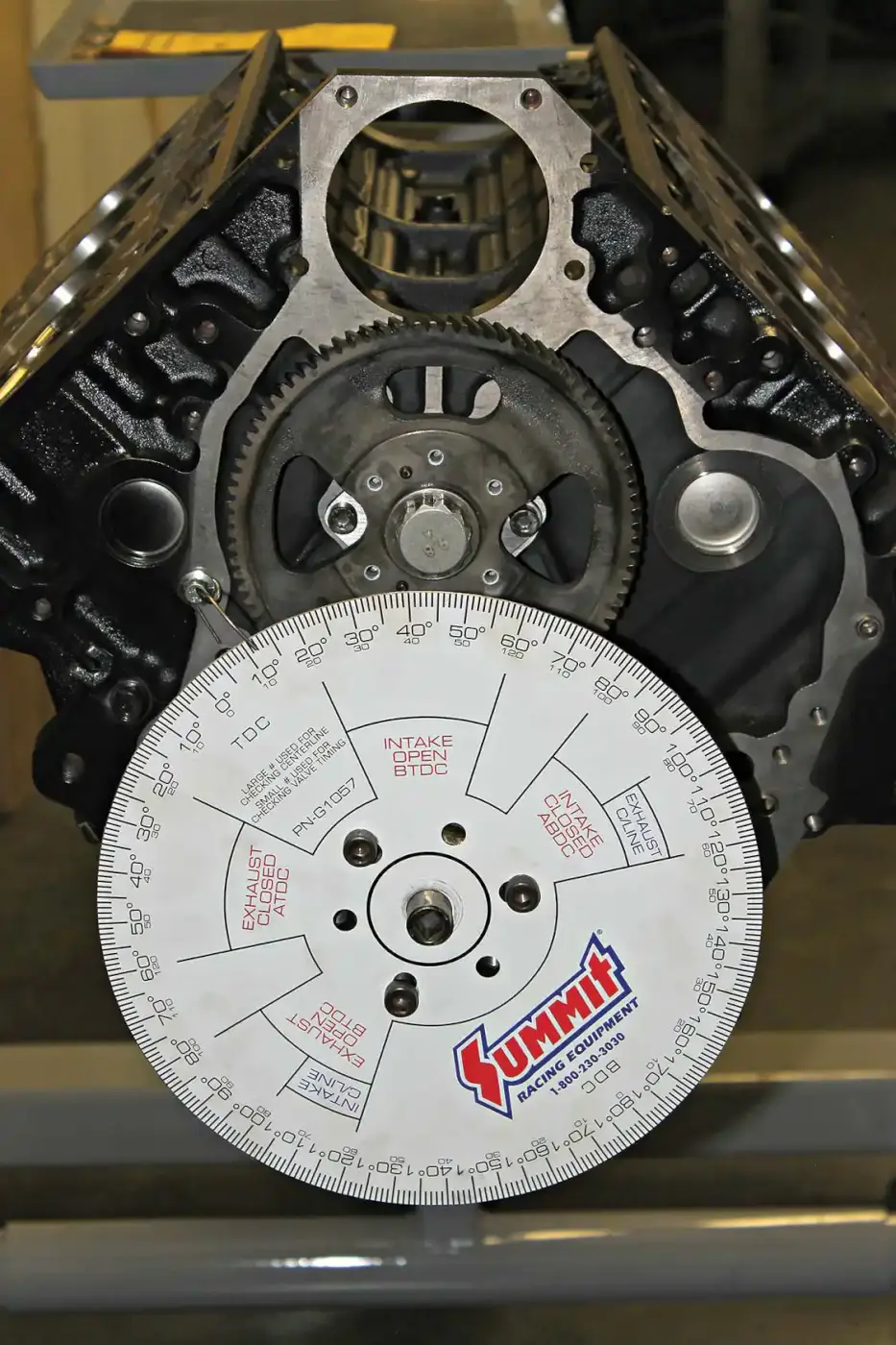

5 When installing a camshaft it’s vital that it be “degreed” using a degree wheel to check that the camshafts lobes will open each cylinder’s intake/exhaust valves at the proper moment. The camshaft comes with a “cam card” that tells the engine builder exactly what the cam’s specifications are and at what degree the camshaft should be set at in correlation to the #1 piston’s top dead center position.

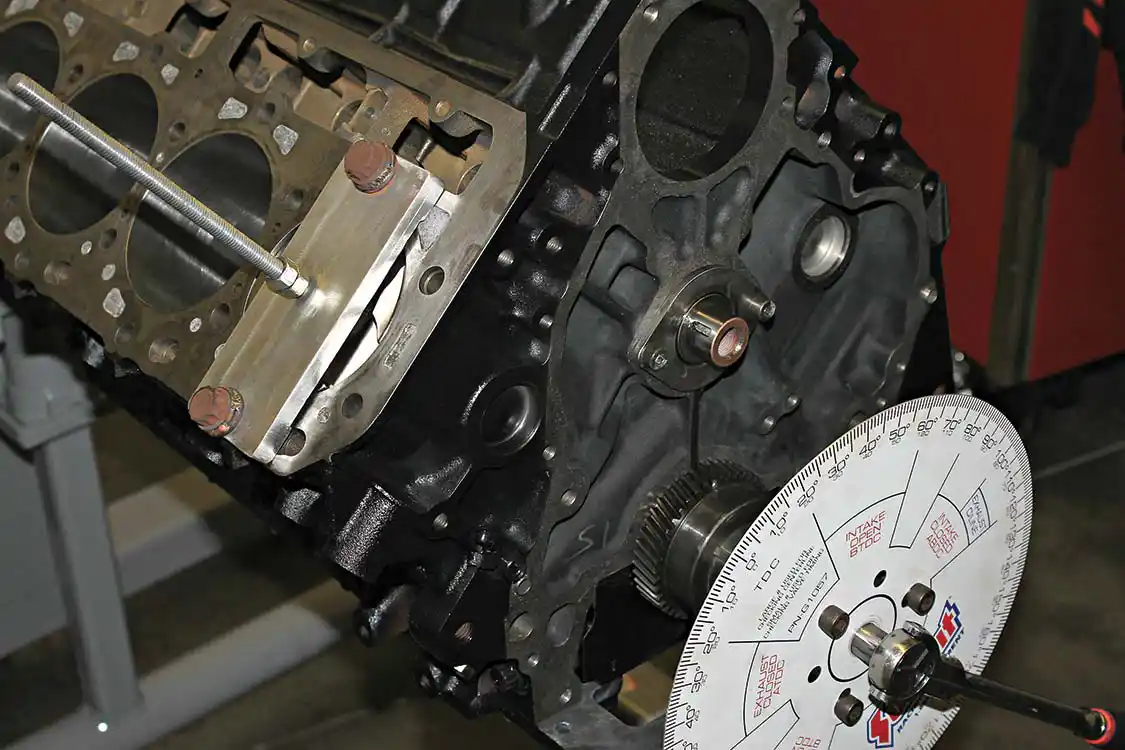

6 Using a strap plate, Empire Diesel technicians check for true top dead center (TDC) of the #1 piston before going further with the cam installation and degreeing process. A reputable engine builder may have another method of checking this, but getting the camshaft set perfectly will ensure that maximum valve lift and duration is held without damaging pistons or cylinder heads due to incorrect clearance.

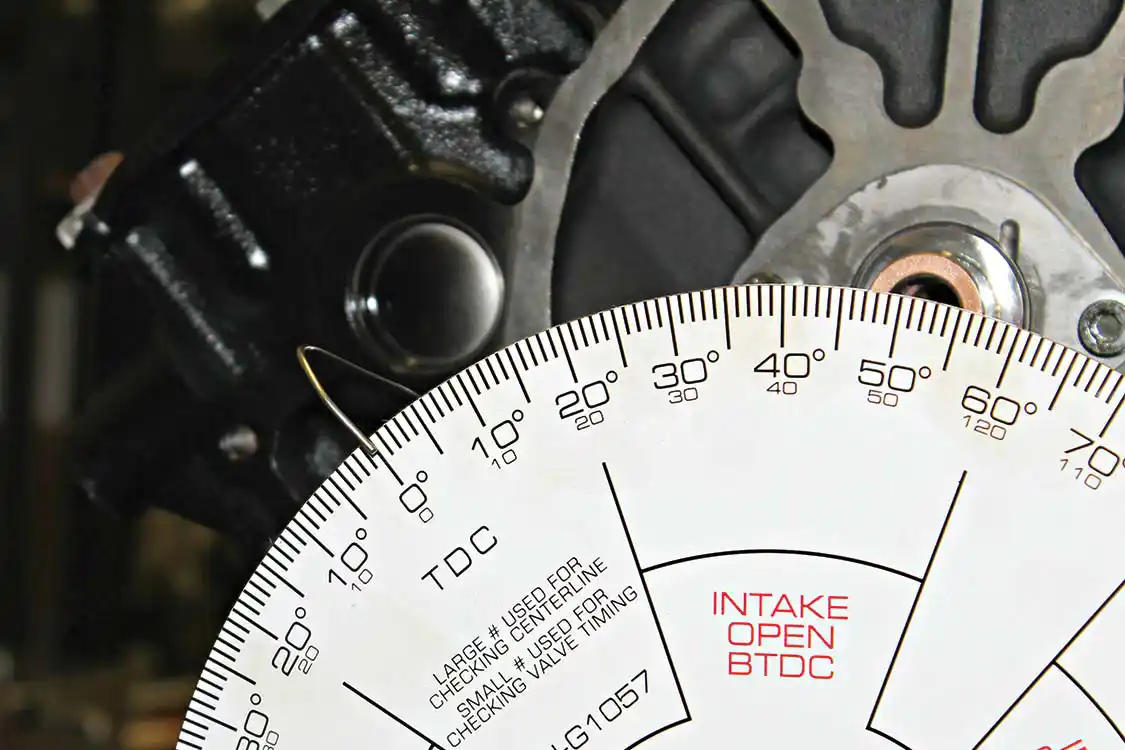

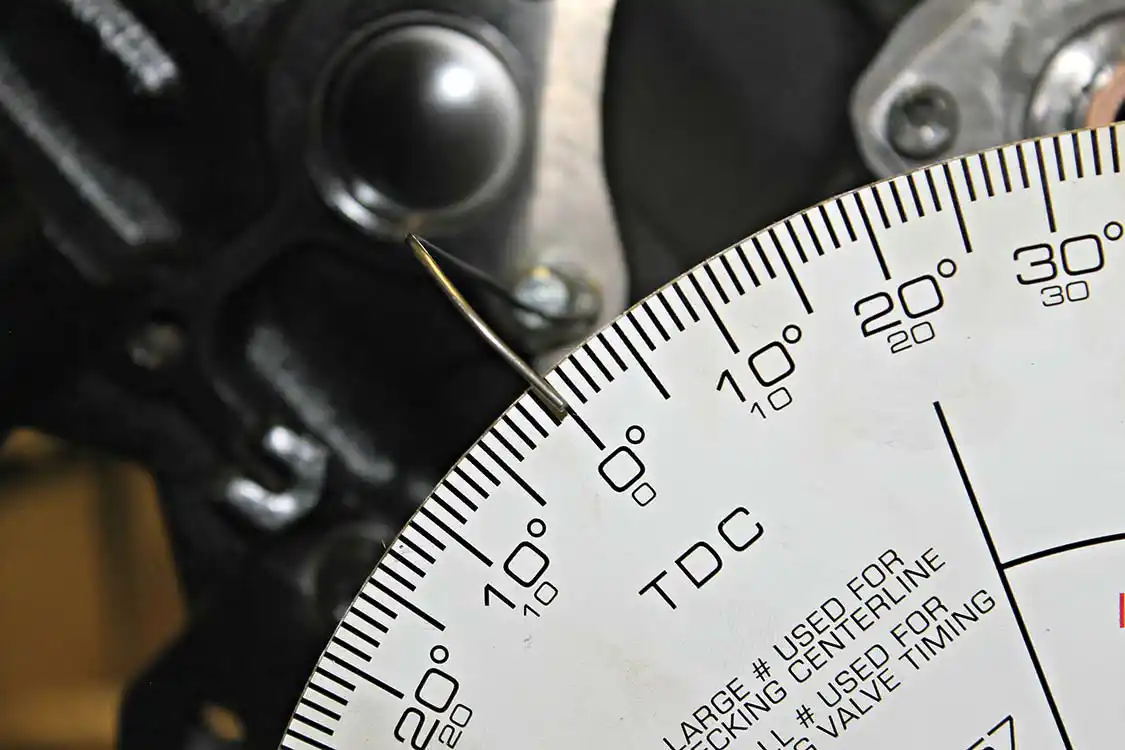

7 & 8 Using a small wire attached to the engine block, once true TDC is found, the timing wheel can be set at zero according to the pointer. The engine builder then rotates the engine clockwise until the #1 piston again reaches TDC. A mark is then made on the degree wheel where the pointer shows its current location. The crankshaft should then be turned clockwise until #1 TDC is reached again. If the degree wheel was setup properly, the first recorded timing mark and the second should be equal.

DW: So what electronic changes are required to adjust the injector firing order when making this camshaft change?

CR: There are two ways to go about the electronics for this. One would be moving and extending your factory injector wiring harnesses and the other would be moving pin locations on the injection harness itself. We’ve heard that EFILive is currently working on new tables that will allow firing order changes to be done within their custom tuning software. However, even if this does become an option, while it would be easier, we’d still suggest making the change by doing the pin swap as there would be less risk of causing engine problems from the possibility of loading the wrong tune.

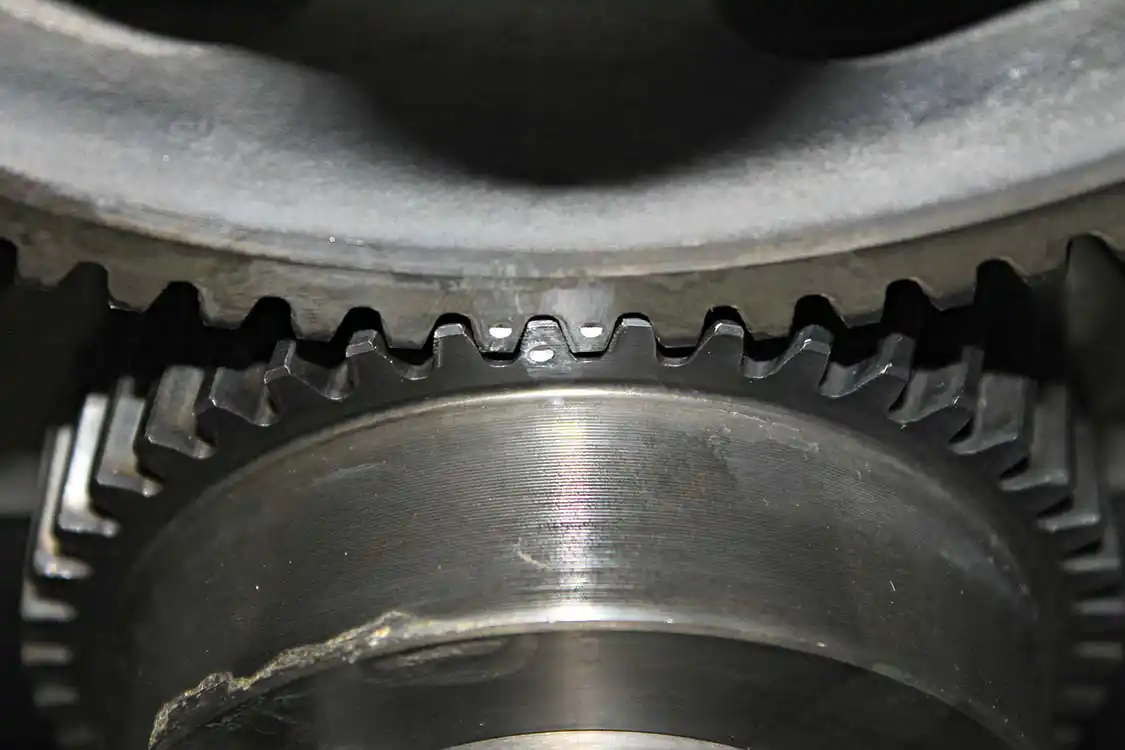

9 & 10 The timing marks on both the crankshaft and camshaft need to align with each other as well; this ensures the lifter and valve movement happens as it should. Depending on where the camshaft’s keyway has been machined, these timing marks may be off by up to four degrees, so Empire Diesel offers a modified camshaft gear and four offset keyways to get the camshaft degree perfect when setting up the motor.

DW: After running this Alternate Fire Camshaft and selling them to so many customers through the years, has your initial camshaft profile stayed the same or do you continue to try new things to improve performance and reliability?

CR: Over the past five years we have had great success with this process and helping to keep the Duramax crankshafts and engines alive. Some customers think this alternate firing order also better distributes air through the intake manifold for better combustion, but we haven’t been able to verify this. Since that early testing our camshaft profiles have become more aggressive and we now offer a Street or Competition version, along with being able to build a custom profile to fit a customer’s specific requirements. This past 2014 sled pulling season was very successful for us and our customers running our camshaft designs. While we would love to give specific examples of each of our customer’s accomplishments, many are competing against each other and we need to keep some of that information to ourselves. We have recently teamed up with Wagler Competition Products and have seen extremely impressive results when our cam profiles are paired with Jeremy Wagler’s Duramax cylinder head program.

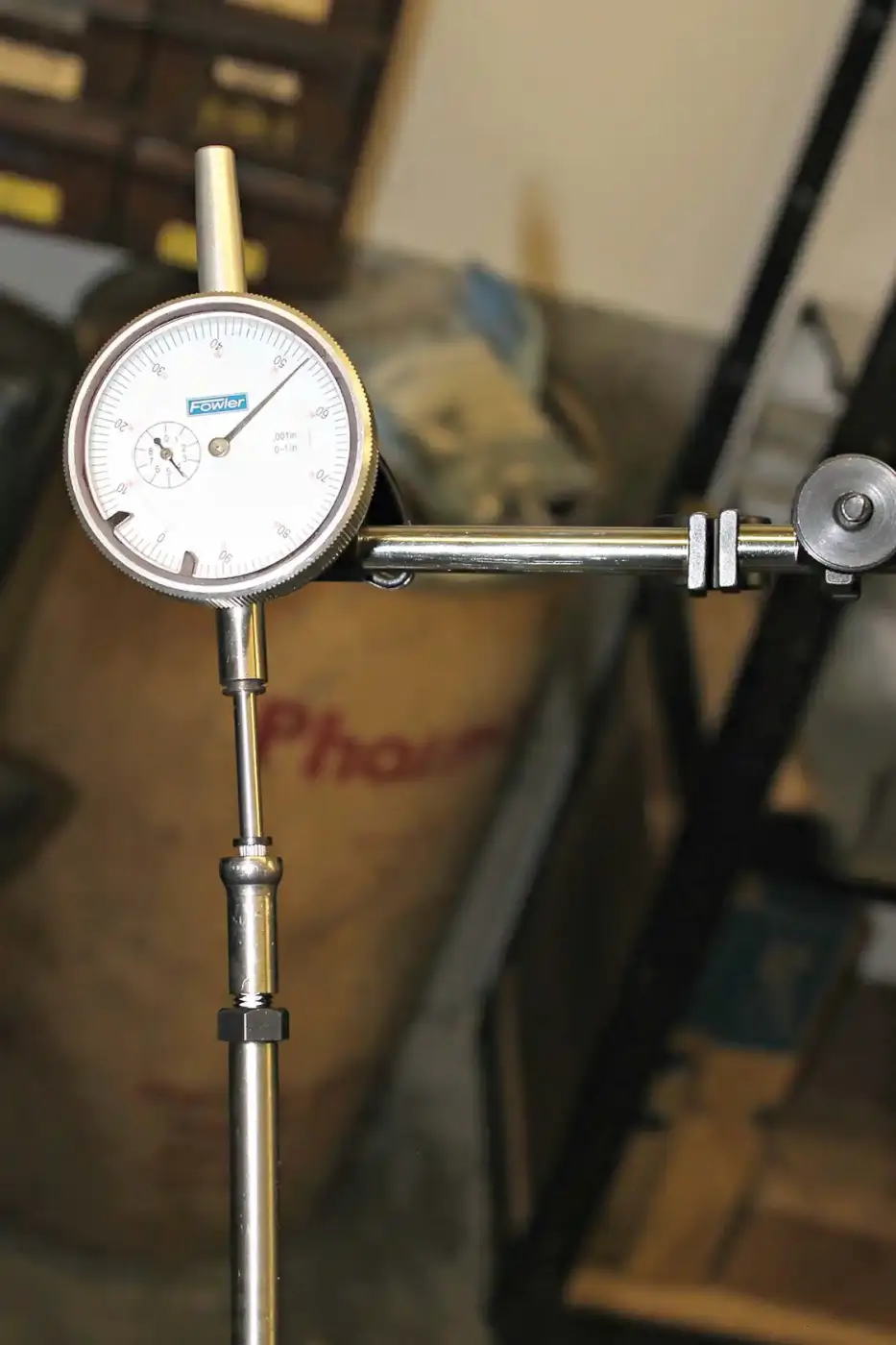

11 Once the degree wheel and pointer location have been checked, a lifter and pushrod can be dropped down into the #1 cylinder and a dial indicator setup to measure lifter travel. By rotating the engine a few times, the cam degree process will start when the lifter is on the “heel” or the cam base circle, which is the lowest point in its travel. The dial indicator should then be zeroed here.

DW: What kind of performance gains can be expected from making this camshaft change?

CR: In our early engine dyno testing in 2009-2010 we immediately noticed a much smoother idle along with a noticeable difference in engine tone at higher rpm. To date, the biggest horsepower we’ve seen from this camshaft over a stock cam is about 28 hp on the engine dyno. But this wasn’t developed with more horsepower in mind. We were really looking to improve durability at higher horsepower levels, which this technology has done. While this Alternate Fire technology has made major improvements when it comes to durability and pushing the horsepower limits of the Duramax platform, nothing is ever a sure thing. This camshaft design is not the “golden ticket” to guarantee your engine won’t fail, as your choice of other parts, assembly and tuning is just as vital. There are a few other little tricks we do to the engines we build in-house, but we can’t give away all our secrets.

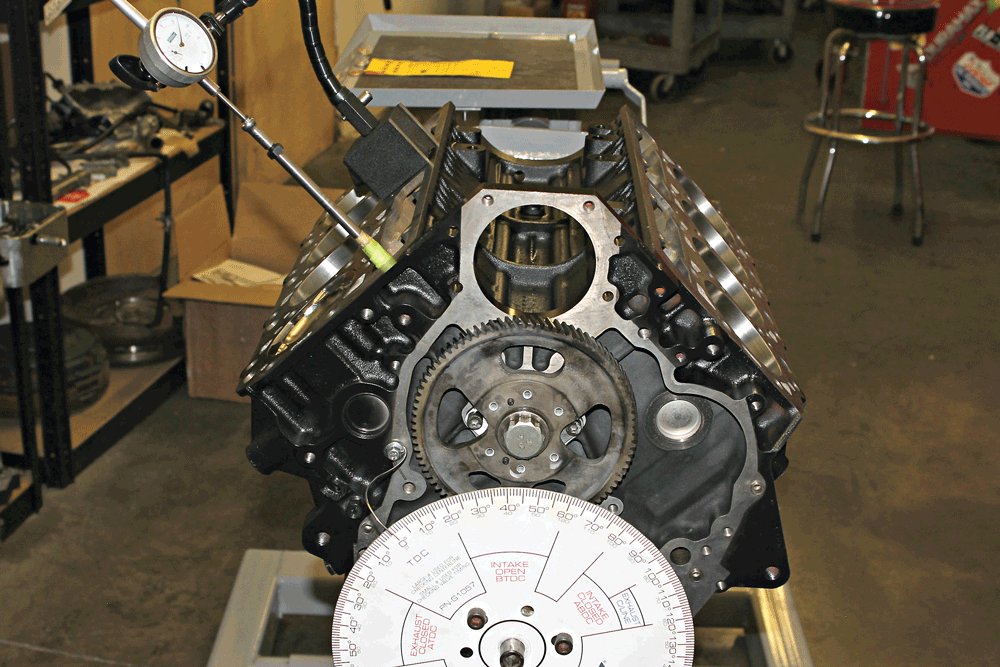

12 The engine’s crankshaft is then rotated clockwise one last time until the dial indicator reads 0.050. The reading seen on the degree wheel at the pointer at this location is the lift on the camshaft with the intake lobe opening. You can now compare this reading to what is found on the cam card supplied with the camshaft. If the numbers match, the camshaft is set correctly and you can move on with the build. If the numbers are not the same, an offset timing key or changes with the timing gear will need to be made. Factory specs allow for a +/-1 degree tolerance due to gear lash and wear on the teeth.

DW: Are the alternate fire camshafts only required in full competition builds?

CR: We actually recommend making this conversion in any engine build from a mild towing and street application to our all-out 1,500-plus hp competition builds. We’ve seen completely bone-stock trucks come through our shop with broken crank snouts so we offer our Alternate Fire Camshaft in multiple profiles to suit each application. Our mild Street grind works in an otherwise stock motor with stock pistons, no valve reliefs required. These can help with the power and torque curve making the truck better to daily drive and tow with. Our more performance-oriented grinds get much more aggressive and require other engine modifications to work properly. We also offer the camshaft as a “blank” so it can be purchased and sent to your preferred engine builder or machine shop to accept the profile they prefer. DW

SOURCE
Empire Diesel
563-588-2708
www.EmpireDieselPerformance.com

FREQUENTLY ASKED QUESTIONS

Should the Firing Order Be Changed on a Used Crankshaft?

Considering the Condition of the Crankshaft

When contemplating whether to change the firing order on a used crankshaft, the first factor to consider is the existing stress on the component. A crankshaft that has been utilized with its original firing order has already undergone significant stress and wear over time.

Impact of Altering the Firing Order

Switching to an alternate firing order can introduce different stress dynamics to the crankshaft. This change might exacerbate existing weaknesses, increasing the risk of failure. This is particularly true for crankshafts that have already seen considerable mileage or use.

Upgrade Options

To better handle the revised firing order, one might consider upgrading with a new crankshaft. A new crankshaft, particularly one designed to endure an alternate firing order, is well-equipped to manage the additional stresses without compromising performance.

Conclusion

In conclusion, while changing the firing order on a used crankshaft is possible, it is generally advisable to replace it with a new one to ensure reliability and longevity. Investing in a new component can prevent potential issues and sustain optimal engine performance.

What is a common firing order for a straight-six engine?

A typical firing sequence for a straight-six engine follows the pattern of 1-5-3-6-2-4. This order ensures the engine runs smoothly by evenly distributing power strokes, which reduces vibration and enhances performance. Many automotive manufacturers, like BMW and Jaguar, utilize this configuration for its efficiency and reliability. By coordinating the firing sequence, straight-six engines achieve a balanced operation, making them a popular choice in various vehicles.

What diesel parts might be needed to reinforce a Duramax engine when changing the firing order?

When altering the firing order of a Duramax engine, several diesel parts may be necessary to properly reinforce the engine and ensure optimal performance. Here’s a rundown of what you might need:

Essential Parts

Injector Wiring Harness Extensions: These are crucial for adjusting your engine’s electronics to accommodate the new firing sequence.
Pin Swapping in the Injection Harness: This can be an effective method to align the electrical system with the modified firing order.

Additional Considerations

Aftermarket Fuel Injectors: Upgrading to high-performance injectors may enhance fuel delivery and improve efficiency.
ECU Tuning: Professional tuning of the engine control unit can optimize engine performance around the new firing pattern.
High-Quality Filters: Consider upgrading to better fuel and oil filters to ensure clean operation and prolonged engine life.

Ensuring these components are properly selected and installed can lead to improved engine output and reliability. Always consult with experienced professionals to confirm compatibility and performance gains.

How does firing order affect engine performance?

Firing order plays a crucial role in engine performance by influencing several key factors:

Vibration and Sound: The sequence in which cylinders fire directly impacts the engine’s vibration and sound profile. By altering the firing order, we can achieve a more balanced engine operation, reducing unwanted vibrations that can lead to component fatigue over time.
Power Output Distribution: Traditional firing orders can concentrate stress on specific sections of the crankshaft, leading to premature wear or failure. By spreading the power evenly across the crankshaft, the modified order helps to mitigate this risk, enhancing durability.

Unlike gas engines, where changing the firing order can sometimes lead to power gains, the alternate firing order for diesel engines primarily aims to prolong the crankshaft’s lifespan and stabilize the engine, especially at higher RPMs. There’s something to do with the Duramax engines’ harmonics at higher rpm and bigger power levels that causes a lot of stress on the crank due to the factory firing order. By moving a portion of the power absorption to the rear of the crankshaft, the modified firing order allows the flexplate to absorb excess forces, contributing to a more robust and reliable engine performance.

This strategic adjustment is not just about preventing part breakage but also about optimizing the overall harmony of the engine to support additional power modifications, ensuring a smoother and more efficient ride across all applications.

How does the effect of firing order changes differ between gas and diesel engines?**

In diesel engines, such as those using the alternate firing order, there might not be substantial power gains compared to gas engines. However, the modification can still offer benefits by enhancing the durability and stability of the engine components.

How does the alternate firing order impact the lifespan of the crankshaft?**

While an alternate firing order may not significantly boost power, it can extend the crankshaft’s lifespan. By redistributing the forces, the crankshaft experiences less concentrated stress, which helps stabilize the engine and accommodates further power modifications.

What are the solutions to firing order-related issues in engines?**

One common solution to firing order-related challenges is to modify the firing sequence to more evenly distribute power throughout the crankshaft. This helps prevent excessive force on the crankshaft’s front portion, reducing potential weaknesses.

How does firing order influence crankshaft design?**

The firing order is crucial in shaping the crankshaft’s design, as it can either distribute forces evenly or concentrate them in certain areas. A poorly chosen firing order can lead to stress points that may weaken the crankshaft over time.

How does firing order affect engine vibration and sound?**

The firing order plays a significant role in determining the engine’s vibration and sound characteristics. By altering the sequence in which cylinders fire, the engine’s operational smoothness and acoustic profile can be greatly influenced.

Can engines operate under different firing orders from stock, and what effect does this have?

DIESEL WORLD: What’s the reasoning behind the alternate firing order camshaft for the 6.6L Duramax?

Some engines can indeed operate under different firing orders from stock, which may increase the power output by distributing power more evenly throughout the entire crankshaft. This adjustment helps prevent excessive force on the front part of the crankshaft, enhancing durability. An alternate-firing camshaft can move a portion of the power to the rear of the crankshaft, allowing it to be absorbed by the flexplate. While in gas engines, this change doesn’t always result in significant power gains, it is beneficial for potentially prolonging the crankshaft’s lifespan and stabilizing the engine for future power modifications.

By addressing these crucial aspects, we aim not only to enhance performance but also to ensure the longevity and reliability of the engine, making it a more robust choice for both everyday use and high-performance applications.

Is there a difference in the effects of alternate firing orders between gas and diesel engines?

Yes, while alternate firing orders in gas engines might not lead to significant power gains, they can still offer benefits like improved engine stability. In diesel engines, the focus is more on durability and reducing stress.

How does changing the firing order affect engine durability and longevity?

An alternate firing order can potentially extend the lifespan of the crankshaft and enhance engine stability, which may be advantageous for further power modifications.

Can changing the firing order increase power output?

Yes, altering the firing order can potentially increase power output by distributing the force more evenly across the crankshaft, rather than concentrating it at the front.

What does firing order refer to in an internal combustion engine?

CHAD REMAKEL: Firing order refers to the ignition sequence of cylinders in an internal combustion engine. For gas engines, this sequence dictates the order in which spark plugs fire, while in diesel engines, it specifies the order of fuel injection into each cylinder. This sequence is crucial as it affects engine vibration, sound, and power output, and it heavily influences crankshaft design.

The main reason for modifying the Duramax firing order with the camshaft is to relieve stress on the front portion of the crankshaft in higher performance applications. The factory firing is 1-2-7-8-4-5-6-3, but this new camshaft design changes that to 1-5-6-3-4-2-7-8.

Changing an engine’s firing order isn’t a new science, as GM gas guys have been doing it for years with the LS engine 4-7 swap. It’s just something we wanted to try and help reduce part breakage in the Duramax application.

By understanding both the fundamental role of the firing order and the specific modifications for performance, you can appreciate the balance between engine design and the pursuit of durability and power.

How does firing order influence engine design?

Firing order significantly affects the design of the crankshaft, as it must be engineered to accommodate the specific sequence of cylinder ignitions, ensuring balance and durability.

How does firing order affect engine performance?

The firing order plays a crucial role in influencing engine vibration, the sound it produces, and its overall power output, impacting the smoothness and efficiency of the engine’s operation.

What is firing order in an internal combustion engine?

Firing order is the sequence in which each cylinder in an internal combustion engine ignites. For gas engines, it involves the operation sequence of spark plugs, while for diesel engines, it refers to the order in which fuel is injected into the cylinders.

Do V8 engines have different firing orders even under the same manufacturer?

Every engine platform within the Duramax family—including the LB7, LLY, LBZ, LMM, and LML—suffers from these issues with the crankshaft breaking just behind the snout back to the #3 rod journal. We’ve seen these failures on everything from mildly modified daily drivers to full-blown competition engines with internally balanced aftermarket billet cranks. There’s something to do with the Duramax engines’ harmonics at higher rpm and bigger power levels that causes a lot of stress on the crank due to the factory firing order.

It’s important to note that numerous firing orders exist for V8 engines, often differing even under the same manufacturer. This variability is not unique to diesel engines; it extends to gasoline engines as well. Manufacturers like GM have long experimented with different firing sequences to optimize engine performance and durability. The practice of altering firing orders to suit specific performance needs highlights the complexity and versatility inherent in V8 engine design, showcasing how even slight adjustments can lead to significant improvements in engine longevity and efficiency.

Can firing orders differ within engines from the same manufacturer?

Yes, it’s common for firing orders to vary even among engines produced by the same manufacturer.

Do V8 engines have different firing orders?

Yes, V8 engines can have a variety of firing orders.

What are some recommended upgrades when changing the firing order on a Duramax engine?

Unfortunately, in the Duramax application, swapping out the camshaft isn’t an easy Saturday job, as the entire engine needs to be torn down to make the change properly. In most cases, making a camshaft swap would be recommended only when doing other internal engine work. Because of this, most camshafts are installed with multiple other changes like billet connecting rods, performance pistons, and cylinder head modifications, so it’s hard to get true back-to-back comparisons on a simple “cam swap.”

However, when considering changes such as altering the firing order, there are additional upgrades that can enhance your engine’s performance and reliability:

Billet Narrow-Rod Crank: Upgrading to a billet, narrow-rod crank can significantly increase the strength of the fillet radius. This is crucial when altering the firing order, as it ensures the engine’s structural integrity is maintained.
Injector Wiring Harness Extensions: To adjust your electronics for the alternate firing order, you might need extensions for your factory injector wiring harness. This facilitates the necessary electronic adjustments seamlessly.
Injection Harness Pin Swap: An alternative solution is swapping pins in the injection harness. This approach offers flexibility in managing the new firing order without extensive rewiring.

When undertaking these modifications, it’s essential to consider them as part of a comprehensive engine upgrade strategy, ensuring all components work harmoniously for optimal performance.

What alternative methods are available for adjusting the electronics when changing the firing order?

Another method is to rearrange the pins within the injection harness to achieve the desired firing order adjustments.

What electronic modifications are necessary when changing the firing order?

You may need to extend your factory injector wiring harness to accommodate the new firing order electronically.

What structural upgrades are recommended for increased strength when changing the firing order?

For enhanced durability, consider upgrading to a crankshaft with a narrow-rod design, which boosts the robustness of the fillet radius.
