Maximize Durability: Rebuilding Your 271F Transfer Case

OUR 271F TRANSFER CASE GET NEW LIFE

When it comes to maintaining the durability and performance of your 4WD diesel truck, few components are as critical as the transfer case. For those who rely on a 271F transfer case—a staple in many heavy-duty Ford trucks—routine maintenance and timely rebuilds can make all the difference in ensuring reliability both on and off the road.

Torque King 4×4, known for its premium-quality drivetrain parts, offers everything you need to breathe new life into your 271F transfer case. Here’s a step-by-step guide to rebuilding your transfer case using Torque King’s trusted components on our 1994 Ram 2500. While we really didn’t need to rebuild out transfer case, it was a good idea to break into it and freshen it up for our racing ventures this year.

Step 1: Disassemble the Transfer Case

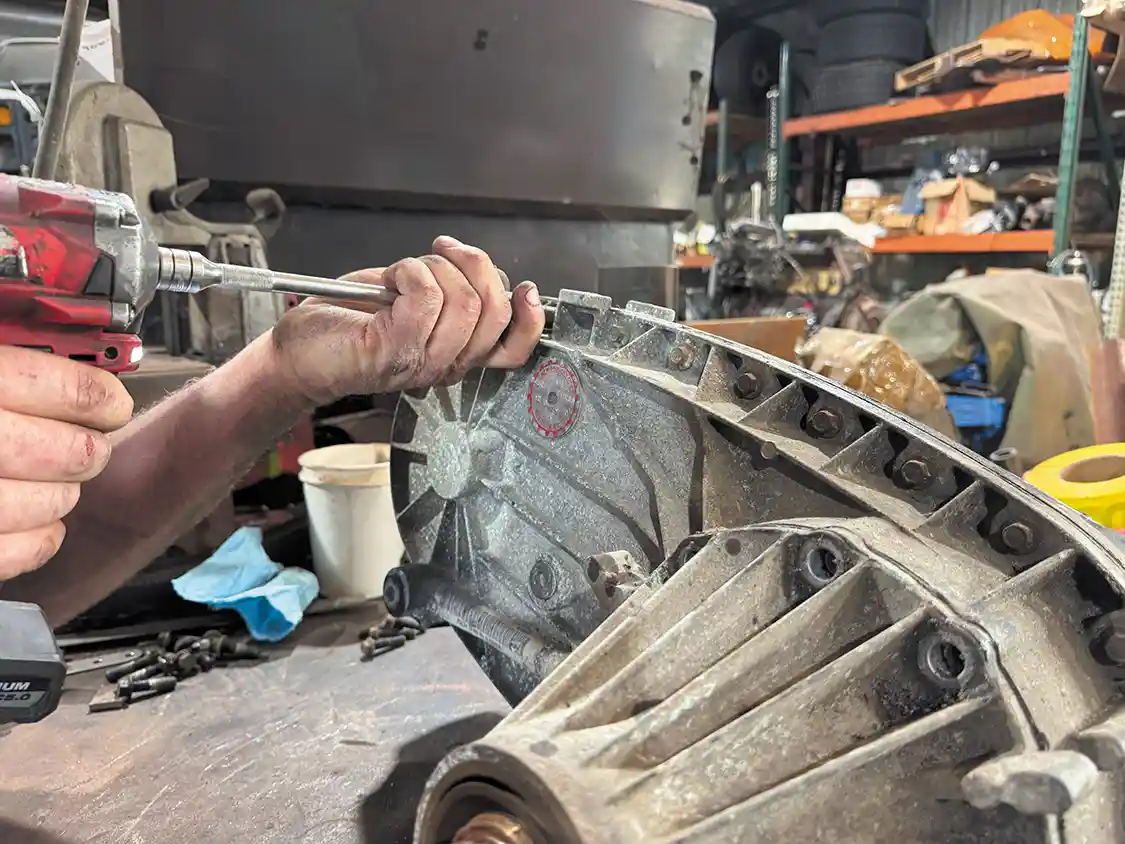

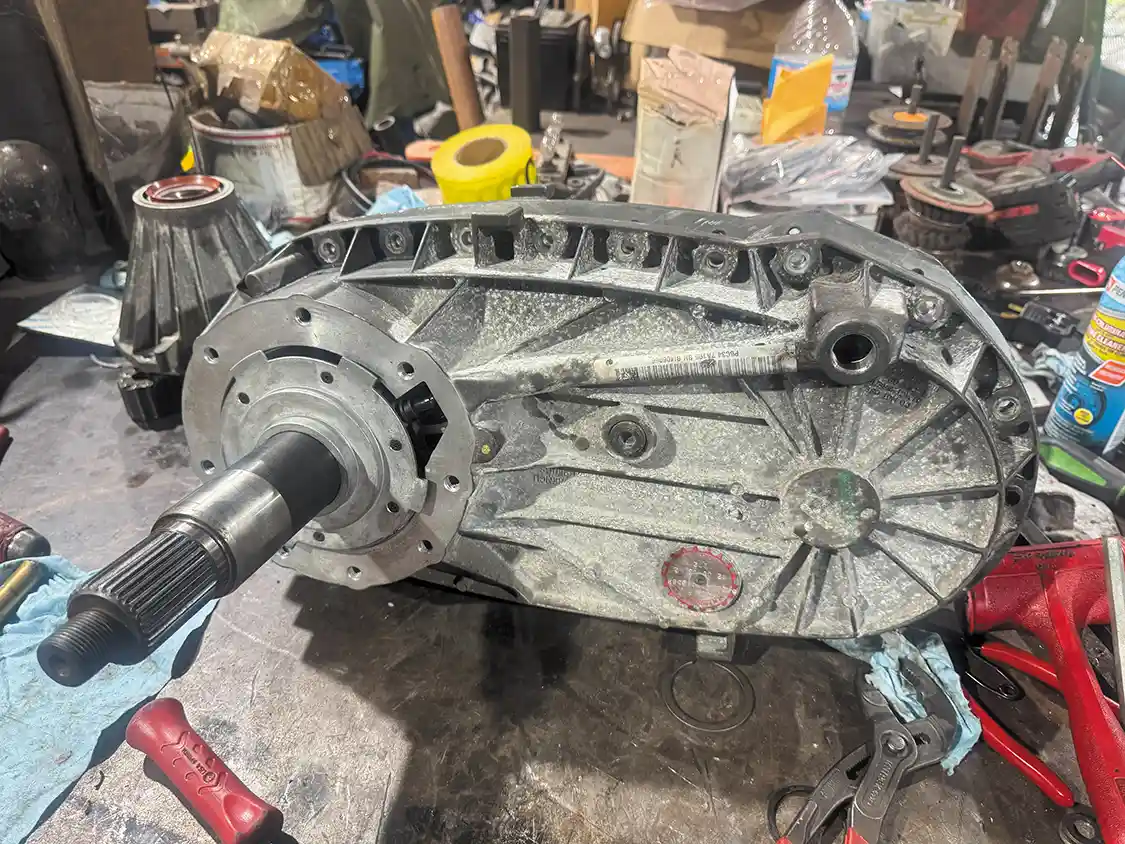

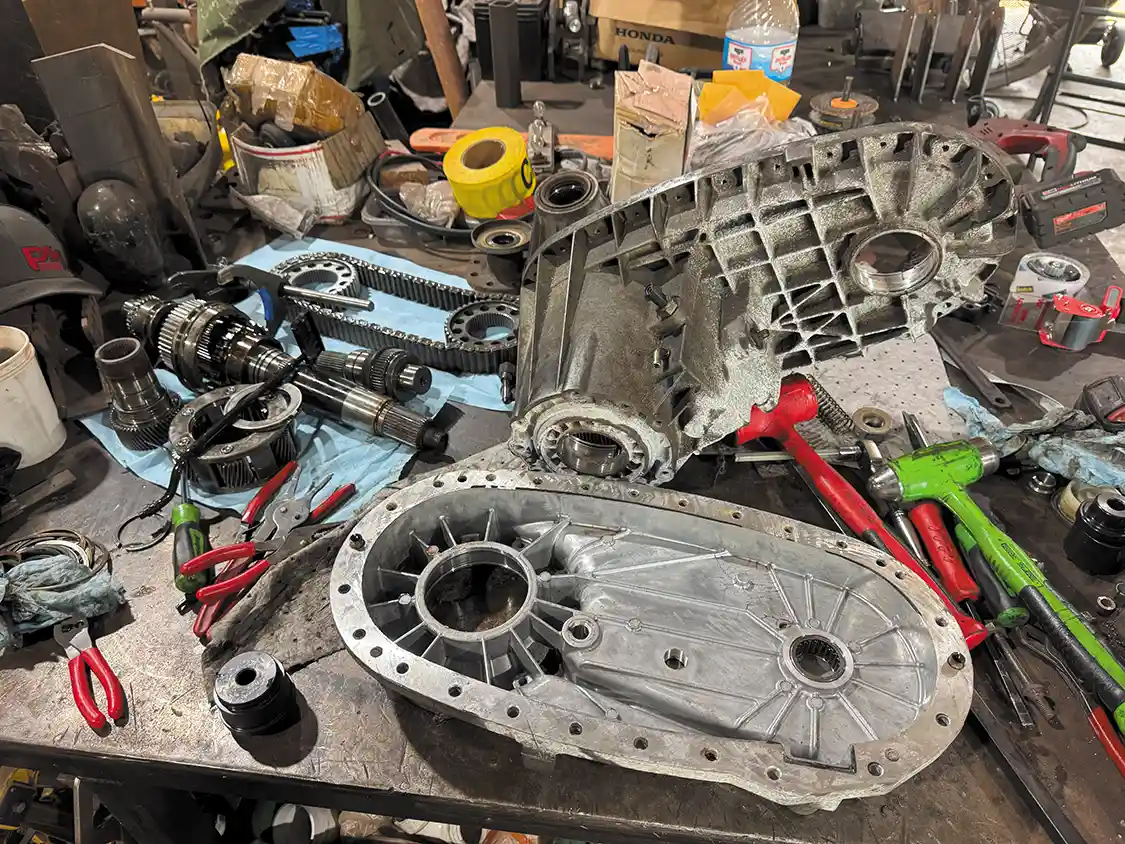

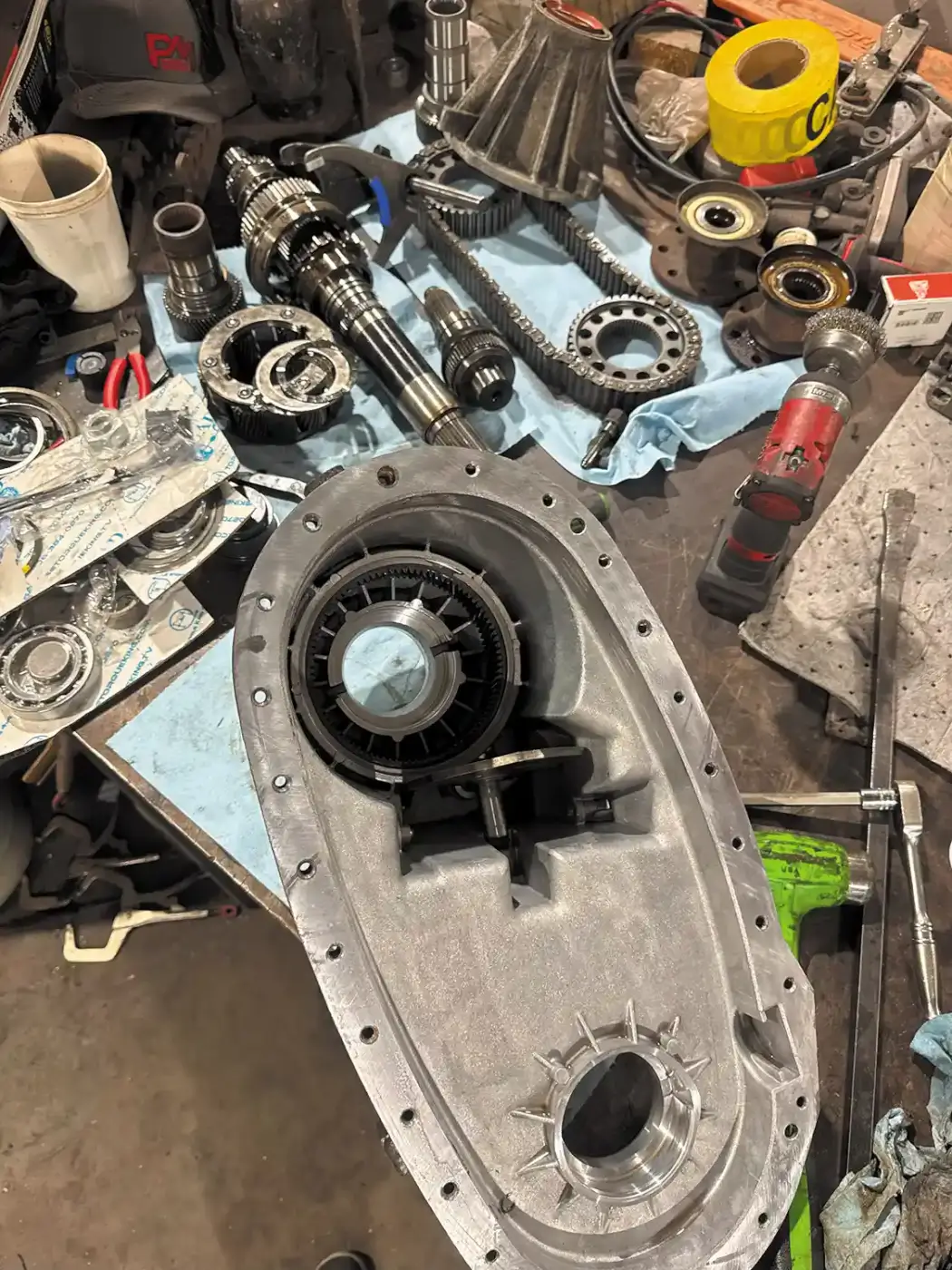

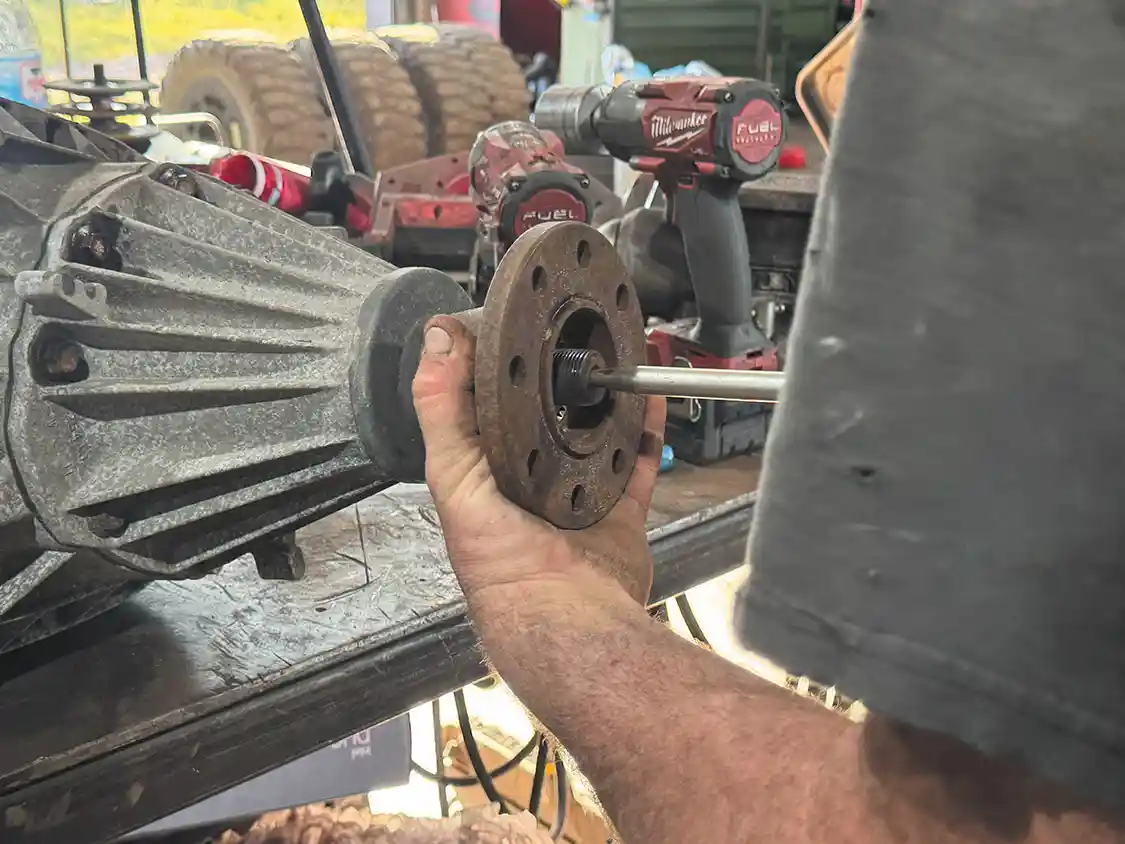

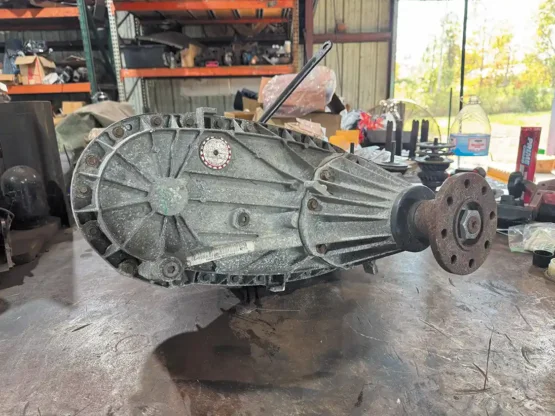

With the transfer case on a clean workbench, begin disassembling it. Remove the external bolts, starting with the tail housing. Use snap-ring pliers to remove the snap rings securing the bearings and other internal components. Pay close attention to the orientation and arrangement of parts; taking photos as you go can be helpful for reassembly.

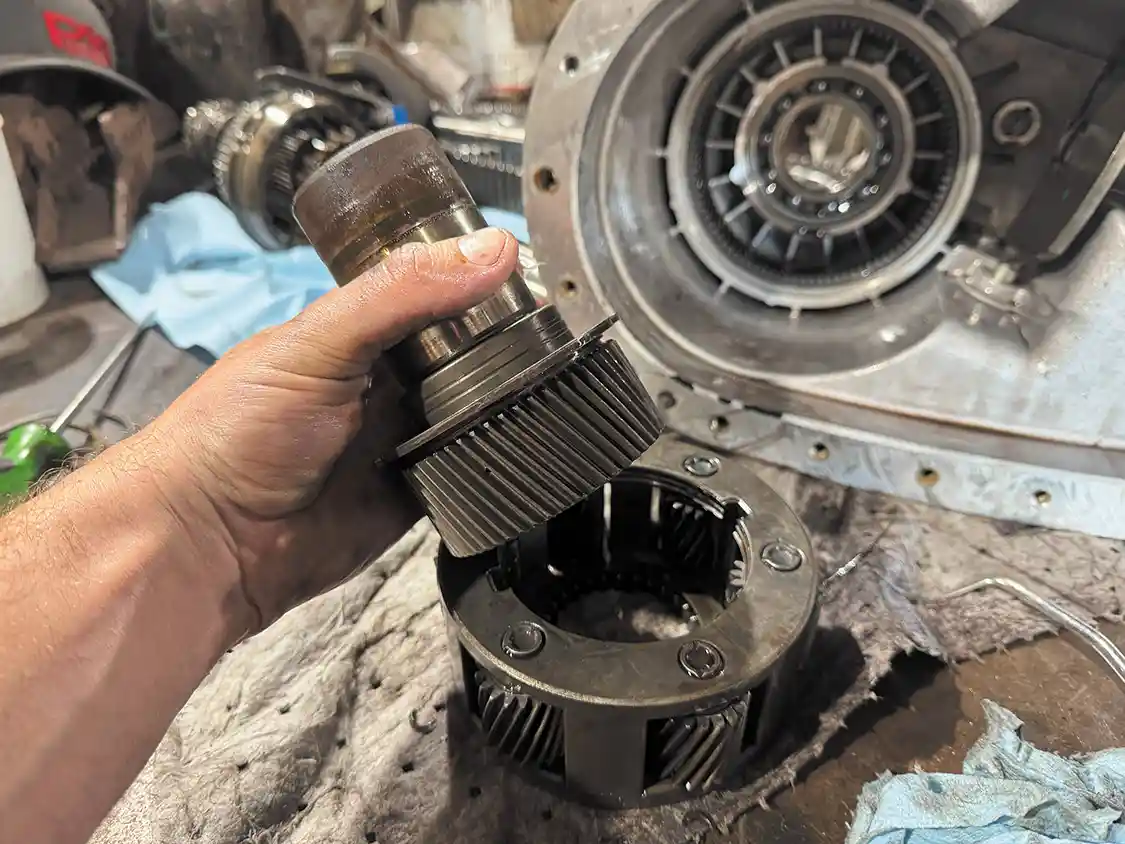

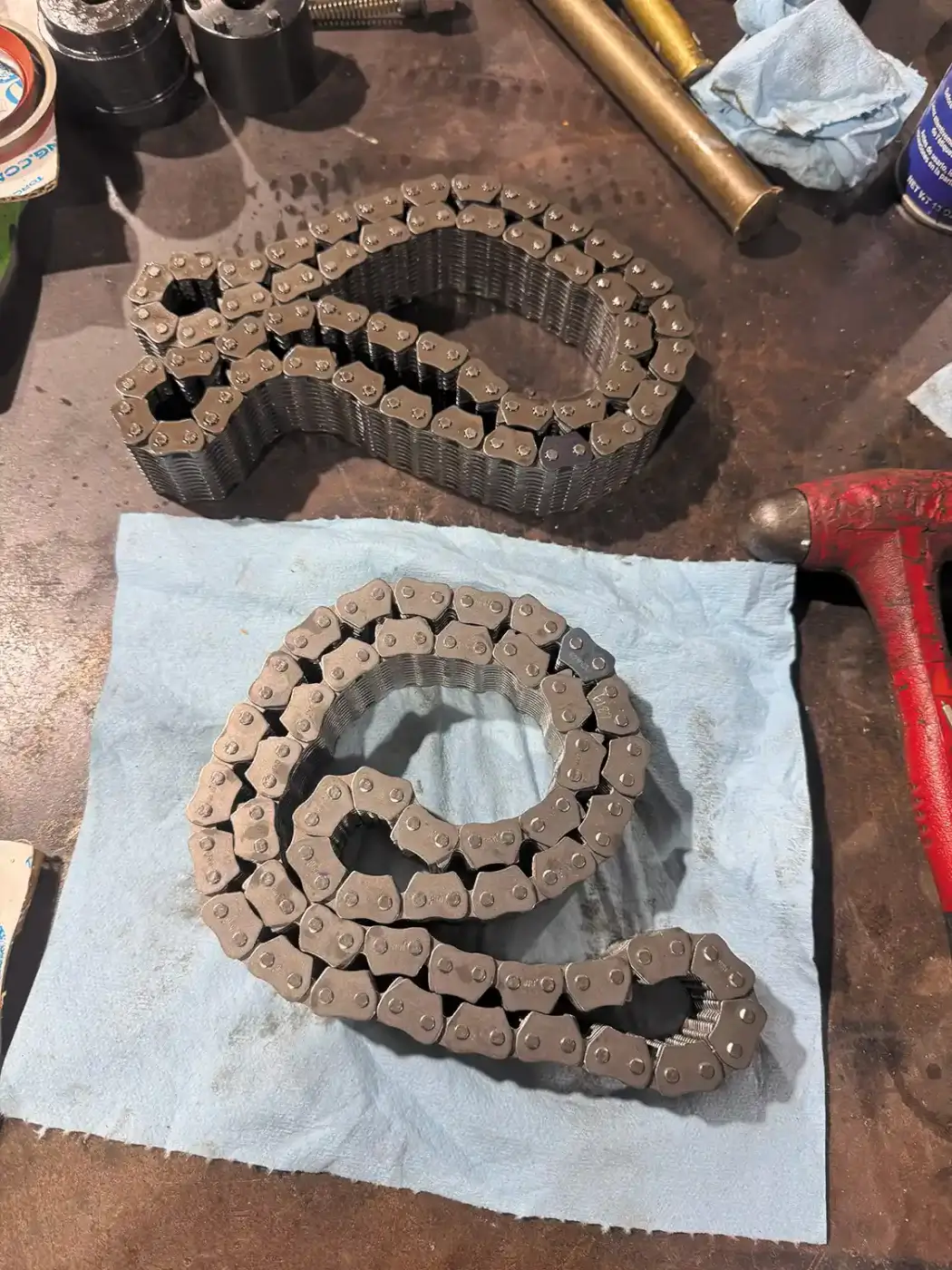

Once fully disassembled, inspect the internals for wear. Common areas of concern include the chain (which may stretch over time), bearings, and shift forks. Replace any damaged or excessively worn components.

Step 2: Clean and Prepare

Thoroughly clean all reusable components using a parts cleaner. Ensure all debris, old gasket material, and contaminants are removed. Check the case halves for cracks or damage, as these can compromise the rebuild’s success. If the housing is in good condition, proceed to reassembly.

Step 3: Rebuild with Torque King 4×4 Parts

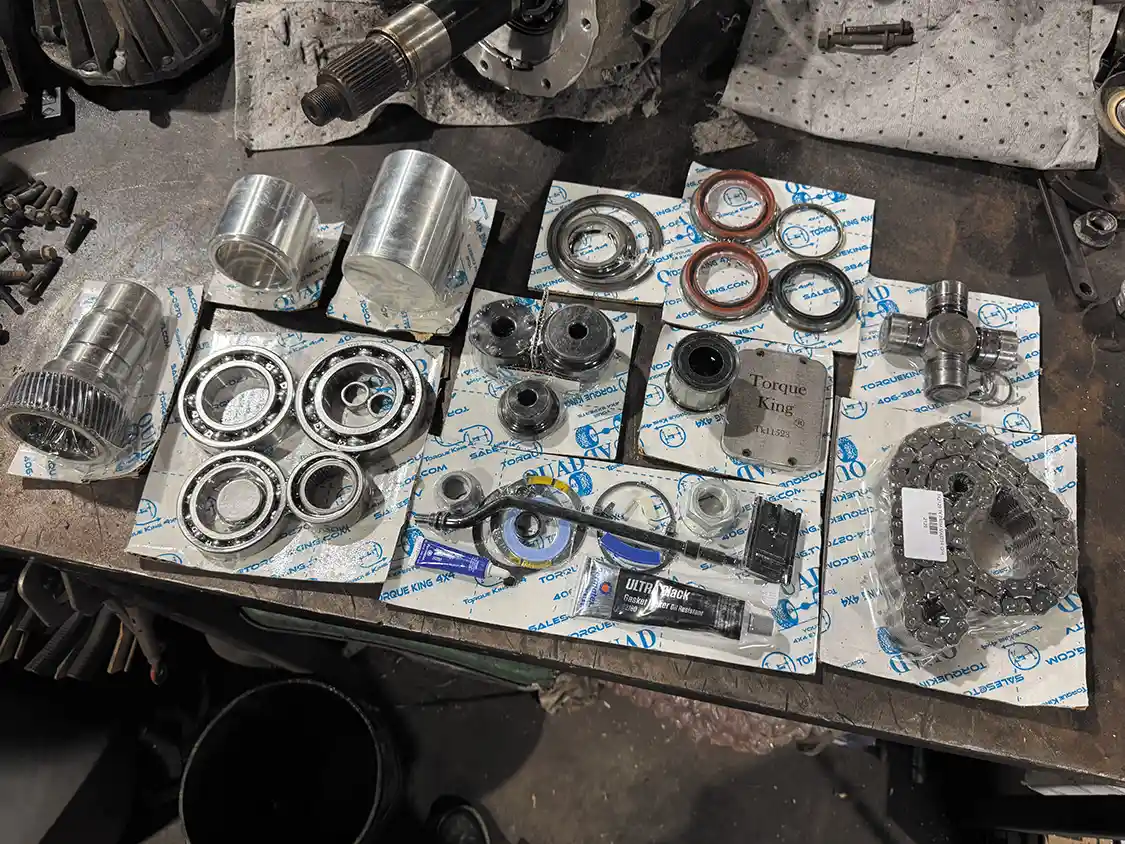

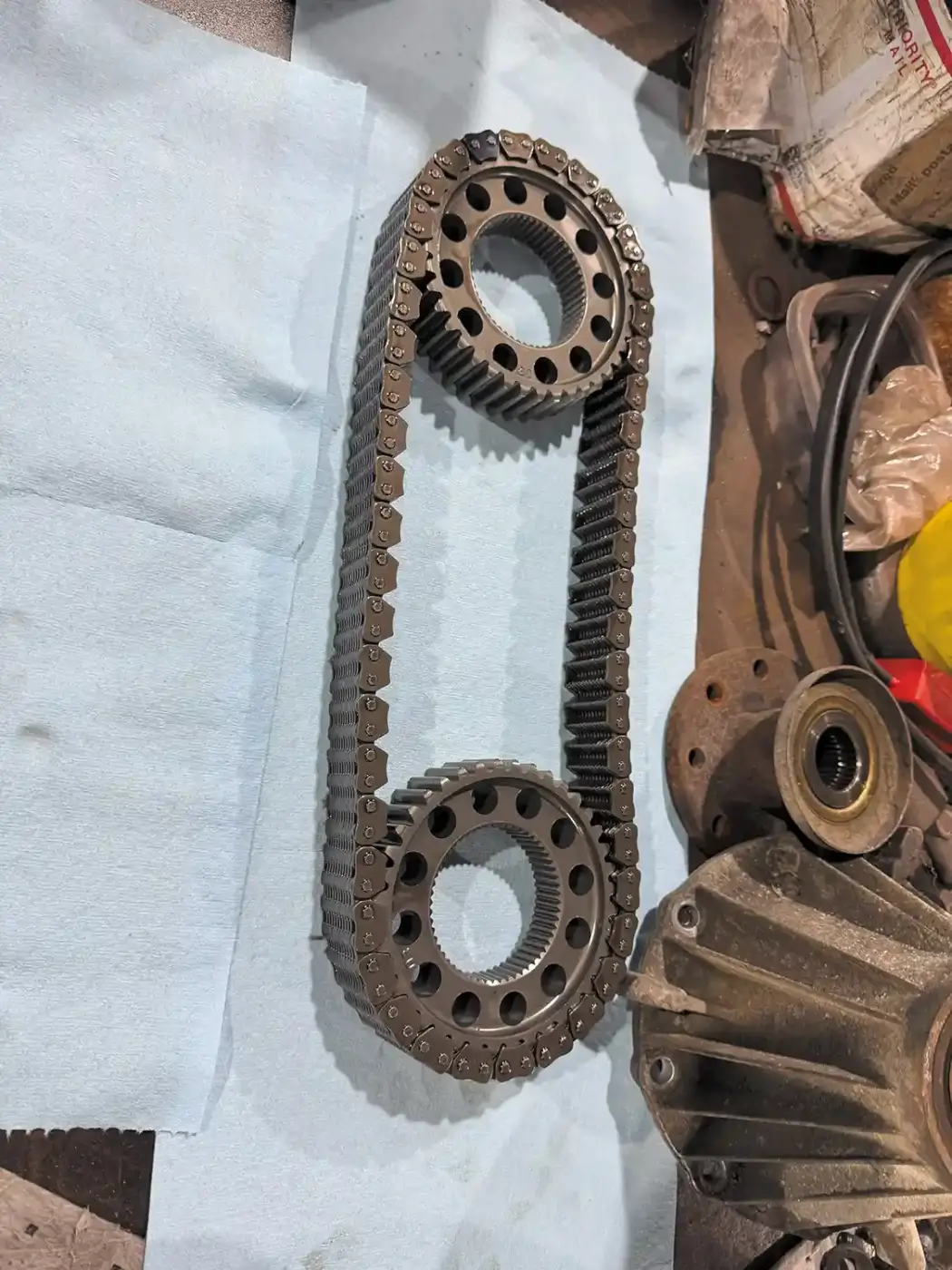

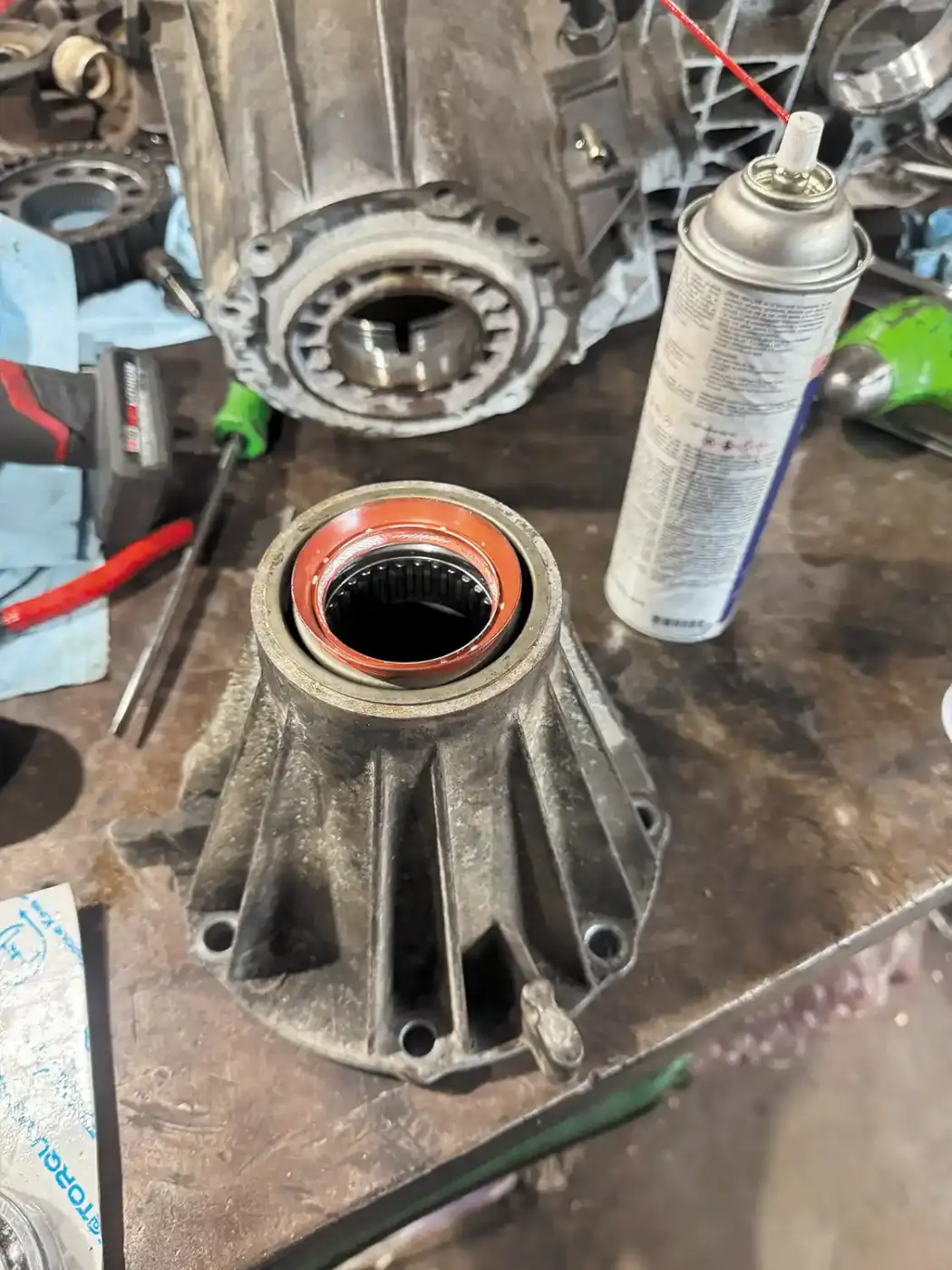

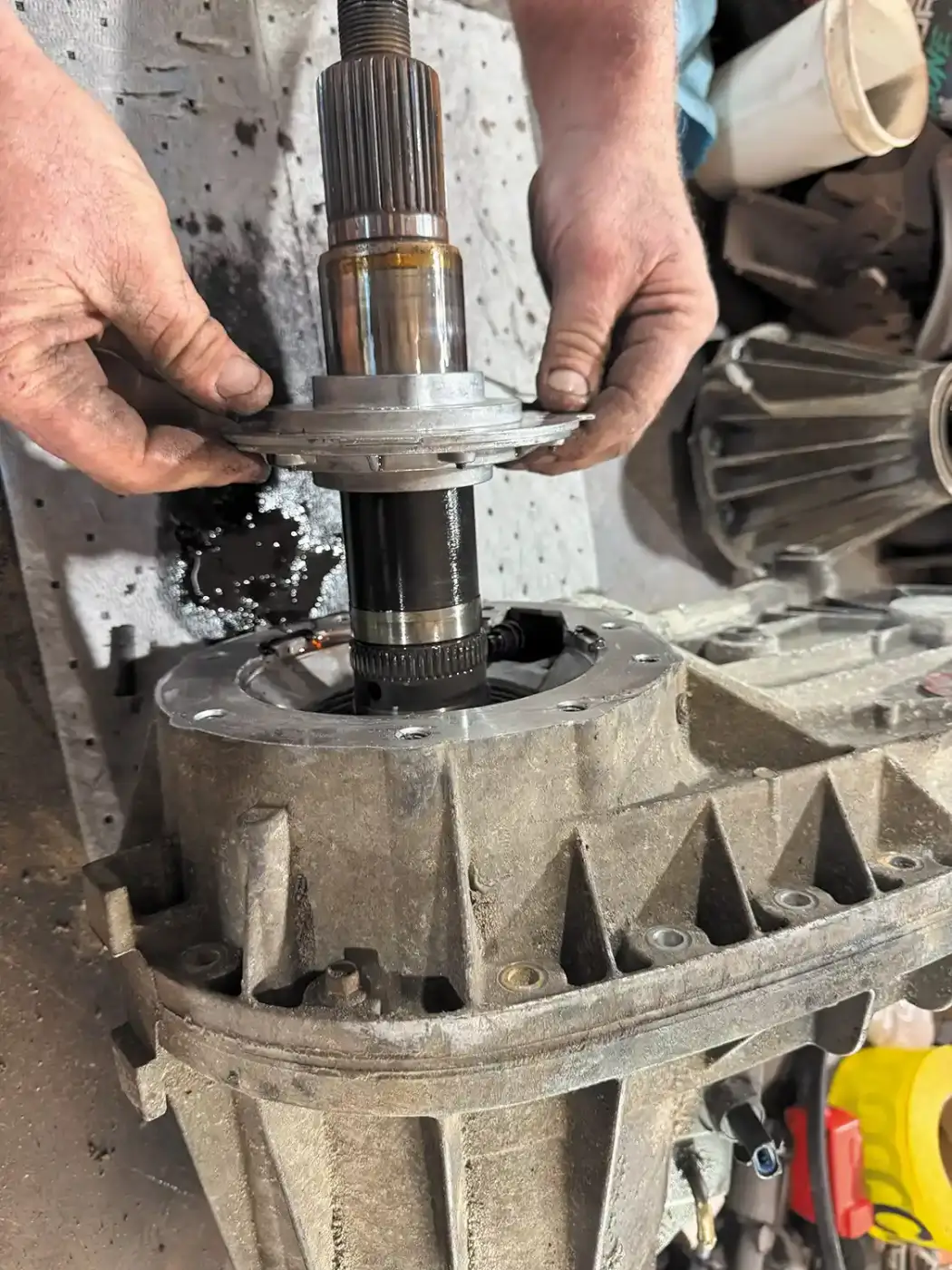

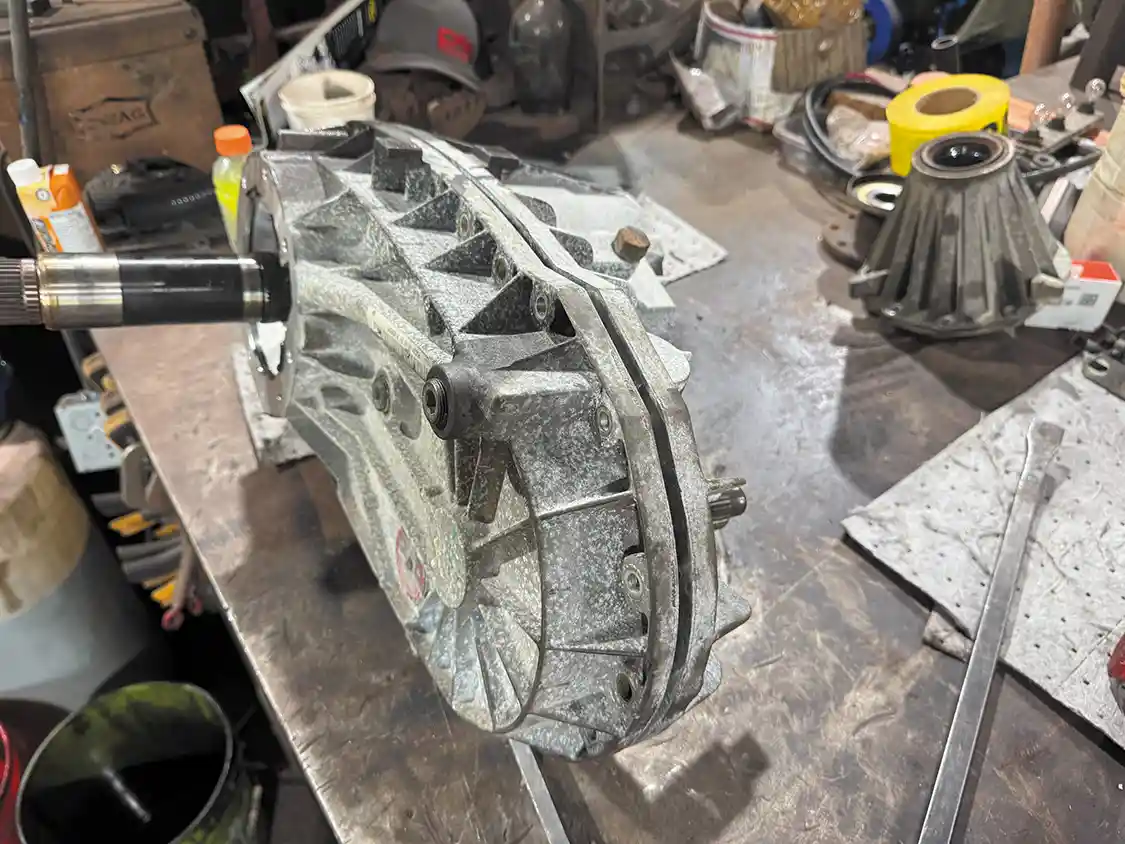

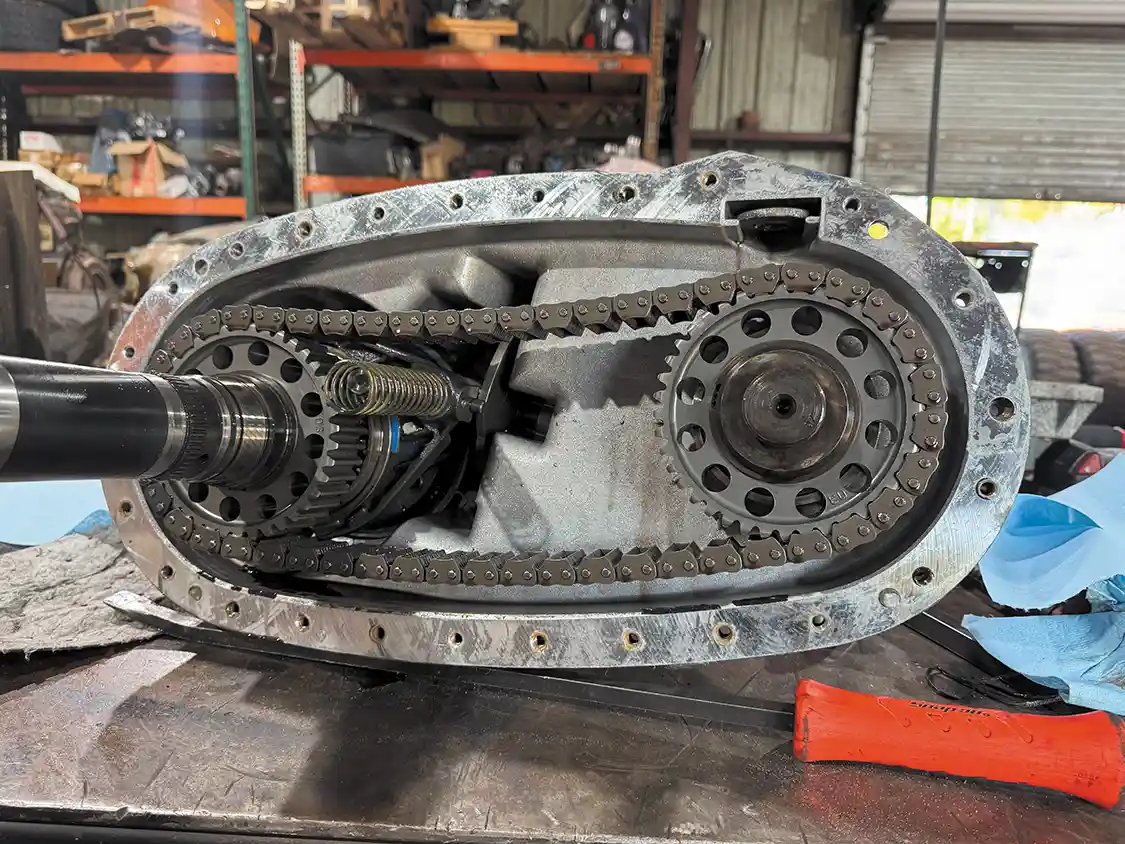

Begin reassembly using the Torque King 4×4 rebuild kit. Install new bearings and seals with a seal driver kit, ensuring each is seated properly. Reinstall the chain and verify that it has the correct tension. Assemble the shafts and gears, using fresh gaskets and applying a thin layer of RTV sealant where specified. Reassemble the case halves, securing them with the factory bolts and torquing them to the manufacturer’s specifications.

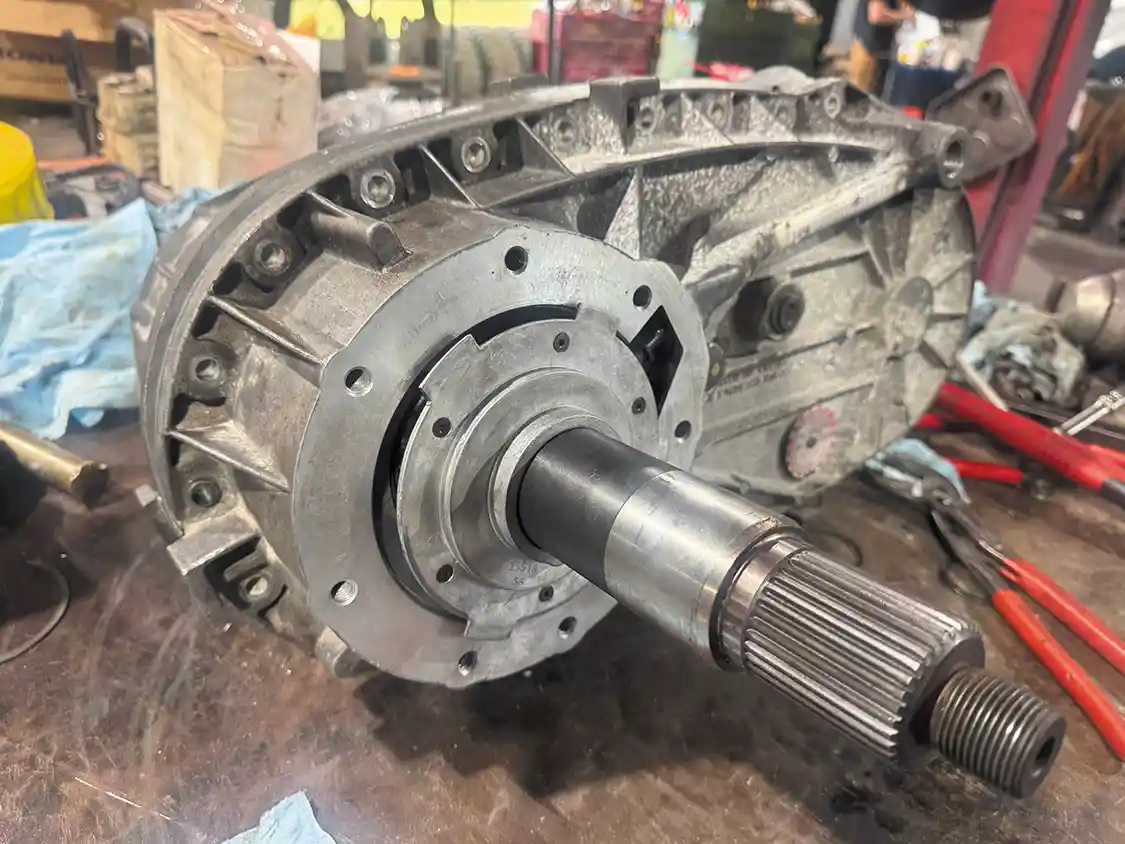

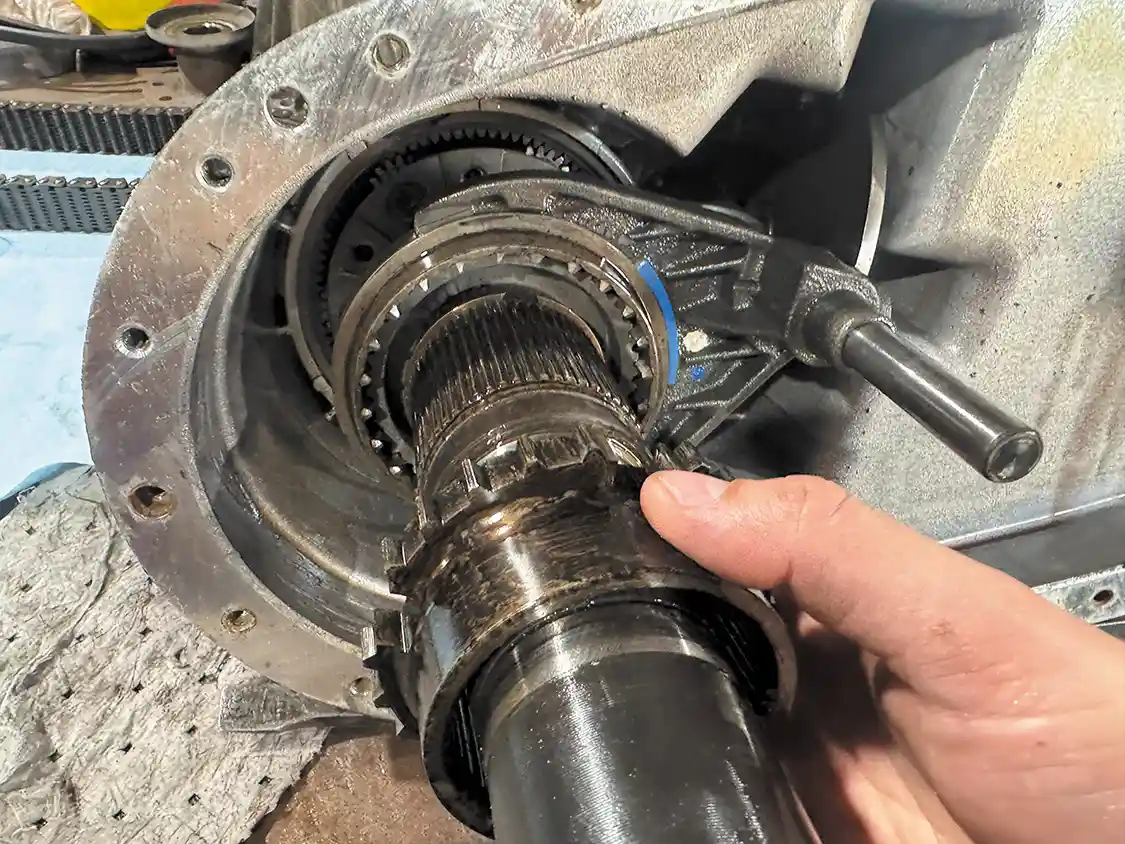

If replacing the range hub or shift forks, ensure these components are correctly aligned and operate smoothly. Finally, attach the tail housing and any other external components, such as the speed sensor or shift linkage.

Step 4: Test and Verify

Before hitting the road, test the transfer case in all operating ranges. Engage both high and low ranges and verify that 4WD functionality is restored. Check for leaks around the case halves, input/output seals, and drain/fill plugs. If everything checks out, your 271F transfer case is ready for duty.

Rebuilding your 271F transfer case with Torque King 4×4 parts is a straightforward process that can restore your truck’s 4WD capabilities and ensure long-term reliability. With the right tools, quality components, and a bit of mechanical know-how, you’ll have your transfer case performing like new. Whether you’re towing heavy loads, drag racing, or tackling off-road adventures, a rebuilt 271F will keep your truck ready for whatever challenges come its way.

Why Choose Torque King  4×4 Parts?

Torque King 4×4 is renowned for its high-quality drivetrain components that meet or exceed OEM standards. The company’s rebuild kits are comprehensive, ensuring you have all the seals, bearings, and gaskets needed for a complete overhaul. Additionally, its parts are precision-engineered to deliver lasting performance, making them a top choice for demanding applications.
