THE FIRST TURBO TRACTOR ALLIS-CHALMERS D-19

The turbo diesel is so commonplace today that naturally aspirated diesels stand out. Go back nearly 60 years and the opposite was true.

In 1961, turbocharging wasn’t yet common in the world of diesels but it was nonexistent in the realm of production farm tractors. There were many reasons for that, starting with cost. Being fairly new technology, it was expensive to implement and farmers weren’t always willing or able to absorb that extra cost.

DW-1807-TRAC-02 — Stammen’s D-19 is loaded for bear. With 600 pounds of iron on the 18.4-34 rear tires, 400 pounds of iron on the front wheels and another 300 pounds on the front weight rack, plus about 2,000 pounds of liquid ballast in the tires, this beast is in the 10,000-pound weight category. On the D19’s Nebraska test in April of ’62 it cranked out 8,459 pounds of drawbar pull in a similar configuration.

The beginning of the ’60s was when a downsized, moderate-cost turbo diesel began to be practical. It was only a matter of time before some tractor company fielded a turbocharged diesel and Allis-Chalmers (AC) was that company. Funny thing is… they introduced a turbocharger onto an old-school Buda-Lanova diesel that really wasn’t all that well suited to it.

Subscribe Our Weekly Newsletter

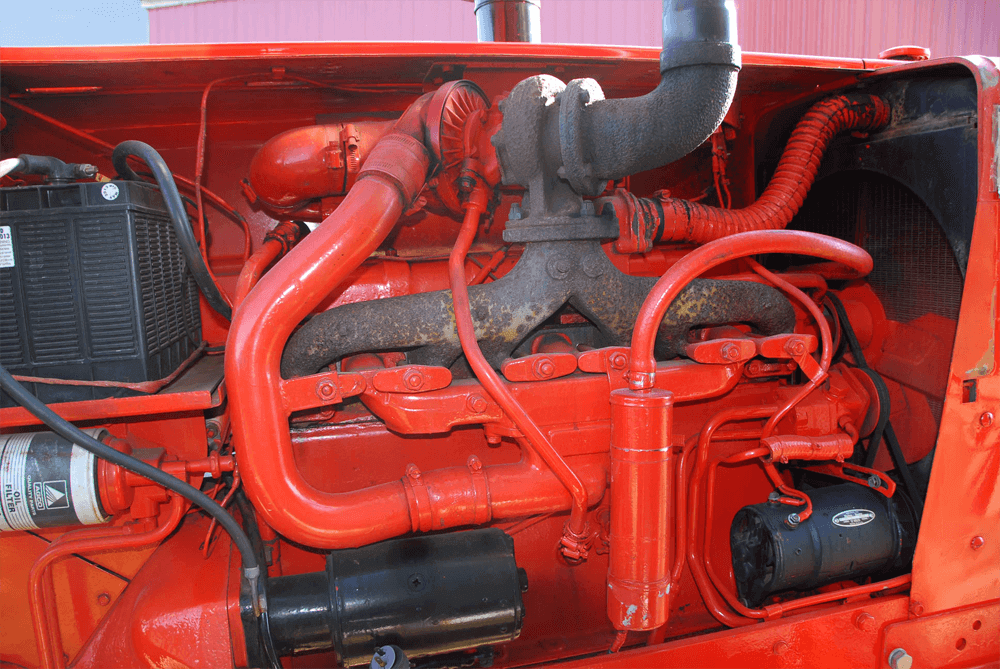

DW-1807-TRAC-03 — Here’s what made the D-19 stand out, the Thompson turbocharger. Thompson Products (a part of what would later become TRW) was a well-known builder of turbos back then and is best remembered for making the turbo for the Corvair Monza. The D-19 turbo engines did not typically have a muffler, though it was an option. Some of the turbocharged D262 engine’s power increase was due to bumping the peak-power rpm from 1,650 to 2,000. The D262 was a 7-main-bearing engine and is known for having a stout lower end. On the turbo engine the piston had steel inserts for the top rings and full-floating wrist pins. The weak link was in the liners, which had a tendency to leak or come loose and damage the block. Many say excessively soft fi re rings on the head gasket were a part of the problem

The turbocharged D-19 was introduced into Allis-Chalmers’s very successful D-Series tractor line for 1961. Launched in 1957, the D-Series started with the D-14, a 34-horsepower, four-cylinder gasser. It would be supplemented with the D-17, which had the option of a 262ci six-cylinder diesel. The D-10 and D-12 would soon join the group and the D-15 would replace the D-14. The D-19 would come next and then the D-21.

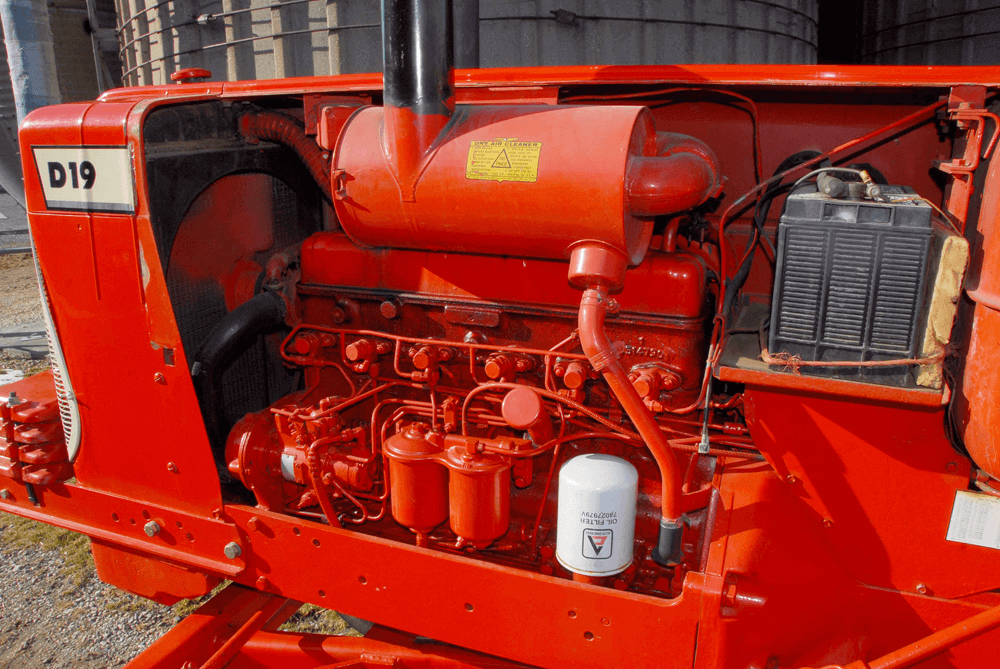

DW-1807-TRAC-04 — The air cleaner marks another first for AC, a paper air filter. AC engineers claimed the paper filter was 20 percent more efficient than a typical oil bath filter, thus adding to engine life. Earlier versions of the B-Series Buda engines had used an American Bosch PSB pump but the D262 turbo used the versatile Roosa-Master DB pump. Stammen has this tractor turned up to about 85 PTO horsepower

The D-17 was a popular “just right” tractor when it was introduced in the fall of 1957 as AC’s “big” tractor. The diesel was rated at 51 Nebraska-tested PTO horsepower. With the latest version of AC’s Power Director (a power-shift device), Traction Booster draft control, power steering, a power-adjustable front axle, rear wheel track adjustment and a solid powertrain, it was a very capable and well-equipped tractor. By the turn of the 1950s, though, a self-respecting tractor company needed more than 51 horsepower in its star tractor for bragging rights.

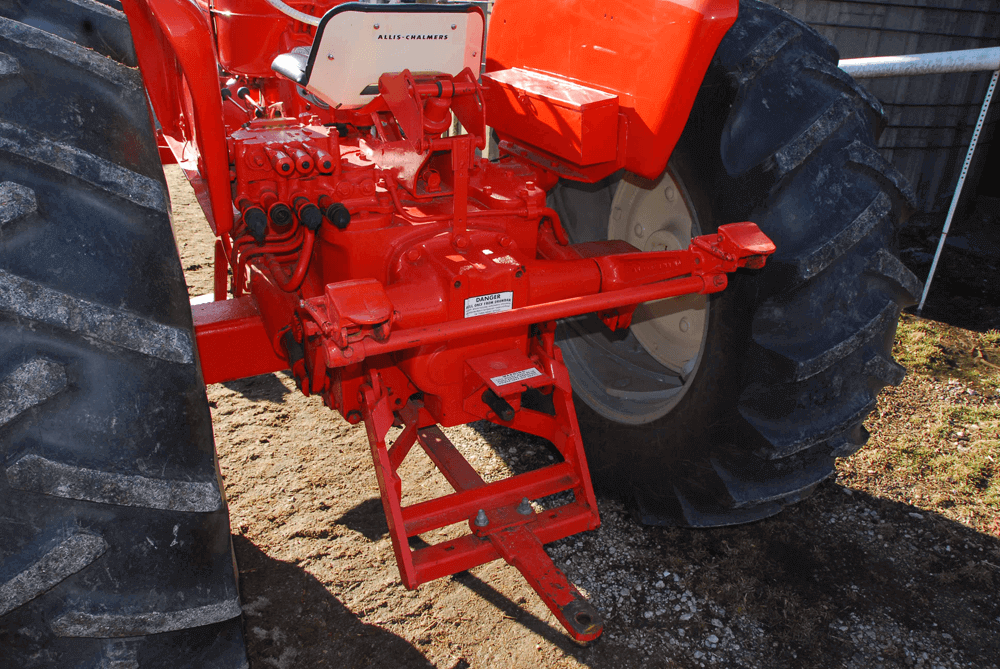

DW-1807-TRAC-05 — At the working end, we can see the standard rear PTO and swinging drawbar. AC called the PTO “live” but it wasn’t quite. When you pushed the clutch in to shift the PTO stopped, but you could also shift gears using the neutral position of the Power Director and the PTO continued in that case. While AC offered a three-point hitch as an option, the D-19 came standard with the AC Snap Coupler. This was AC’s special attachment that allowed very quick hookups to AC implements. The Traction Boost setup worked best with AC implements on a Snap Coupler and most people say it worked very, very well.

A new model was designed as a stopgap to fill in as AC developed an all-new big tractor. The D-19 was it, and you could call it a D-17 diesel after a bodybuilding course. The big difference between the two brothers was the addition of a Thompson turbocharger. Boost was modest, only 4-5 psi, but it took the D262 diesel from 51 PTO horsepower to 67 (about 90 hp on the flywheel). On the drawbar, the D-17 delivered 36 horsepower in the Nebraska test while the D-19 cranked out 62.

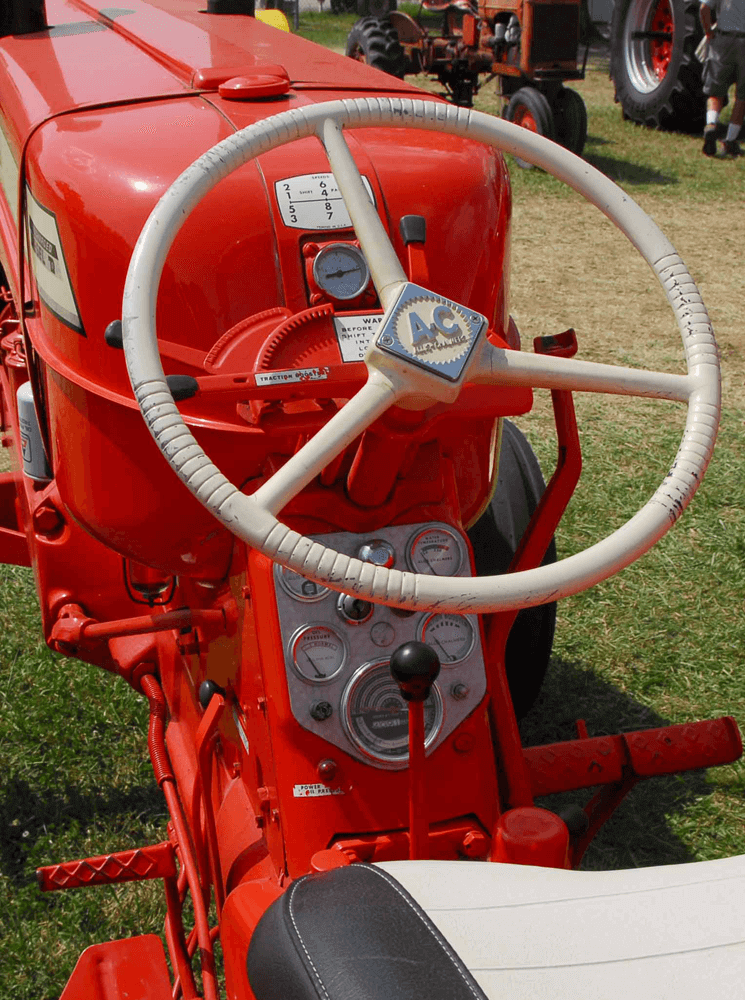

DW-1807-TRAC-06 — Operators liked the control layout on the D-Series tractors. Many controls are up near the steering wheel, including the Traction Booster. An interesting thing to note about the Traction Booster was that it had a meter by which you could set the system for optimum performance. The “Big Stick”—and that’s what they called it—on the right was the Power Director control to split each of the 4 main speeds. The Power Director unit was between the clutch and main gearbox but ahead of the PTO drive, so its neutral position could be used as a “clutch” to shift the main gearbox without interrupting PTO power flow. The engine turned instrument panel was a nice touch.

The D262 was an updated B-Series legacy engine from Buda (pronounced “Beuda” not “Booda”). In late 1953 Allis-Chalmers acquired the Buda Engine Company, making it the Buda Engine Division of Allis-Chalmers. Buda had been making automotive, industrial and marine internal combustion engines since 1910 and formed the basis of what was to become Allis-Chalmers’s short but illustrious era as an engine builder. One result of that era was the Consolidated Diesel agreement with Cummins that yielded the legendary 5.9L diesels in the ’80s.

ALLIS-CHALMERS D-19

Buda began working on the B-Series engines toward the end of World War II and the first ag engines debuted in 1946 Cockshutt tractors. They would be built in one, two, four and six-cylinder configurations, all sharing a 3.44-inch bore and a 4.12-inch stroke with wet sleeves. Like all Buda diesels since 1934 they used the Lanova Power Cell combustion chamber, but the B-Series tractors were considerably downsized compared to previous Buda diesels. Two parent bore (non-sleeved) variants would also be built, the 4BD-182 and the 6BD-273.

The 230ci, 55-flywheel-horsepower 6BD-230 would be the first Buda diesel to appear in AC tractors, namely the WD-45 diesel that began production late in 1954. For 1957 the 230 was bored 1/8 inch and stroked ¼ inch to make it 262 cubic inches. The 4BD four-cylinder engines would get a similar update to 175 cubic inches. The displacement update would coincide with other upgrades that included changes to the sleeve sealing, moving the water pump from the head to the block, improving the oil pump and updating the oil filter from a canister-style to a spin-on.

The D262 turbo diesel was offered with a lower compression ratio than the NA, 14:1 vs. 15.7:1, but after about a year of production (engine number 01499 in the late-’61, early-’62 time period) they upgraded the ratio to 15:1 to solve cold-starting issues. The B-Series engines also suffered from head cracking, made worse by turbocharging, so the heads were updated by reducing the valve sizes to leave more material in the casting. The injector tips were made smaller, again to keep more meat in the casting. A new camshaft was added to the mix but we could not discover the exact differences in cam specs.

Besides being the first production turbo diesel farm tractor, the D-19 had another distinction: It was the first farm tractor tested in Nebraska to use a cellulose (paper) air filter. Oil-bath filters were standard for the era but they have very low airflow rates and are not efficient at cleaning the air, even when perfectly maintained. If you let the oil level get low, or the oil reservoir fills with “mud,” the already-marginal filtering efficiency significantly degrades and engine damage can result. A cellulose filter was the answer and in a few short years the entire industry had left oil-bath filters behind.

The D-19 was called a “5-plow tractor,” which put it into the upper tier of rowcrop tractors in 1961. It came standard with power steering, adjustable wide front axle, the Traction Booster system (draft control with AC’s unique Snap Coupler implement lift), the Power Director, live PTO, a single hydraulic remote, 15.5-38 rear tires with the non-power-adjusted wheels, a pair of headlights and one rear work/taillight. The price for the base tractor in March of ’62 was $5,860.

Options included single or dual-wheel narrow front axles, power-adjust rear wheels, tires as big as 18.4- 34, a side-mounted drum PTO, front weights, front and rear wheel weights, up to three hydraulic remotes and a padded seat. The D-19 was available in a high-clearance model with 37 inches under the belly for use in rice or sugar cane crops. The D-19 was also available with gas or LPG engines.

The D-19 was produced into 1964. It was joined in ’63 by the 103-horsepower D21 with a new 426ci direct injected diesel, making the D-19 an instant also-ran. As the D-19 was fading a totally new tractor emerged to take its place in the lineup, the One-Ninety. Even in NA form, the 301ci One-Ninety DI diesel made more PTO power than the D19, though the drawbar power was close. The AC direct-injected diesels marked the beginning of the end for the Lanova diesels in Allis- Chalmers tractors. A bit more than 10,000 D-19s of all types were built.

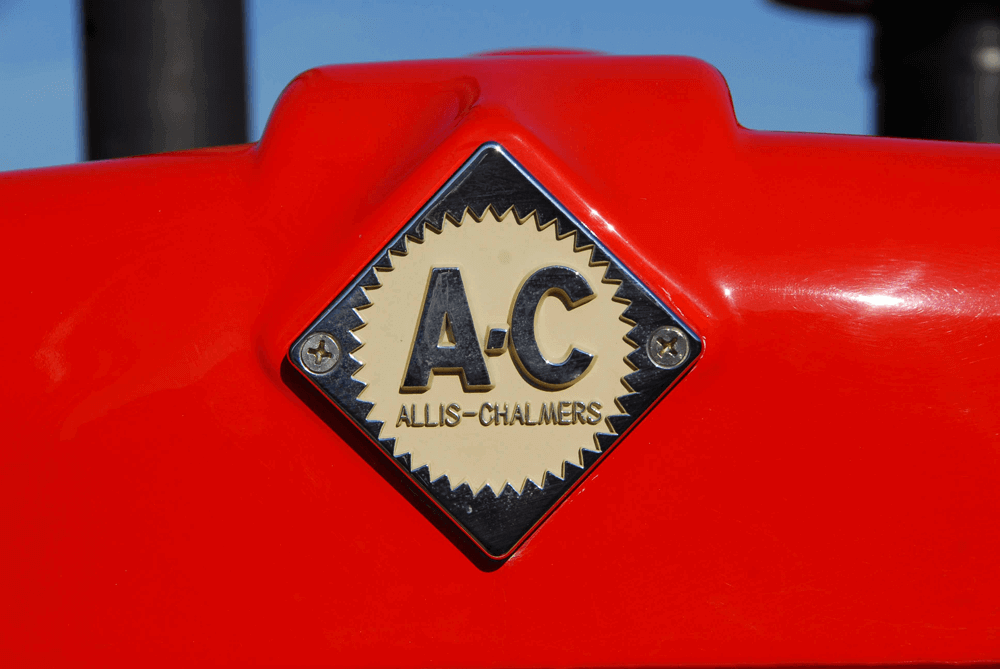

DW-1807-TRAC-07 — The D-19 was called a “5-plow tractor,” which put it into the upper tier of rowcrop tractors in 1961. It came standard with power steering, adjustable wide front axle, the Traction Booster system (draft control with AC’s unique Snap Coupler implement lift), the Power Director, live PTO, a single hydraulic remote, 15.5-38 rear tires with the non-power-adjusted wheels, a pair of headlights and one rear work/taillight. The price for the base tractor in March of ’62 was $5,860.

The D-19 lived up to the advertised performance claims but the engine fell short on durability. Even the NA D262 engine was a little sketchy long-term, having issues with dropped sleeves. Being turbocharged, the D-19 engine was even more fragile. A careful operator could avoid the problems but a tired, overworked farmer is often a lot less than careful and a smart tractor manufacturer builds with that in mind. Whatever faults existed with the turbocharged D262, it highlighted the benefits of the turbo diesel and brought the farm tractor market a few steps closer to near-universal acceptance of turbocharged diesels.DW

SPECIFICATION

1964 ALLIS-CHALMERS D-19

ENGINE: AC/Buda D262
DISPLACEMENT: 262 ci
BORE & STROKE: 3.56 x 4.38 in.
*RATED PTO POWER: 66.92 hp @ 2,000 rpm
*RATED DRAWBAR POWER: 61.27 @ 2,001 rpm
COMPRESSION RATIO: 14:1 (later 15:1)
TRANSMISSION: 8-speed (4-speed with Power Director)
WHEELBASE: 102.3 in.
WEIGHT: 6,480 lbs.
TIRES: Front—7.50-16 Rear—18.4-34
*FUEL CONSUMPTION: 5.211 GPA at maximum power
*DRAWBAR PULL: 8,459 lbs (ballasted to 11, 210 lbs)
*TOP SPEED: 13.9 mph
*As rated by Nebraska Tractor Test #811

FREQUENTLY ASKED QUESTIONS.

Were there any debates about which tractor was the first turbocharged model?

In the world of agricultural machinery, there’s been some buzz about which tractor earned the title of the first turbocharged model. This debate often circles around different makes, each staking its claim in pioneering turbo technology.

The introduction of turbocharged tractors began in the early 1960s. A notable contender emerged around 1962-1963, marking it as one of the first turbocharged tractors to go through rigorous field testing. Soon after, in the mid-1960s, another major tractor brand rolled out its version, adding to the competitive spirit in the industry.

The timeline of developments helps paint a clearer picture. Initial models set the stage, followed by enhancements and successive iterations in the years that followed. Different manufacturers quickly adopted and improved turbo technology, each contributing to the evolution of these powerful machines.

So, while multiple brands introduced their own versions around the same time, it’s clear that the race to be the first was both competitive and groundbreaking, with each company building on the successes of its predecessors.

How did historical tractor models contribute to advancements in farm machinery technology?

The Role of Historical Tractor Models in Advancing Farm Machinery Technology

The journey of tractor development is a testament to the relentless pursuit of innovation in agricultural machinery. Among the significant breakthroughs was the introduction of turbocharged engines, which played a crucial role in enhancing tractor performance and efficiency.

Turbocharging: A Game-Changer

Turbocharging allowed tractors to deliver more power without increasing engine size. This was first seen in the early 1960s when the notion of turbocharged tractors was still a novel concept. One of the pioneering models was introduced around 1962, making it one of the first turbocharged tractors tested for performance in Nebraska, setting a precedent for future farm machinery. This development prompted other manufacturers to enter the arena, creating a ripple effect throughout the industry.

The Timeline of Innovations

Early Adopters:The dominance of early turbocharged models demonstrated superior pulling power and efficiency compared to their non-turbo counterparts. The adoption of turbo technology quickly spread as other manufacturers aspired to replicate its success.
Subsequent Releases:Following the initial release, several other models, each more advanced than its predecessor, incorporated improvements such as series enhancements that further refined engine performance. These enhancements were primarily focused on boosting horsepower and increasing the overall durability of the machinery.
Competitive Drive:As the turbocharged revolution gained momentum, more companies began incorporating similar technologies. By the mid-to-late 1960s, most leading agricultural machinery manufacturers had introduced their own turbocharged tractors.

Impact on Agricultural Practices

These technological advancements significantly impacted agricultural practices by:

Increasing Productivity:The enhanced power and efficiency allowed farmers to work more land with less fuel, thus increasing productivity and reducing costs.
Improving Durability and Versatility:While early models faced challenges such as engine reliability, the evolving designs eventually addressed these issues, leading to more robust and versatile tractors.
Encouraging Innovation:The turbocharging trend forced manufacturers to focus more on research and development, giving rise to innovations in engine design and other tractor components.

The transition to turbocharged tractors illustrates how historical models served as catalysts for technological progress in farm machinery. These advancements not only improved agricultural efficiency but also laid the groundwork for today’s sophisticated farming equipment. As innovation continues, the legacy of these early trailblazers remains integral to the evolution of modern agriculture.

What is the timeline of the development of turbocharged farm tractors?

Timeline of Turbocharged Farm Tractor Development

Understanding the progression of farm tractor technology involves tracing the journey towards turbocharging.

1931: The journey begins with the advent of the first diesel farm tractors, setting the stage for future innovations in efficiency and power.
1935: The development moves towards more advanced diesel tractors as manufacturers develop tractors with increased capabilities on wheels.
1961: The pivotal year for turbocharged farm tractors:
- A significant innovation was the introduction of the first turbocharged farm tractor. This tractor marked a milestone by being the first to undergo testing with a turbo in Nebraska.
- Additionally, it represented the first turbocharged two-wheel drive and row crop model.
1961: Another milestone achieved this year was the launch of the first turbocharged four-wheel drive tractor. This model also boasted more than 100 horsepower, underscoring the shift towards higher-powered machinery.
1963-1965: A new era of turbocharging begins with tractors featuring over 100 horsepower:
- In 1963, a specific series of tractors was introduced, setting standards with its adjustable front axle and large rear tires. Although initially non-turbocharged, this series paved the way for future turbo innovations.
- By 1965, advancements led to the production of a turbocharged version of this series, notable for being the first over 100 horsepower turbocharged row crop farm tractor.

This timeline illustrates the technological leaps that have significantly enhanced agricultural efficiency and productivity through the integration of turbocharging in farm tractors.

What role did different tractor models play in the evolution of turbocharged tractors?

The Evolution of Turbocharged Tractors: Key Milestones

The journey toward modern turbocharged tractors is marked by several pivotal models, each contributing uniquely to the agricultural landscape. Here’s a look at the vital roles these tractors played in turbocharged technologies:

Early Innovators and Track Pioneers

1931:Caterpillar Diesel Sixty emerged as the trailblazer, being the first diesel-powered farm tractor on tracks. This laid the groundwork for the integration of diesel engines in agriculture, setting a precedent for enhanced power and efficiency.
1935:McCormick-Deering WD40 broke new ground as the first diesel farm tractor on wheels, marking a transition from tracks to wheel-based models.

The Rise of High Horsepower Tractors

1936:Caterpillar RD8 introduced the era of over 100 horsepower engines, pushing the boundaries of farm productivity with its robust track design.
1959:John Deere 8010 set new standards by being the first tractor on wheels and the first 4WD model exceeding 100 horsepower, showcasing the potential for greater power without compromising mobility.

The Turbocharged Revolution

1961:Allis Chalmers D19 Diesel revolutionized the industry as the first turbocharged farm tractor, paving the way for increased engine performance. It also stood out as the first turbocharged 2WD and turbocharged row crop model.
1961:International 4300 followed closely, being the first turbocharged 4WD tractor and the first turbo model exceeding 100 horsepower, highlighting advancements in engine capacity and turbo technology.

Enhancements in Row Crop Models

1962:John Deere 5010 introduced a powerful 2WD model surpassing 100 horsepower, solidifying the role of high-capacity engines in everyday farming.
1963:Allis Chalmers D21 Series 1 emphasized row crop applications, being the first tractor over 100 horsepower. This model initially offered non-turbocharged versions but later adopted optional features for versatile farming needs.

Turbo Innovations and Beyond

1965:Allis Chalmers D21 Series 2 launched with turbocharged capabilities, setting a benchmark as the first over 100 horsepower turbocharged row crop tractor, thus enhancing field performance.
1965:International / Farmall 1206 marked a milestone by introducing the first turbocharged 2WD and row crop tractor from this brand, demonstrating the integration of turbo technology across various tractor types.

Each of these tractors represents a step forward in the evolution of agricultural machinery, particularly in the development and refinement of turbocharged technology, transforming farming efficiency and power usage worldwide.

How did the introduction of the first turbocharged tractor impact the perception of power in farm machinery?

The introduction of the first turbocharged tractor marked a pivotal moment in agricultural machinery, forever altering the landscape of farm power. The Allis Chalmers D19, debuting in the early ’60s, was a trailblazer, being the first tractor to incorporate a turbocharger straight from the factory. It set a benchmark that competitors soon followed, with manufacturers like International Harvester, John Deere, and Massey Ferguson eventually introducing their own turbocharged models.

The D19 was not just a machine but a statement of innovation. Its arrival heralded a new era where the pursuit of dependable, big power became a central goal for the industry. This shift was significant, as it demonstrated the potential of turbocharged diesel engines in delivering enhanced performance and fuel efficiency. By bringing these benefits to the forefront, the D19 nudged the farm tractor market closer to widely embracing turbo technology.

Whatever faults existed with the turbocharged D262, it highlighted the benefits of the turbo diesel and brought the farm tractor market a few steps closer to near-universal acceptance of turbocharged diesels.

This change was not without its challenges, as some manufacturers remained cautious. Companies such as Deereand Ford took a more conservative approach, joining the turbo revolution a bit later. Yet, the groundwork laid by the early adopters ensured that turbocharged tractors became synonymous with power and reliability.

In essence, the introduction of turbocharged tractors redefined expectations and set a new standard for what modern farm machinery could achieve, influencing design and performance benchmarks for decades to come.

How did the introduction of turbocharged tractors vary across different tractor brands?

The beginning of the ’60s was when a downsized, moderate-cost turbo diesel began to be practical. It was only a matter of time before some tractor company fielded a turbocharged diesel, and Allis-Chalmers (AC) was that company. Funny thing is… they introduced a turbocharger onto an old-school Buda-Lanova diesel that really wasn’t all that well suited to it.

The timeline of turbocharged tractor introductions is a fascinating journey through agricultural innovation. AC took the lead with their D19 model in ’62-’63, marking the first-ever turbocharged tractor tested in Nebraska. This pioneering move set the stage for other manufacturers to follow.

Next came International Harvester (IH) with their 1206 model, debuting in ’65 or ’66. It was IH’s first foray into turbocharged tractors, showcasing their commitment to keeping up with technological advancements.

Meanwhile, the sequence continued with models like the D21 and the 190XT from AC, which evolved into the D21 series II and the 190XT series II and III. Each iteration reflected improvements and adaptations to the turbocharging technology.

Following AC and IH, John Deere (JD) and Massey Ferguson (MF) entered the scene, each introducing their own turbocharged models, solidifying the presence of this breakthrough technology across major brands.

This progression highlights the competitive spirit among tractor manufacturers, each striving to enhance performance and efficiency through turbocharging.

What was IH’s first turbocharged tractor?

The 1206 was the first turbocharged tractor introduced by International Harvester.

Which brands introduced turbocharged tractors after Allis-Chalmers?

After Allis-Chalmers, the brands that introduced turbocharged tractors were International Harvester, John Deere, and Massey Ferguson.

What is the chronological order of the introduction of turbocharged tractors by different brands?

The sequence began with the D19, followed by the D21, 190XT, D21 series II, and 190XT series II and III.
