THE MUSTANG OF TRACTORS

1972 FORD 8000

Ford Tractor Operations turned a major corner in 1968 when the new 8000 debuted. It replaced Ford’s First six-cylinder tractors, the 6000 and 6000 Commander (’61-’67), and did so in a big way. Significant resources were expended to make this a world-class, cutting-edge tractor. Ford’s ag operations were global in scope and, as much as possible, the tractor lineup was designed to be universal in most markets.

The 8000 was largely developed on a clean sheet of paper, and the new 401-cubic-inch, direct-injected inline six that powered it was too. While it was patterned in many ways on Ford’s diesel engine thinking of the day, and shared some design characteristics with earlier Ford diesels, it was quite a different engine than the 242 ci Dorset engine that had powered the 6000. Displacing 401 cubic inches from a square 4.40″ X 4.40″ bore and stroke in naturally aspirated (NA) agricultural use, it made about 117 hp on the flywheel at a low, ag-friendly 2300 rpm, and Nebraska rated it at 105.73 hp on the PTO.

In 1969, a turbocharged version would appear for the 9000 series tractors that debuted that year. It would deliver a stunning 131 horsepower on the PTO. The NA and turbocharged version would improve and reset for the ’72-’76 8600 and 9600, ’77-’79 8700 and 9700s, and the TW-20 that came in ‘79. In 1985, a road version was developed for use in trucks. Called the 6.6L, it was turbocharged and made 160-170 flywheel horsepower depending on application. It would be a staple until 1994, when it was phased out in North American service.

Three Variants, Many Options

The 8000 was introduced in three variants: a narrow front Rowcrop, a wide adjustable-width front Rowcrop, and what was called an All-Purpose, with a wide, set-back front axle with adjustable width. The two Rowcrops came standard with a live 540/1000 rpm PTO and a three-point hitch. The All-Purpose came standard with a swinging drawbar and no PTO, but the PTO and three-point was optional. The All-Purpose was what other manufacturers called a standard or wheatland tractor, and the set-back axle (91.5″ wheelbase vs. 108 or 100 on the Rowcrops) gave it extraordinary maneuverability.

Ford had a huge selection of implements and tools, but relating directly to the tractor were 2100- and 2500-pound loaders and cabs with air-conditioning. The 8000 had three separate hydraulic systems—one directly driven by the engine for the power steering, another for the PTO and diff-lock clutches, and the last for the three-point and remotes. For this last pump, 13 gpm was standard but a 16 gpm was an option.

Evolution

In 1969, some big things happened. For one, the 8000 got a big brother, the 9000. It was much the same tractor, but with a beefed-up, turbocharged version of the 401 and a powertrain to match. The 8000 and 9000 both got the option of Ford’s Dual-Power system. Call it a partial power shift or a torque amplifier… they both fit. It split the gears and turned the normal four-speed trans with a two-speed over/under into a 16-speed that could split gears in each range. By 1973, Ford reckoned some changes were in order, so the 8000 updated to the 8600. Beyond changes in graphics and minor engine tweaking that gained five horsepower on the PTO, there wasn’t much to talk about. The 8600 updated to the 8700 with a fair bit of restyling for 1977, which also happened to be the 60th anniversary of the Ford tractor.

The 8000 lineage continued well into the ‘80s with the TW-20, then the TW-5. The TW-15, TW-25, and TW-35 came in 1985, which is when New Holland took over the Ford lines. Though the styling and cabs had evolved greatly, these Fords continued on the basic platform that had begun with the 8000. By 1990, the Fords had evolved past that platform, even though a much updated 401 was still in the lineup in front of some modern drivetrains and four-wheel drive tractors.

The Ford 8000 tractors had few vices and no major troubles to garner headlines in farmer gossip columns. Neither did they set major benchmarks nor inspire the kind of fervor a few tractors of other colors have done. They did their jobs and continue to do them, and that’s about all you can ask of a good tractor.

FREQUENTLY ASKED QUESTIONS

What is the drive type and steering system of the Ford 8000 tractor?

The Ford 8000 tractor is equipped with a two-wheel drive system, allowing it to perform effectively in various field conditions. It also features power steering, which enhances maneuverability and ease of handling, making it well-suited for agricultural tasks.

How does the engine displacement of the Ford 8000 compare to other row crop tractors?

Understanding the Ford 8000’s Engine Displacement

When comparing engine displacement, the Ford 8000 stands out among row crop tractors. It boasts a displacement that exceeds the midpoint among its peers. This places the Ford 8000 above the average when considering over a thousand similar tractor models.

How Does It Stack Up?

• Above Average: The Ford 8000’s engine capacity surpasses over 50% of other row crop tractors, highlighting its robust performance in the agricultural field.
• Comprehensive Database: With data from more than 1,000 tractors, this comparison offers a reliable overview of where the Ford 8000 fits in the lineup of row crop tractors.

In conclusion, if you’re looking for a tractor with a strong engine presence, the Ford 8000 is a solid contender in the field of row crop tractors. Its engine displacement not only meets but surpasses many of its competitors, ensuring competent performance for demanding tasks.

What are the key features and specifications of the Ford 8000 tractor?

The 8000 was largely developed on a clean sheet of paper, and the new 401-cubic-inch, direct-injected inline six that powered it was too. While it was patterned in many ways on Ford’s diesel engine thinking of the day, and shared some design characteristics with earlier Ford diesels, it was quite a different engine than the 242 ci Dorset engine that had powered the 6000. Displacing 401 cubic inches from a square 4.40″ X 4.40″ bore and stroke in naturally aspirated (NA) agricultural use, it made about 117 hp on the flywheel at a low, ag-friendly 2300 rpm, and Nebraska rated it at 105.73 hp on the PTO.

In 1969, a turbocharged version would appear for the 9000 series tractors that debuted that year. It would deliver a stunning 131 horsepower on the PTO. The NA and turbocharged version would improve and reset for the ’72-’76 8600 and 9600, ’77-’79 8700 and 9700s, and the TW-20 that came in ‘79. In 1985, a road version was developed for use in trucks. Called the 6.6L, it was turbocharged and made 160-170 flywheel horsepower depending on application. It would be a staple until 1994, when it was phased out in North American service.

The 8000 was introduced in three variants: a narrow front Rowcrop, a wide adjustable-width front Rowcrop, and what was called an All-Purpose, with a wide, set-back front axle with adjustable width. The two Rowcrops came standard with a live 540/1000 rpm PTO and a three-point hitch. The All-Purpose came standard with a swinging drawbar and no PTO, but the PTO and three-point was optional. The All-Purpose was what other manufacturers called a standard or wheatland tractor, and the set-back axle (91.5″ wheelbase vs. 108 or 100 on the Rowcrops) gave it extraordinary maneuverability.

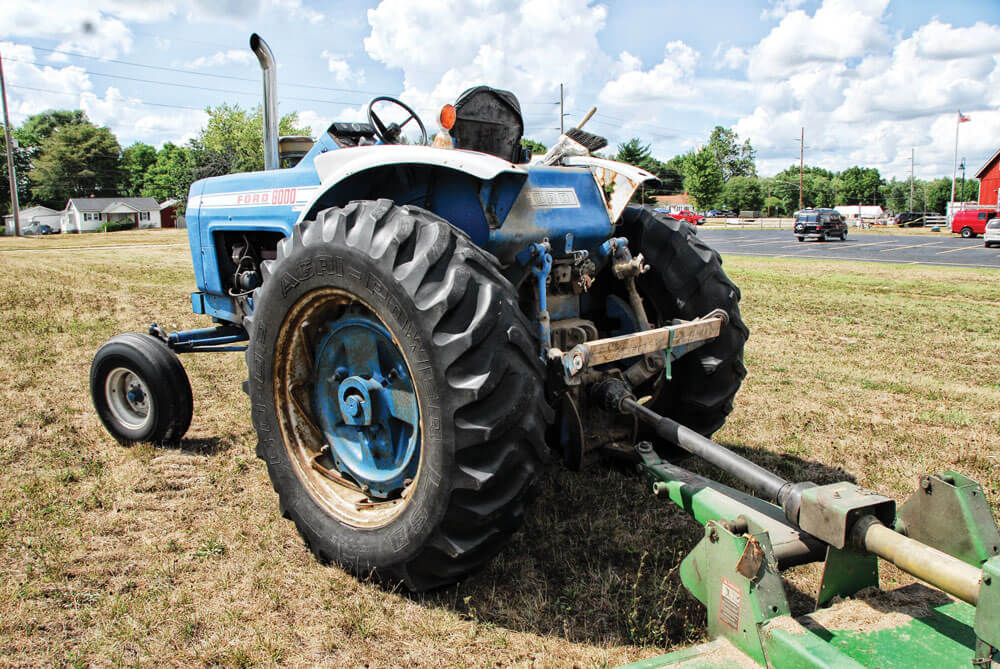

The 8000 Rowcrop came with a two-speed PTO, Cat II three-point hitch and a standard drawbar. Standard on the All-Purpose tractor and optional on the Rowcrops was a wide-spring drawbar that swung 17″ to each side of center. The power-adjust rear wheels opened the rear track from 60 to 97 inches and these tractors were ready for duals. The Rowcrops had either 34- or 38-inch-diameter wheels and the All-Purpose used 30- or 34-inchers.

Ford had a huge selection of implements and tools, but relating directly to the tractor were 2100- and 2500-pound loaders and cabs with air-conditioning. The 8000 had three separate hydraulic systems—one directly driven by the engine for the power steering, another for the PTO and diff-lock clutches, and the last for the three-point and remotes. For this last pump, 13 gpm was standard but a 16 gpm was an option.

Key Features and Specifications

The Ford 8000 is a robust row crop tractor produced between 1968 and 1972. Its 2WD drive system and power steering make it highly maneuverable in the fields. The tractor is equipped with a gear-type transmission, offering 8 forward gears and 2 reverse gears, providing versatility for various agricultural tasks.

Engine and Performance

• Engine Type:6-cylinder diesel, liquid-cooled, naturally aspirated
• Displacement:401 ci
• Power Output:5 hp at 2300 rpm

Dimensions and Build

• Operating Weight:9980 lb
• Width:6 inches

Functional Features

• PTO:Independent with 540 and 1000 rpm speeds
• Three-Point Hitch:Available at the rear

The 8000 also includes practical features such as a differential lock and hydraulic wet disc brakes, enhancing its operational efficiency on the farm. With an open operator station, it is designed for ease of use, while its sturdy build ensures stability during demanding tasks.

What are the technical specifications of the Ford 8000 tractor’s engine, transmission, and drivetrain?

“The 8000 was largely developed on a clean sheet of paper, and the new 401-cubic-inch, direct-injected inline six that powered it was too. While it was patterned in many ways on Ford’s diesel engine thinking of the day, and shared some design characteristics with earlier Ford diesels, it was quite a different engine than the 242 ci Dorset engine that had powered the 6000.

Engine Specifications

• Manufacturer and Model: Ford crafted both the engine and model, ensuring a cohesive design.
• Cooling Type: This robust engine features a liquid-cooled system, ideal for maintaining optimal temperatures during heavy-duty tasks.
• Cylinder Orientation and Fuel Type: It boasts an inline cylinder configuration, running on diesel fuel, which is standard for agricultural machinery of this size.
• Induction Type: Naturally aspirated, the engine efficiently manages air intake without forced induction.
• Cylinders and Displacement: Housing 6 cylinders, the engine has a displacement of 401 cubic inches (6.6 L), offering substantial power for fieldwork.
• Bore and Stroke: With a square bore and stroke of 4.41 inches (112 mm), it achieves balanced performance.
• Rated RPM and Power Output: Operating at a rated 2300 RPM, it delivers 116 hp (86.1 kW) on the flywheel, though Nebraska rated it at 105.73 hp on the PTO.

In 1969, a turbocharged version would appear for the 9000 series tractors that debuted that year. It would deliver a stunning 131 horsepower on the PTO. The NA and turbocharged version would improve and reset for the ’72-’76 8600 and 9600, ’77-’79 8700 and 9700s, and the TW-20 that came in ‘79. In 1985, a road version was developed for use in trucks. Called the 6.6L, it was turbocharged and made 160-170 flywheel horsepower depending on application. It would be a staple until 1994, when it was phased out in North American service.

The 8000 Rowcrop came with a two-speed PTO, Cat II three-point hitch and a standard drawbar. Standard on the All-Purpose tractor and optional on the Rowcrops was a wide-spring drawbar that swung 17″ to each side of center. The power-adjust rear wheels opened the rear track from 60 to 97 inches and these tractors were ready for duals. The Rowcrops had either 34- or 38-inch-diameter wheels and the All-Purpose used 30- or 34-inchers.

Transmission Specifications

• Type: Gear type transmission, adept at transferring power smoothly.
• Forward and Reverse Gears: Equipped with 8 forward gears and 2 reverse gears, it offers versatility in movement and operation.

Drivetrain Specifications

• Chassis and Drive Type: Designed with a 4×2 2WD chassis, embodying a conventional yet effective configuration.
• Steering and Brake Type: Features power steering for ease of handling and differential hydraulic wet disc brakes for reliable stopping power.

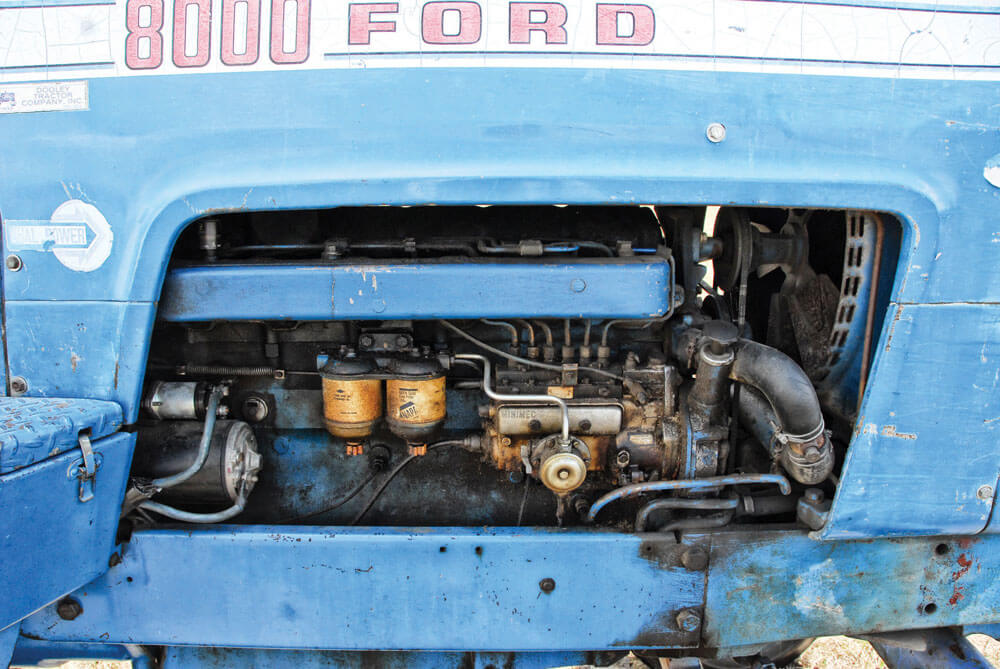

The Ford 401 ci six was square, with the same bore and stroke dimensions, which is unusual in the diesel world. It was a direct-injected, seven-main-bearing, parent-bore engine. According to most sources, in the early days it was built both in the Cleveland Engine Plant and in Basildon, England. Later it was built only in Basildon. Some regard the lack of sleeves as a weak link. Maybe it was, but you could bore it four times and then install dry sleeves. Other than that, they didn’t have any particular weak links and made about 117 hp on the flywheel. In this era, Simms/Minimec injection pumps were used. The turbo version made about 160 on the flywheel, with torque in the 375-lbs-ft range at 1600 rpm. In 1985, they designed a truck version of the engine and also stroked it to 7.8L. Both the 6.6L and 7.8L were turbocharged and, with many modifications, saw extensive use in Ford trucks, especially the B-Series school bus chassis. In that guise, you saw up to 170 hp and 402 lbs-ft. The 7.8L cranked out up to 240 hp and 606 lbs-ft.”

What are the general specifications of the Ford 8000 tractor’s engine, including manufacturer, cooling type, and induction type?

“The 8000 was largely developed on a clean sheet of paper, and the new 401-cubic-inch, direct-injected inline six that powered it was too. While it was patterned in many ways on Ford’s diesel engine thinking of the day, and shared some design characteristics with earlier Ford diesels, it was quite a different engine than the 242 ci Dorset engine that had powered the 6000. Displacing 401 cubic inches from a square 4.40″ X 4.40″ bore and stroke in naturally aspirated (NA) agricultural use, it made about 117 hp on the flywheel at a low, ag-friendly 2300 rpm, and Nebraska rated it at 105.73 hp on the PTO.

Engine Specifications

• Manufacturer: Ford
• Model: Ford
• Cooling Type: Liquid-cooled
• Cylinder Orientation: Inline
• Fuel Type: Diesel
• Induction Type: Naturally aspirated
• Cylinders: 6
• Displacement: 401 ci (6.6 L)
• Bore and Stroke: 4.41 in (112.0 mm) each
• Rated RPM: 2300
• Power Output: 116 hp (86.1 kW)

These specifications highlight the innovative design and robust performance of the engine, underscoring its role in advancing agricultural machinery at the time. With its liquid-cooled system and diesel fuel type, the engine was built for durability and efficiency, essential for the demanding tasks of farming. The naturally aspirated induction provided reliable power, while the inline six-cylinder design ensured smooth operation.”

What type of transmission system does the Ford 8000 tractor use, and how many forward and reverse gears does it have?

The Ford 8000 tractor boasts a robust gear-type transmission, providing operators with 8 forward gears and 2 reverse gears, making it versatile for various agricultural tasks. This setup ensures that farmers have plenty of options, whether they’re plowing fields or transporting loads.

In addition to its standard transmission, the 8000 and 9000 models also offer Ford’s Dual-Power system. Call it a partial power shift or a torque amplifier… they both fit. This innovative system enhances the tractor’s capabilities by splitting the gears, effectively transforming the typical four-speed transmission into a 16-speed system that allows for gear splitting in each range. With these options, operators can optimize performance and efficiency across different terrains and workloads.

How many reverse gears does the tractor have?

There are two reverse gears available in the tractor’s transmission system.

How many forward gears are available in the tractor?

The tractor is equipped with eight forward gears.

What type of transmission does the tractor utilize?

The tractor features a transmission system based on gears.

How does the Ford 8000 tractor’s power output compare to similar row crop tractors?

“The 8000 was largely developed on a clean sheet of paper, and the new 401-cubic-inch, direct-injected inline six that powered it was too. While it was patterned in many ways on Ford’s diesel engine thinking of the day, and shared some design characteristics with earlier Ford diesels, it was quite a different engine than the 242 ci Dorset engine that had powered the 6000. Displacing 401 cubic inches from a square 4.40″ X 4.40″ bore and stroke in naturally aspirated (NA) agricultural use, it made about 117 hp on the flywheel at a low, ag-friendly 2300 rpm, and Nebraska rated it at 105.73 hp on the PTO.

Power Comparison

When it comes to power output, the Ford 8000 stands as a robust contender in the realm of row crop tractors. Its power is rated as average, surpassing 34% of similar models within the category. This positions the 8000 as a solid choice for those seeking dependable performance in agricultural tasks.

Performance Insights

The combination of its innovative engine design and competitive power output ensures that the Ford 8000 offers both reliability and efficiency. This balance makes it an appealing option for farmers looking to maximize productivity without compromising on the quality of their equipment.”

What is the relative standing or ranking of the Ford 8000’s power output among its peers?

The Ford 8000 has a power output that is higher than 34% of comparable row crop tractors, indicating its position is better than about one-third of its peers in terms of power.

How does the power output of the Ford 8000 compare to other row crop tractors?

The Ford 8000’s power output is considered average when compared to other row crop tractors.

What is the engine rated RPM of the Ford 8000, and how does it compare to similar tractors?

Displacing 401 cubic inches from a square 4.40″ X 4.40″ bore and stroke in naturally aspirated (NA) agricultural use, it made about 117 hp on the flywheel at a low, ag-friendly 2300 rpm, and Nebraska rated it at 105.73 hp on the PTO.

In 1969, a turbocharged version would appear for the 9000 series tractors that debuted that year. It would deliver a stunning 131 horsepower on the PTO.

Engine Rated RPM: Comparative Insights

The Ford 8000’s engine rated RPM stands out in the field of row crop tractors. Its RPM performance is above average, surpassing 83% of similar tractors in the industry. This distinction places it among the top performers, ensuring efficient and reliable operation during demanding agricultural tasks.

Contextual RPM Data

Across a database of over 1,000 tractors, the Ford 8000’s engine rated RPM not only highlights its capability but also underscores its competitive edge. Such a performance metric is critical for farmers and agricultural professionals who prioritize both power and efficiency in their equipment. By offering a comprehensive view of how the Ford 8000 measures up, users can appreciate its robust engineering and operational prowess.

What is the scope or basis of the comparison?

The comparison is based on data from a database containing over 1,000 tractors.

How does the Engine Rated RPM of the Ford 8000 compare to similar row crop tractors?

It surpasses the rated RPM of 83% of comparable row crop tractors.

What is the Engine Rated RPM of the Ford 8000?

The engine rated RPM for the Ford 8000 is rated as above average.
