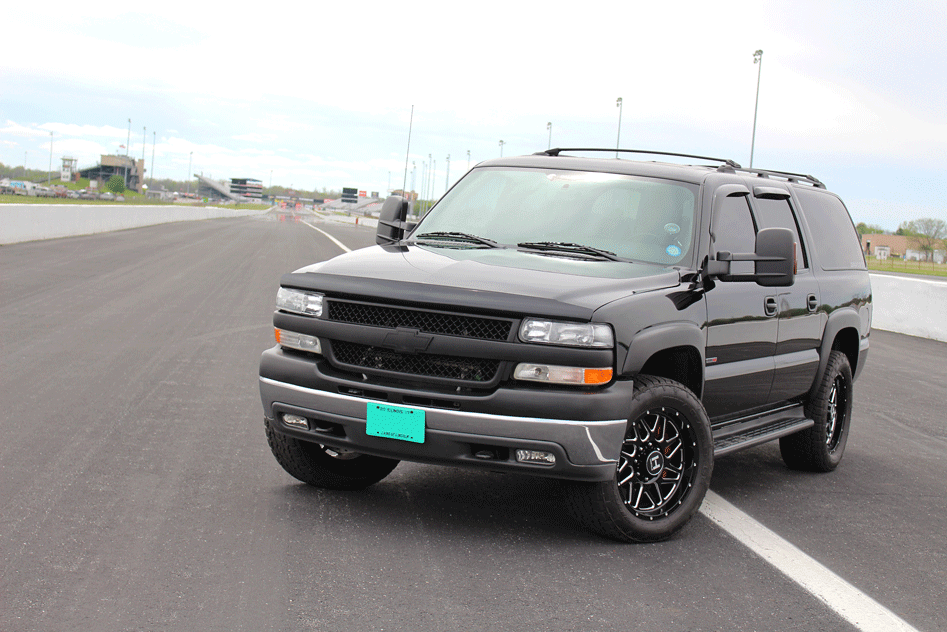

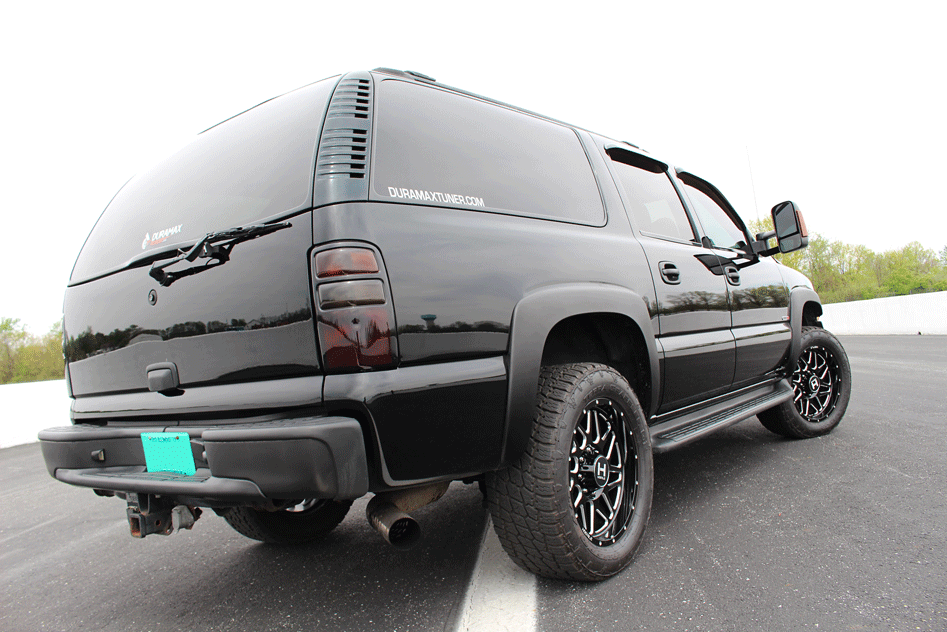

Up next Toyota and Isuzu End 12-year Diesel Collaboration Published on August 13, 2018 Author Mike McGlothlin Tags Chevrolet, Chevy, Chevy Diesel, CP3 Pump, diesel engine, diesel trucks, diesel world, dmax, Duramax, DW, ECM, Exhuast Housing, general motors, GM, gm diesel, horsepower, Intercooler, LBZ, lbz duramax, TCM, torque, transmission, Tuned Diesels, turbo, Turbocharged, turbocharger, Turbodiesel, Share article Facebook 0 Twitter 0 Mail 0 DuramaxTuner’s Corvette Killer: 1,050-HP Suburban Super SUV What do you do when the bar for streetable horsepower keeps moving higher and higher? You stay ahead of it by building a 1,050-hp daily driver. At least that’s what Nick Priegnitz of DuramaxTuner.com did. But Nick had something other than a run-of-the-mill Duramax-powered pickup in mind when he set out to build the ultimate daily—instead, he would do it with a ¾-ton Suburban. You know, in case the rest of the family ever wanted to know what four-digit horsepower feels like. To cope with the stresses imposed by roughly 1,200-hp at the crank, the LBZ-based Duramax in Nick Priegnitz’s ’04 Suburban benefits from a host of proven parts. The reinforcements begin with a girdle tying all the main caps together, along with ARP main studs, Carrillo connecting rods, Mahle Motorsport pistons, and an alternate firing order cam. The factory pushrods and stock-size valves were retained, albeit with the addition of beehive springs. ARP studs keep the heads anchored to the block. The built Duramax takes its first breaths through a BorgWarner S488 SX-E, which serves as the atmospheric charger (low-pressure) in the truck’s compound turbo arrangement. The 88mm unit has been lauded for its impressive flow numbers (a whopping 160 lbs/minute) and this particular version sports a 1.15 A/R exhaust housing with the 96mm turbine wheel. The pedestal, intercooler piping, downpipe, and fabricated-aluminum overflow tank came from Wehrli Custom Fabrication. One of the fundamental elements in the Suburban’s great drivability is the Stealth 64 VVT in the valley. Made by DuramaxTuner, the lighting-quick, factory-based Garrett charger sports a billet 63.5mm compressor wheel, a high-flow turbine wheel, and retains the variable geometry functionality that makes ’04.5-10 GM trucks so responsive. In conjunction with the S488 SX-E, the compounds produce more than 75 psi of boost at full tilt. A FASS 150gph Titanium fuel system satisfies the low-pressure supply needs of a street series 14mm stroker CP3 from Exergy Performance (which is mounted in place of the factory injection pump). Once through the 14mm CP3, fuel makes its way to a set of 150% over injectors, also from Exergy. For efficient power transfer, one of DuramaxTuner’s DT 1000 Allison transmissions is employed. In addition to valve body and pump modifications, the six-speed automatic was treated to a triple-disc billet stator converter from Goerend Transmission, a SunCoast GMax 6-Pac kit, billet input and output shafts, and a billet C2 hub and P2 planetary. To ensure the C3 clutches receive adequate cooling, a set of Goerend Transmission’s cast-aluminum PTO covers are also utilized. As a household name in the Duramax tuning segment, Priegnitz worked with the Suburban’s parts combination until it not only cleared 1,000-hp on the dyno, but also drove like a near-stock truck. Five custom ECM calibrations are available on the fly thanks to a DSP5 switch mounted next to the steering column. With just 115,000 miles on the clock, the Suburban’s leather interior is exceptionally clean for a 13-year-old vehicle. As for the 120mph speedometer, it can be buried in less than 11 seconds. A CTS2 monitor from Edge Products is used to keep an eye on the ’Burb’s powertrain. Some key vitals Priegnitz likes to oversee include rail pressure, main injection timing, EGT, engine coolant temp, high-pressure turbo vane position, and overall boost. Four Nitto Terra Grappler G2s measuring 305/50R20 provide all-terrain grip and mount on 20×10 Hostile Sprocket wheels for a subtle appearance—but one that completes the SUV’s black-on-black look. A TC6R Big Brake kit from Wilwood ensures the Suburban can be brought to a halt quickly. With compound turbos producing in excess of 75 psi of boost, 1,050-rwhp on tap, and seating for seven, Priegnitz’s Suburban is the ultimate road trip vehicle. In fact, it’s routinely used as the company car pool vehicle (imagine that) for trips to industry events and tradeshows. So far, the Suburban has run a mid-11-second elapsed time in the quarter-mile—but at a horsepower-indicative 125 mph. With a hard launch and adequate traction, it could easily go 10s. Not bad for a family wagon! Built as a demo vehicle, the premise was to highlight how all the parts in the DuramaxTuner catalog could be used to not only produce 1,000 horsepower, but do so in a refined and 100-percent drivable fashion. Originally equipped with an 8.1L big-block, the ’04 Suburban was converted to Duramax power by Duraburb Inc of Apopka, Florida prior to making the trip north to Priegnitz’s facility in Illinois. Built LBZ & Plenty of Fuel Under the hood sits an LBZ-based Duramax that’s been fitted with a girdle, ARP main studs, Carrillo rods, oval bowl Mahle Motorsport pistons, and an alternate fi ring order camshaft. The factory heads are equipped with beehive valve springs and anchor to the block via ARP head studs. For fuel, a 14mm stroker CP3 from Exergy Performance is employed, along with a healthy sized set of 150% over injectors. Ample fuel supply is provided by a 150-gph Titanium Series FASS system.Subscribe Our Weekly Newsletter Properly Spec’d Compounds As with any high-horsepower, street-friendly build, big fuel calls for big air—and a sizeable compound turbo arrangement exists in order to accomplish this. One of BorgWarner’s new, highly acclaimed S488 SX-E chargers serves as the atmospheric unit, while DuramaxTuner’s Stealth 64 VVT provides quick response and mounts in the factory location in the valley. The pedestal, intercooler piping, downpipe, and fabricated coolant overflow tank are Wehrli Custom Fabrication pieces, while the up-pipes and exhaust manifolds were sourced from ProFab Performance. One Tough Allison In order to piece together an Allison that was both street-friendly and competition-ready, Priegnitz and the folks at DuramaxTuner hand-picked all the parts that reside in the Suburban’s DT 1000 transmission. For torque transfer, a triple-disc converter from Goerend Transmission—complete with a billet stator—is employed. Added holding capacity comes by way of the clutches, frictions, and steels found in a SunCoast GMax 6-Pac kit. The input shaft, output shaft, C2 hub, and P2 planetary are all billet, and the pump and valve body are modified to provide more pressure. Finally, the C3 clutches receive dedicated cooling thanks to a pair of cast-aluminum PTO covers from Goerend Transmission. EFI Live by DuramaxTuner As you might’ve guessed, Priegnitz handled the ECM and TCM calibrating, which helps tie every modification together. Precise tweaks to the injection system, boost tables, and the transmission’s shift strategy make for a well-mannered monster on the street. Even with the 14mm CP3 and 150% over injectors, smoke is minimal, the compound turbo arrangement performs well throughout the entire rpm range, and the Allison’s shifts are firm but not harsh. Corvette-Eating, Economical Commuter Without a doubt, the perpetual technological advancements taking place within the diesel industry right now helped drive this build. Thanks to a variable geometry high-pressure turbo able to light things off quickly, an obscene amount of air being flowed up top by the BorgWarner S488 SX-E, arguably the best transmission components you can buy residing in the Allison, and a high-volume fuel system coupled with spot-on EFI Live tuning, Priegnitz’s Suburban pushes the term “daily driver” into new territory. Any time a vehicle has the ability to trap 125 mph in the quarter-mile yet glean 20 mpg out of highway trips, pull a trailer, and be relied upon day-in and day-out, it’s proof that you can still have your cake and eat it too in the diesel segment. [divider]SPECIFICATIONS[/divider] OWNER: Nick Priegnitz HOMETOWN: Crystal Lake, IL ODOMETER: 115,000 miles ENGINE: 6.6L LBZ Duramax with girdle, ARP main studs, Carrillo rods, Mahle Motorsport pistons, alternate firing order camshaft, beehive valve springs, ARP head studs FUEL: Exergy Performance 150% over injectors, Exergy Performance Street Series 14mm CP3, FASS Titanium Series 150gph fuel system AIR: Compound turbo arrangement with BorgWarner S488 SX-E atmosphere charger, DuramaxTuner Stealth 64 VVT in valley, Wehrli Custom Fabrication intercooler piping, pedestal, downpipe, and coolant reservoir, ProFab Performance exhaust manifolds and up-pipes, BD Diesel intercooler TUNING: DuramaxTuner EFI Live via DSP5 switch TRANSMISSION: Duramax Tuner DT 1000 six-speed Allison with Goerend Transmission triple-disc (billet stator) converter, SunCoast GMax 6-Pac clutch kit, billet-steel input shaft, output shaft, C2 hub and P2 planetary, Goerend Transmission cast-aluminum PTO covers HORSEPOWER: 1,050-rwhp (dyno) TIRES: 305/50R20 Nitto Terra Grappler G2 WHEELS: 20×10-inch Hostile Sprocket AXLES: 4.10 ring and pinion STEERING/SUSPENSION: DMAX Store Stage 3 Ultimate Front End Package with Kryptonite tie rods, solid center link, idler and pitman supports, and Xtreme idler support frame gusset Total 0 Shares Share 0 Tweet 0 Pin it 0 Share 0
