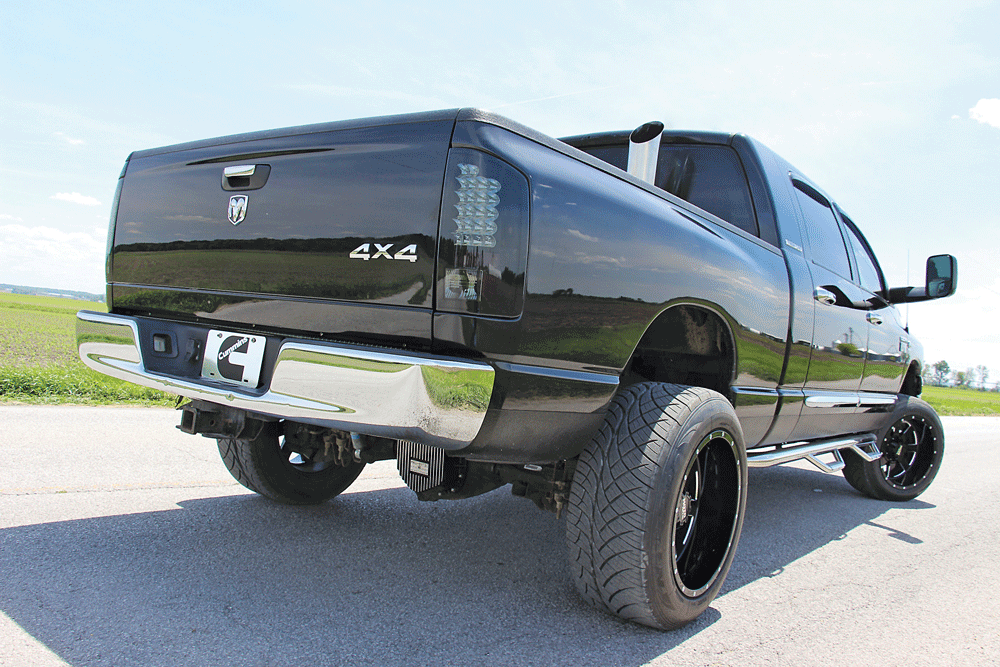

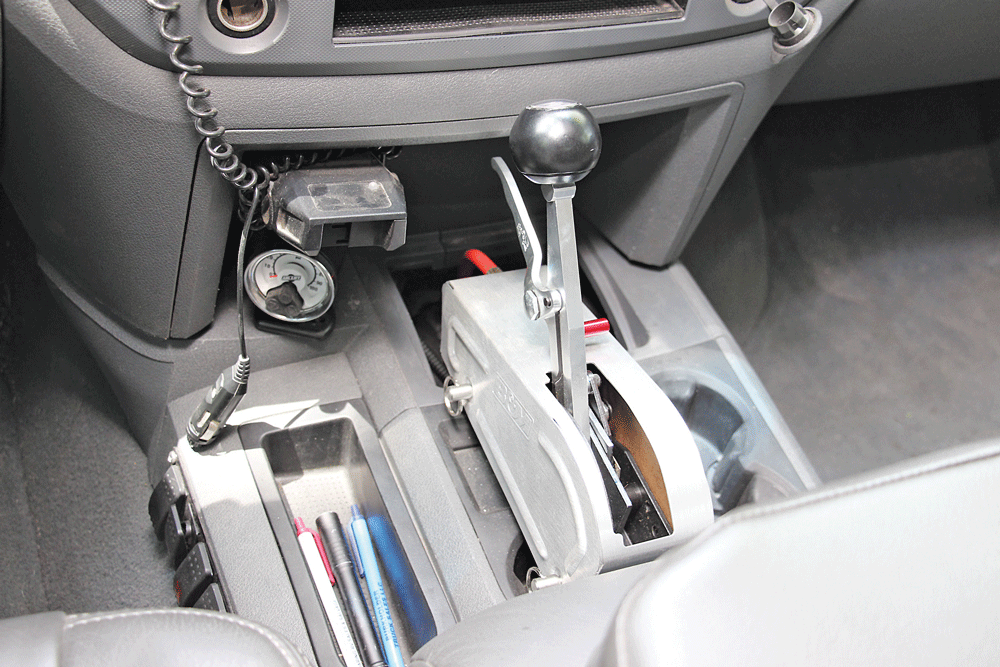

Up next Ford Leads in U.S. Assembly and Sales: A Made in America Success Story Published on September 25, 2023 Author Mike McGlothlin Tags camshaft, Cummins, Cummins Engine, Diesel, diesel engine, diesel performance, diesel power, Diesel Truck, diesel world, Dodge, Dodge Diesel, Dodge Ram, DW, Engine Components, Engine Modifications, Engine Technology, Exhaust System, Floor Shifter, fuel system, horsepower, pistons, Ram, torque, turbocharger, Valve Springs, Share article Facebook 0 Twitter 0 Mail 0 A Wicked 1,180 HP Mega Cab While it’s true that achieving horsepower is addicting and that you can never have enough, most enthusiasts—either voluntarily or involuntarily—draw the line at some point. But then, there are diesel heads like Brett Jones. In just four years, he’s outgrown a 650-hp setup, an 800-hp combo, the 940-hp mark and now owns a truck with almost 1,200 hp. Never Enough With the family cattle farm (in addition to being a full-time union electrician), Brett wanted a Ram with Cummins power under the hood; he was also fond of manual transmissions, so when he located this ’07 Mega Cab a few years back, and it was equipped with a G56 six-speed, plans for a simple family vehicle were left behind. Early Modifications Modifications began with an S475 over-stock compound turbocharger arrangement, head studs, fuel system and clutch upgrade. After living in the 650-hp range for a bit, the hunger for more power led to more fuel, which brought the truck up to the 800-hp mark. Soon after, however, the factory G56 gearbox met its fate. Brett decided to cryogenically treat his next G56 and realized it was an opportune time to reinforce the bottom end before he pushed things any further.Subscribe Our Weekly Newsletter “1,181 hp and 1,647 lb-ft of torque at the rear wheels” With a trip up to Midwest Truck Products in Cantril, Iowa, a plan was devised to build a competition-ready 5.9L on a reasonable budget. A set of balanced 12-valve rods got the go-ahead, along with ARP main studs and a Gorilla girdle from Industrial Injection. Cast-aluminum Mahle pistons, sized 0.020-inch over, thermal coated up top and hit with dry film lubricant on the skirts, got the nod as well. The last order of business in the block was the addition of Midwest’s Stage 2 camshaft in place of the factory unit. Built by Midwest Truck Products in Cantril, Iowa, the 5.9L Cummins in Brett Jones’ ’07 Dodge 2500 is currently producing 1,181 hp at the rear tires. The common rail’s bottom end benefits from a Gorilla girdle, ARP main studs, balanced 12-valve rods, and coated 0.020-inch over Mahle cast aluminum pistons. An O-ringed head fitted with oversize valves, 110-pound valve springs, chromoly push rods, and ported to the hilt is anchored to the block with A1 Technology H11 head studs. Big power calls for big turbos, so after building the engine, the guys at Midwest Truck Products sized a pair of S400-based BorgWarner chargers and fabricated all of the appropriate plumbing. The atmosphere turbo features a billet 84mm compressor wheel, the common 96mm turbine wheel, and 1.32 A/R exhaust housing and utilizes a T6 flange. The manifold charger is comprised of a 64mm billet compressor wheel, 83mm turbine wheel, .90 A/R exhaust housing, and mounts to an ATS T4 exhaust manifold. To ensure the atmospheric turbo makes its fair share of boost, a 50mm JGS Precision external wastegate routes exhaust gasses into the S484 to drive it harder under wide open throttle. The S484/S464 compound arrangement makes 75 to 80psi of boost on the street. Both the block and head were cut to accept O-rings for utmost combustion sealing and street longevity. The head was worked over by Premier Engine Design, and it was ported as far as a common-rail head can be and still retained water jackets. From there, the head was fitted with oversize valves and 110-pound valve springs, utilizing a 24-valve style head gasket and fastening to the block via 12mm H11 studs from A1 Technologies. Compounds and More Fuel Producing 80psi of boost is a set of S400 compound turbochargers built by Midwest Truck Products. Both turbos feature billet compressor wheels, with the manifold unit getting a 64mm and the atmospheric charger an 84mm. An external wastegate on the exhaust manifold feeds the S484 for a harder drive rather than venting to the atmosphere. Fueling mods initially included a set of 100-percent over injectors and a 12mm CP3 from Exergy Performance. Out of a reinforced BD Diesel intercooler, a high-flowing side-draft intake manifold from Joker Fabrication directs 80 pounds of boost into the ported common-rail head. This photo was taken prior to the truck being fitted with a second, belt-driven CP3. The latter combination of parts yielded 936 hp on the chassis dyno. Then, a set of 200-percent over Exergy Performance injectors, a Firepunk Diesel 48RE automatic, a 200-gph AirDog fuel system, and a second CP3 was added, and as you can imagine—all hell broke loose in the power department. The truck now makes 1,181hp and 1,647 lb-ft of torque at the rear wheels. Tying all modifications together was left in the hands of Zach Fuller at StarLite Diesel. Through use of EFILive software and five tunes available via a CSP5 switch, Brett has a truck that makes incredible power, is street friendly, and can still knock down 16mpg on the highway. “Both the block and head were cut to accept O-rings” Thanks to a second CP3, Brett is able to take full advantage of the 200-percent over Exergy Performance injectors he’s running. A 12mm Exergy pump resides in the factory location. With the belt-driven Sportsman pump (also from Exergy) in the mix, more than 200 additional horses were gained over running just the 12mm unit. “I had the G56 internals cryo’d and was told it would hold 1,000 hp—but I knew I was eventually going to be making more than that.” —Brett Jones Originally equipped with the G56 six-speed manual, Brett knew it was time to switch to an automatic once the truck was on the verge of making four-digit horsepower. So, he had the guys at Midwest Truck Products yank the hand-shaker and swap in what has become arguably the toughest Dodge transmission in the industry: a Comp 3 48RE from Firepunk Diesel. A B&M shifter makes good use of covering the hole left in the floor from the G56, and it bolted right up to the 48RE transmission’s case. Sending a steady stream of diesel to the CP3s is a 200-gph fuel system from AirDog. Brett keeps an eye on lift pump pressure via an Isspro fuel pressure gauge mounted along his A-pillar. Once in the cab, most folks immediately notice how nicely done the leather seats are (they were reupholstered by leatherseats.com). However, the first thing we spotted was the radar detector sitting on the dash. After all, if you own a truck that makes 80psi of boost, more than 1,100 hp, and is capable of running 10’s, you might want to know when the boys in blue are nearby. Beefing up the driveline is a 5-inch heavy-wall aluminum rear driveshaft from Columbus Joint & Clutch out of Grove City, Ohio. This serious piece of hardware incorporates 1550 series Spicer U-joints, which are typically only seen on rigs in the truck-pulling world. With the main goal behind the build being to make gobs of horsepower, a secondary mission was to minimize breakage. An Eaton ELocker up front and a Grizzly locker in the rear help maximize traction, while chromoly 38-spline axle shafts from Yukon strengthen the AAM 1150 out back. The front AAM 925 was also fitted with chromoly axle shafts. From top to bottom, Brett’s Dodge was built to handle the whopping amounts of horsepower and prevent catastrophic failure to the engine: Adding front and rear lockers, stronger axle shafts, 1550 series rear U-joints, and a Firepunk Diesel 48RE helps push out four-digit horsepower safely. While it’s never safe to say any 1,200 hp truck is indestructible, we’re pretty confident that Brett’s Mega Cab is as close as it gets. DW [divider]Specs: 2007 Dodge Ram 2500 Mega Cab[/divider] Owner: Brett Jones Hometown: Green Castle, Missouri Odometer: 131,000 miles Engine: 5.9L Cummins common-rail with 12-valve rods, coated 0.020 over pistons, Gorilla girdle, ARP main studs, Midwest Truck Products Stage 2 cam, O-ringed head and block, Premier Engine Design ported head with 110-lb valve springs, Trend Performance Stage 2 chromoly push rods, H11 head studs Fuel: 200-percent over Exergy Performance injectors, Exergy Performance Sportsman CP3 over an Exergy 12mm CP3, AirDog 200-gph fuel system Air: Midwest Truck Products compound billet S484/S464 turbos, 50mm JGS Precision wastegate, Joker Fabrication side draft intake manifold, reinforced BD intercooler Transmission: Firepunk Diesel Comp 3 48RE automatic with billet input, intermediate and output shafts, PCS stand-alone transmission controller, B&M floor shifter Tuning: StarLite Diesel EFILive via CSP5 switch Horsepower: 1,181 hp (dyno proven) Torque: 1,647 lb-ft (dyno proven) Tires: Nitto 420S 305/50R20 Wheels: 20×12 Moto Metal 962 Driveline Mods: Eaton ELocker (front), Grizzly locker (rear), Yukon front chromoly axle shafts (inner and outer), Yukon 38-spline rear axle shafts, Columbus Joint and Clutch 5-inch heavy-wall aluminum rear driveshaft with 1550 Spicer U-joints, traction bars Total 0 Shares Share 0 Tweet 0 Pin it 0 Share 0
